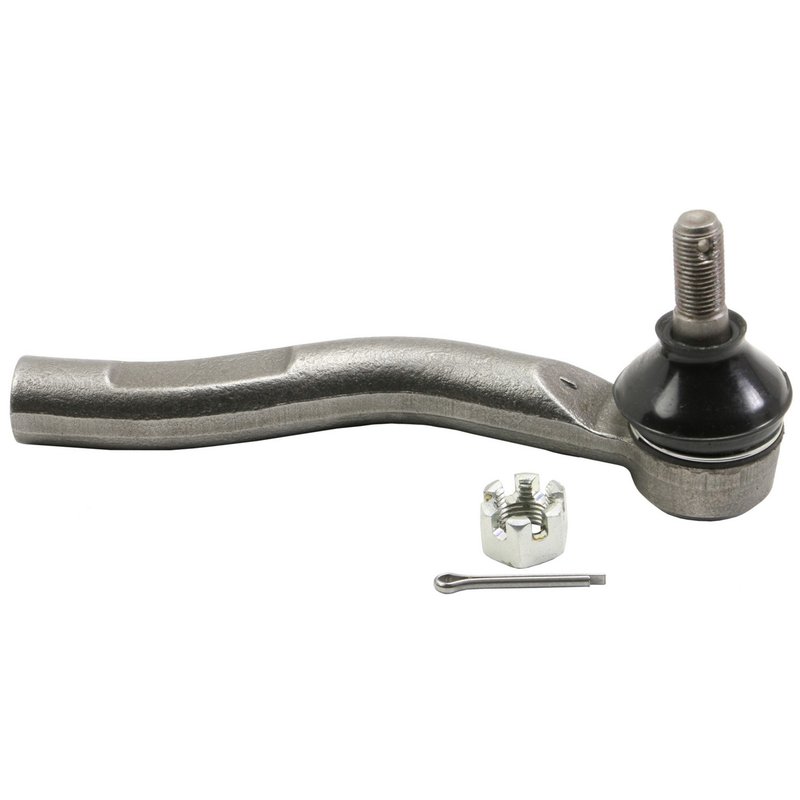

Moog ES800312 Steering Tie Rod End - Right Outer

Overview of Moog ES800312 Steering Tie Rod End

The Moog ES800312 steering tie rod end is designed specifically for Toyota Prius C and Yaris models, providing reliable steering performance. This straight-type tie rod end features female ends on both sides, engineered to meet precise thread specifications for a secure fit.

• Compatible with Toyota Prius C and Yaris
• Straight type steering tie rod end with female ends
• End 1 thread diameter: 14.0 mm with 1.5 pitch
• End 2 thread diameter: 12.0 mm with 1.3 pitch
• Length from stud center to end: 6.810 inches

Technical Details and Specifications

The Moog ES800312 features a straight design with female threads on both ends, ensuring compatibility with the steering gear and related components of Toyota Prius C and Yaris vehicles. End 1 has a thread diameter of 14.0 mm and a pitch of 1.5, while End 2 has a 12.0 mm diameter and a 1.3 pitch. The length from stud center to end measures 6.810 inches, providing the correct fitment for precise steering alignment and control.

Applications and Common Issues Addressed

This steering tie rod end is used to connect the steering rack to the steering knuckle, playing a critical role in vehicle handling and safety. It is compatible with the following Toyota models:

• Toyota Prius C
• Toyota Yaris

Common steering and suspension issues this part can help resolve include:

• Excessive play or looseness in steering
• Uneven tire wear due to misalignment
• Steering vibration or noise
• Difficulty maintaining directional control
• Worn or damaged tie rod ends causing poor handling

Installation Notes and Tips

When installing the Moog ES800312 tie rod end, ensure the correct thread engagement by matching the 14.0 mm x 1.5 pitch on End 1 and 12.0 mm x 1.3 pitch on End 2. Proper torque specifications should be followed to avoid premature wear or failure. It is recommended to perform a wheel alignment after installation to maintain optimal steering performance and tire longevity.

Quality Assurance and Warranty

Moog parts are engineered to meet or exceed OEM standards for durability and performance. The ES800312 steering tie rod end undergoes rigorous testing to ensure reliable fitment and function on Toyota Prius C and Yaris models. Moog typically offers a limited warranty covering defects in materials and workmanship, providing confidence in the product's quality and longevity.
