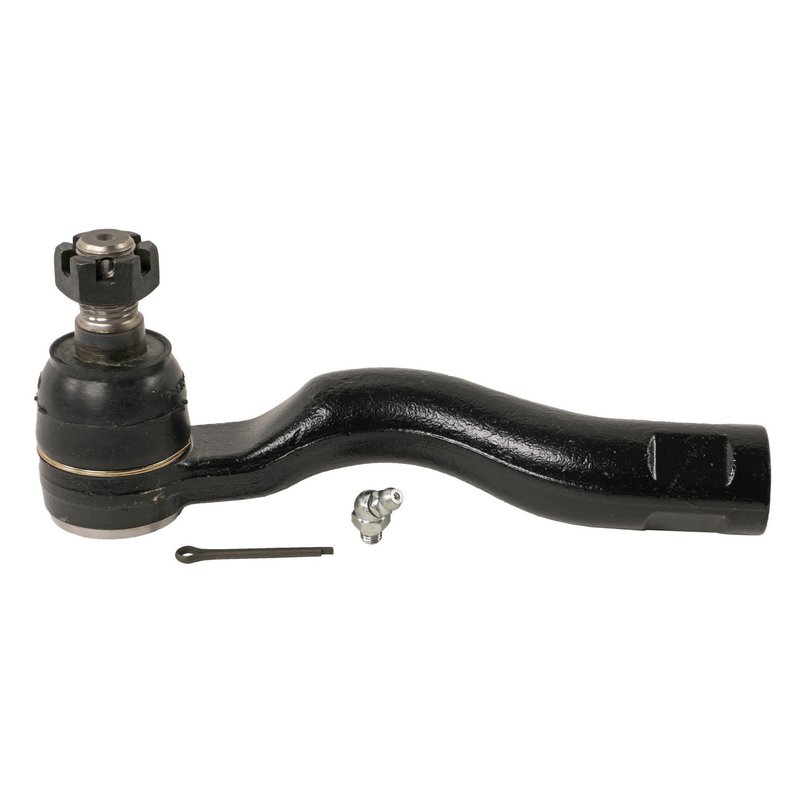

Moog ES800314 Steering Tie Rod End - Front Right Outer or Right Outer

Steering Tie Rod End Overview

MOOG ES800314 is a straight steering tie rod end for select Toyota Land Cruiser and Lexus LX570 applications. It is built for outer steering linkage service and uses female threaded ends for a direct replacement-style fit.

Key Features

• Straight tie rod end design for steering linkage service
• Female threaded ends for the specified application
• Thread sizes and stud length matched to the listed fitment
• Engineered with MOOG design enhancements that simplify replacement
• Cross-references Monroe Shocks & Struts 172286 and 182286 for the same application

Detailed Description

MOOG ES800314 is a steering tie rod end used in outer steering linkage positions on compatible Toyota Land Cruiser and Lexus LX570 models. The straight configuration, female end design, and specified thread diameters and pitches support accurate steering linkage service where the original part has worn, loosened, or developed play. This part number, ES800314, is associated with MOOG’s ongoing design updates that focus on longer service life and easier replacement. It also cross-references Monroe Shocks & Struts 172286 and 182286 for the same application.

For fitment, this part fits 2020-2021 Toyota Land Cruiser, front right outer; 2020 Lexus LX570, front right outer; 2013-2019 Lexus LX570, right outer; 2008-2011 Lexus LX570, right outer; 2013-2019 Toyota Land Cruiser, right outer; and 2008-2011 Toyota Land Cruiser, right outer. On these Toyota Land Cruiser and Lexus LX570 applications, ES800314 is used where the outer steering connection requires the listed thread and length specifications.

Common Issues It Can Address

• Steering looseness caused by wear in the outer tie rod end
• Clunking or play in the steering linkage
• Uneven steering response from a worn connection point
• Difficulty maintaining precise toe settings after alignment
• Replacement of a damaged or corroded steering end

Installation Notes and Tips

Verify thread direction, thread pitch, and overall length against the removed part before installation. The fitment notes indicate a simplified design for easier rack and pinion bellows kit installation on several applications. After installation, a professional wheel alignment is recommended to restore steering geometry.

Quality Assurance

MOOG is known for design enhancements that extend product life and simplify installation and replacement. Part number ES800314 reflects that engineering approach for steering service applications.
