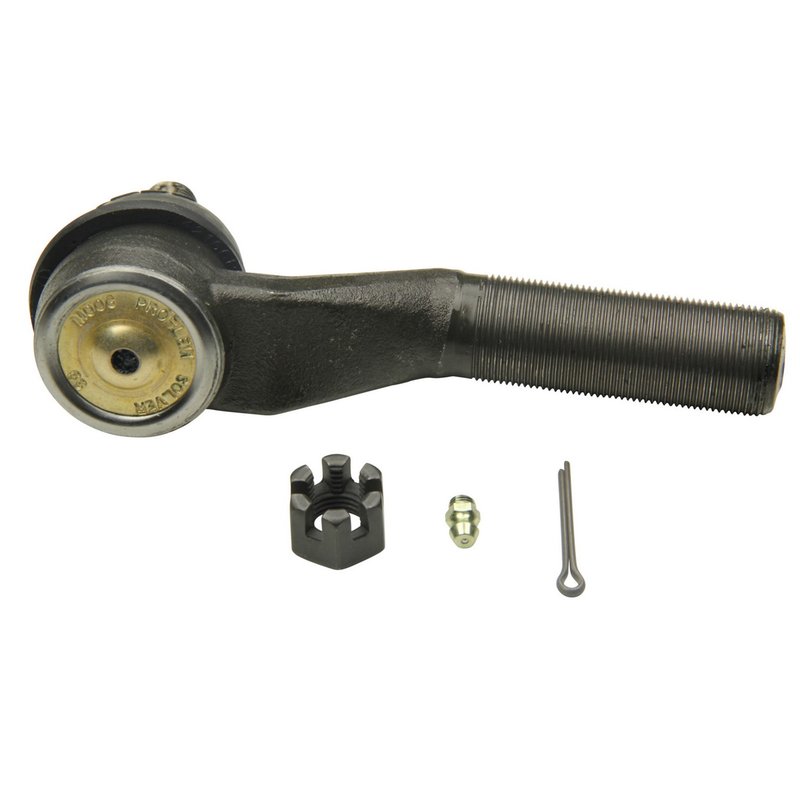

Moog ES800401 Steering Tie Rod End - Right Outer

Overview of Moog ES800401 Steering Tie Rod End

The Moog ES800401 steering tie rod end is designed for reliable steering performance on Ford E-150, E-250, and E-350 Super Duty models. This straight-type tie rod end features male threads on both ends, engineered to meet precise fitment requirements for these vehicles.

• Straight type steering tie rod end with male threads on both ends
• End 1 thread diameter: 1.000 inch with 18 threads per inch
• End 2 thread diameter: 14.0 mm with 1.5 thread pitch
• Length from stud center to end: 5.740 inches
• Compatible with Ford E-150, E-250, and E-350 Super Duty models

Detailed Product Description

The Moog ES800401 steering tie rod end is a critical component in the steering system, connecting the steering rack to the steering knuckle. Featuring a straight design with male threads on both ends, this part ensures a secure and precise fit. The end 1 side has a 1.000-inch thread diameter with 18 threads per inch, while the end 2 side has a 14.0 mm thread diameter and a 1.5 thread pitch, providing compatibility with specific Ford truck steering assemblies. The length from stud center to end measures 5.740 inches, matching OEM specifications for proper alignment and steering response.

Common Applications and Problem Resolution

• Replaces worn or damaged steering tie rod ends on Ford E-150, E-250, and E-350 Super Duty
• Addresses steering play or looseness issues
• Corrects uneven tire wear caused by faulty tie rod ends
• Improves steering stability and response
• Eliminates clunking noises during steering maneuvers

Installation Notes and Tips

When installing the Moog ES800401 tie rod end, ensure the vehicle is securely lifted and the front wheels are properly aligned. Use appropriate tools to remove the old tie rod end and avoid damaging the threads during installation. After installation, a professional wheel alignment is recommended to maintain proper steering geometry and tire wear.

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, ensuring durability and reliable performance. The ES800401 steering tie rod end undergoes rigorous quality control testing. Please refer to Moog's official warranty policy for specific coverage details.
