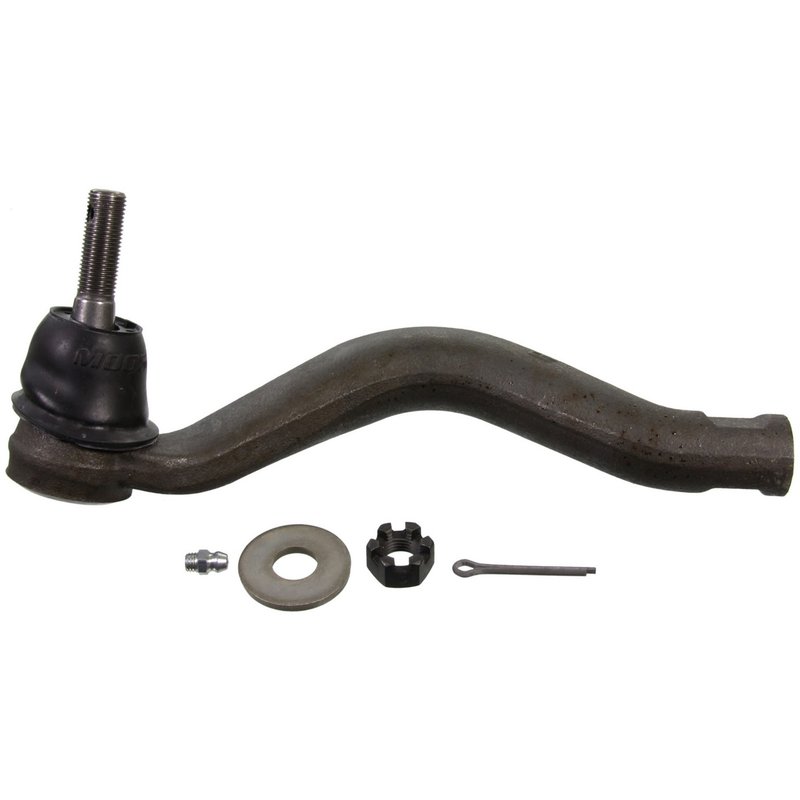

Moog ES800405 Steering Tie Rod End - Right Outer

Moog ES800405 Outer Tie Rod End

Moog ES800405 is an outer tie rod end for steering systems that need precise right-side front-end control. Built with female threaded ends and a bent design, it supports direct replacement service on select Lexus models, including Lexus GS350, IS300, IS350, RC300, RC350, IS250, and GS300 applications.

Key Features

• Outer tie rod end for steering linkage service
• Female end connections with clockwise thread direction on both ends
• Bent body style for application-specific steering geometry
• End 1 thread diameter: 14.0 mm
• End 2 thread diameter: 12.0 mm
• End 1 thread pitch: 1.5 mm
• End 2 thread pitch: 1.3 mm
• Length from stud center to end: 8.540 in.
• Moog ES800405 is backed by materials selection and testing focused on dependable steering performance

Detailed Description

Moog ES800405 is an outer tie rod end engineered for steering repair on select Lexus vehicles. The part uses female threaded connections at both ends, clockwise thread direction, and a bent configuration to match the steering linkage geometry required by the application. This makes it a direct-fit steering tie rod end for front right outer service on 2020-2024 Lexus RC300, 2020-2023 Lexus IS300, 2020-2021 Lexus RC350, 2020 Lexus GS350, and 2020 Lexus IS350, as well as right outer applications on earlier Lexus GS350, IS300, IS350, RC300, RC350, IS250, and GS300 models. The ES800405 part number is also useful when cross-checking replacement needs against OE-style steering service parts.

This part cross-references Beck/Arnley 101-6717 for the same application.

What It Helps Fix

• Loose or imprecise steering response
• Front-end play caused by worn tie rod end joints
• Uneven tire wear related to steering linkage wear
• Steering wheel wander or poor straight-line tracking
• Noisy or unstable steering feel during turning

Installation Notes and Tips

Verify thread direction, thread diameters, and overall length before installation. This ES800405 tie rod end is listed for front right outer or right outer positions depending on model year, so confirm the exact vehicle application before service. After installation, a professional wheel alignment is required to restore steering geometry and tire wear characteristics. For Lexus GS350, IS300, IS350, RC300, RC350, IS250, and GS300 steering repairs, match the replacement to the original side and position shown in the fitment data.

Quality Assurance

Moog backs this outer tie rod end with superior materials and rigorous testing to support reliable steering performance. MOOG problem-solving design features are used to help make installation straightforward and consistent with the intended application.
