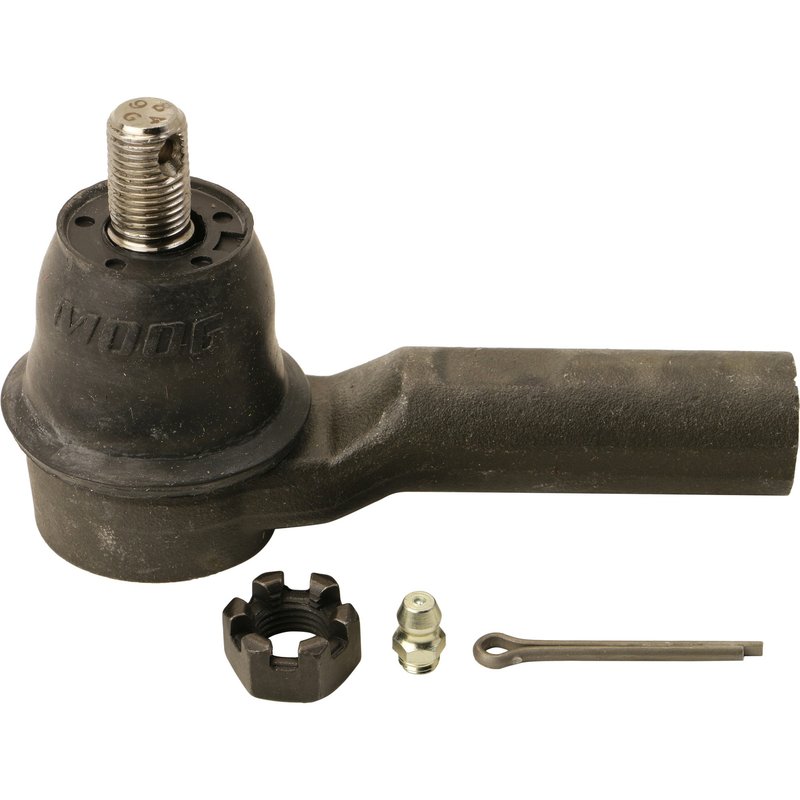

Moog ES800527 Steering Tie Rod End - Outer
MOOG ES800527 Outer Tie Rod End
MOOG ES800527 is an outer steering tie rod end built for direct replacement service on select Nissan Altima models. It combines a greaseable design, a dust boot, and OE-style thread specifications to support precise steering linkage repair on 2005-2006 Nissan Altima, outer applications.
Key Features
- Outer steering tie rod end for steering linkage service
- Greaseable design for routine lubrication maintenance
- Dust boot included to help protect the joint area
- Straight body style for OE-style fitment
- Female end configuration on both ends
- Thread details: 14.0 mm x 1.5 clockwise and 12.0 mm x 1.25 clockwise
- Stud center-to-end length: 3.700
Product Details
MOOG ES800527 is engineered as an outer tie rod end for steering systems that require accurate linkage geometry and dependable joint movement. The part number ES800527 is associated with 2005-2006 Nissan Altima outer steering service, and the OE-style dimensions help support proper thread engagement during replacement. MOOG uses superior materials and testing standards to deliver consistent performance, while problem-solving design features are aimed at making installation more straightforward. This part cross-references Dorman OE Solutions 534-929 for the same application.
Common Repair Symptoms
- Loose or vague steering feel
- Front-end play or wandering during driving
- Uneven tire wear linked to steering linkage wear
- Noise or clunking from the outer steering connection
- Visible wear at the tie rod end dust boot or joint area
Installation Notes
Verify thread direction, diameter, and pitch before installation to match the steering linkage on the vehicle. After replacing the outer tie rod end, perform a professional wheel alignment to restore steering geometry. Confirm fitment for 2005-2006 Nissan Altima, outer, before service begins. The part number ES800527 should be matched to the vehicle application and steering position listed above.
Quality Assurance
MOOG backs this steering tie rod end with materials selection and testing practices focused on reliable service life and consistent fit. The greaseable design and protective boot support routine maintenance and joint protection in steering applications.
| Brand | Moog |
|---|---|
| Part Number | ES800527 |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| Type | Straight |
| End 2 Thread Diameter | 12.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 3.700 |
| End 1 Thread Diameter | 14.0 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2006 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2005 | Nissan | Altima | Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
