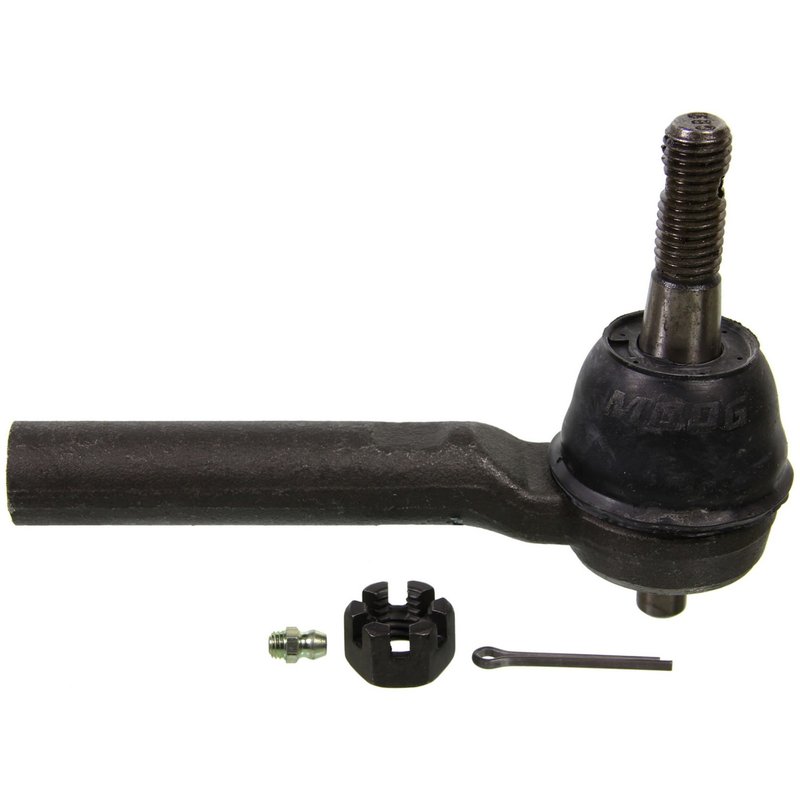

Moog ES800612 Steering Tie Rod End - Rear Right Outer

Moog ES800612 Outer Tie Rod End

Moog ES800612 is an outer tie rod end for rear right outer steering applications on select Chevrolet Silverado and GMC Sierra trucks with 4 wheel steering. Built with a straight body, female ends, and clockwise thread direction on both ends, it is specified for precise steering linkage service on the Silverado 1500 HD, Silverado 2500, Sierra 1500 HD, and Sierra 2500.

Key Features

• Outer tie rod end for steering linkage repair
• Straight design with female end connections
• End 1 thread diameter: 14.0 mm; thread pitch: 1.5; clockwise thread direction
• End 2 thread diameter: 14.0 mm; thread pitch: 2.0; clockwise thread direction
• Engineered for rear right outer placement on 4 wheel steering setups
• Moog ES800612 is backed by materials selection and testing focused on dependable service
• Includes a powdered-metal Gusher Bearing to help grease reach bearing surfaces

Detailed Description

Moog ES800612 outer tie rod end is a direct-fit steering component for 2002-2005 Chevrolet Silverado 1500 HD, 2002-2004 Chevrolet Silverado 2500, 2002-2005 GMC Sierra 1500 HD, and 2002-2004 GMC Sierra 2500 models equipped with 4 wheel steering. This part number is built around the specified female-to-female, straight configuration and the listed thread sizes to match the original steering geometry. For buyers searching for a Chevrolet Silverado 1500 HD rear right outer tie rod end or a GMC Sierra 2500 rear right outer steering tie rod end, ES800612 provides the application-specific fitment details needed for service work.

This part cross-references Mevotech Supreme MS50623 for the same application.

What It Helps Fix

• Loose or worn steering linkage at the rear right outer position
• Steering play that can affect directional control
• Clunking or knocking from worn tie rod end joints
• Uneven steering response caused by worn connection points
• Grease retention issues at the bearing surface in serviceable steering joints

Installation Notes

Verify the rear right outer position, 4 wheel steering configuration, and thread specifications before installation. Match the female ends, straight body style, and clockwise thread direction to the original part. After replacement, inspect alignment and steering operation to confirm proper linkage geometry on the Chevrolet Silverado and GMC Sierra application.

Quality Assurance

Moog states that this steering tie rod end is supported by superior materials and rigorous testing, with a design that includes a powdered-metal Gusher Bearing to help grease penetrate bearing surfaces. Part number ES800612 is intended for dependable steering service in the listed Silverado and Sierra applications.
