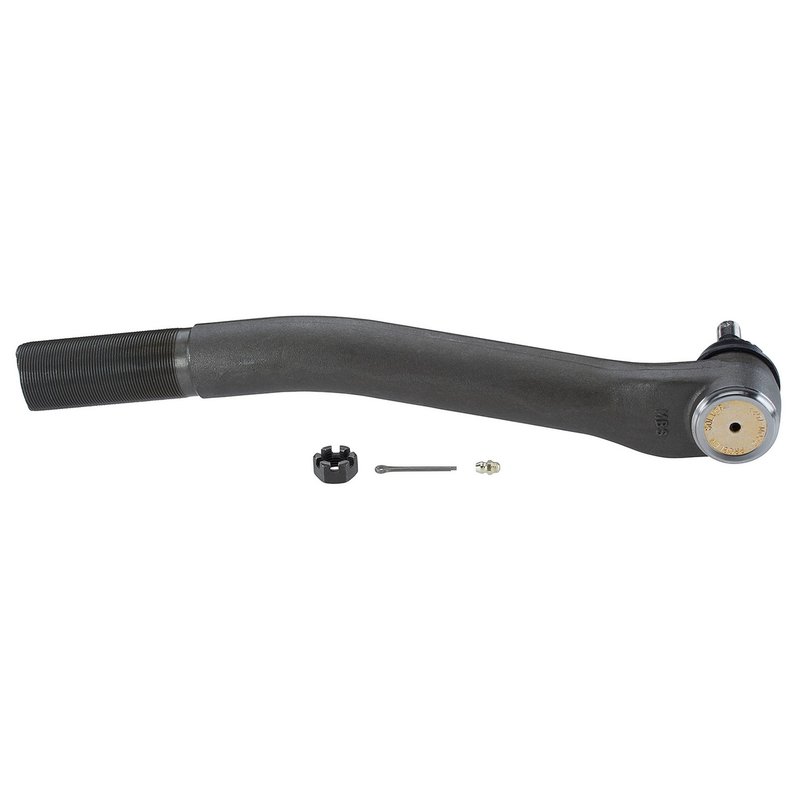

Moog ES800881 Steering Tie Rod End - Left Outer

Outer Tie Rod End for Ford Super Duty Steering

MOOG ES800881 is a straight outer steering tie rod end built for Ford Super Duty front-end service. It uses a male end 1 with 16 threads per inch and a male end 2 with a 14.0 mm thread diameter, 1.5 mm pitch, and clockwise thread direction for the specified applications.

Compatible With 2008-2022 Ford F-250 Super Duty and Ford F-350 Super Duty front left outer steering positions, this part supports precise steering linkage replacement on heavy-duty trucks. MOOG ES800881 is also a direct reference for common interchange numbers used in the same application.

Key Features

• Straight outer tie rod end for steering linkage repair
• Male-to-male thread configuration
• End 2 thread diameter: 14.0 mm
• End 2 thread pitch: 1.5 mm, clockwise thread direction
• End 1 threads per inch: 16
• Length stud center to end: 15.350
• Fits front left outer steering positions on select Ford Super Duty trucks
• MOOG part number ES800881 for catalog and service matching

Detailed Description

MOOG ES800881 outer tie rod end is engineered for the steering systems used on 2008-2022 Ford F-250 Super Duty and Ford F-350 Super Duty trucks in the listed front left outer positions. The straight design and specified thread dimensions help match the original steering linkage geometry during replacement. This part number is commonly searched as MOOG ES800881 for Ford F-350 Super Duty front left outer tie rod end and Ford F-250 Super Duty steering repair.

MOOG uses materials and testing standards aimed at consistent fit and dependable service life. The design also reflects MOOG problem-solving installation features that help reduce time during steering component replacement. This part cross-references Mevotech Supreme MES800881 for the same application.

What It Helps Fix

• Loose or imprecise steering feel at the front end
• Clunking or play from a worn outer tie rod end
• Uneven tire wear caused by steering linkage wear
• Steering wheel wander or poor on-center tracking
• Front left outer steering service on Ford F-250 Super Duty and Ford F-350 Super Duty trucks

Installation Notes and Tips

Verify the vehicle year, model, and steering position before installation. Confirm the thread direction and thread diameter match the existing steering linkage, especially on 2011-2016 Ford F-350 Super Duty and 2008-2010 Ford F-350 Super Duty wide track axle applications. After installation, perform a professional wheel alignment to restore steering geometry.

Quality Assurance

MOOG steering components are backed by material selection and testing practices intended to support consistent fit and performance in service. Use the part number ES800881 and the vehicle fitment details to confirm the correct replacement before installation.
