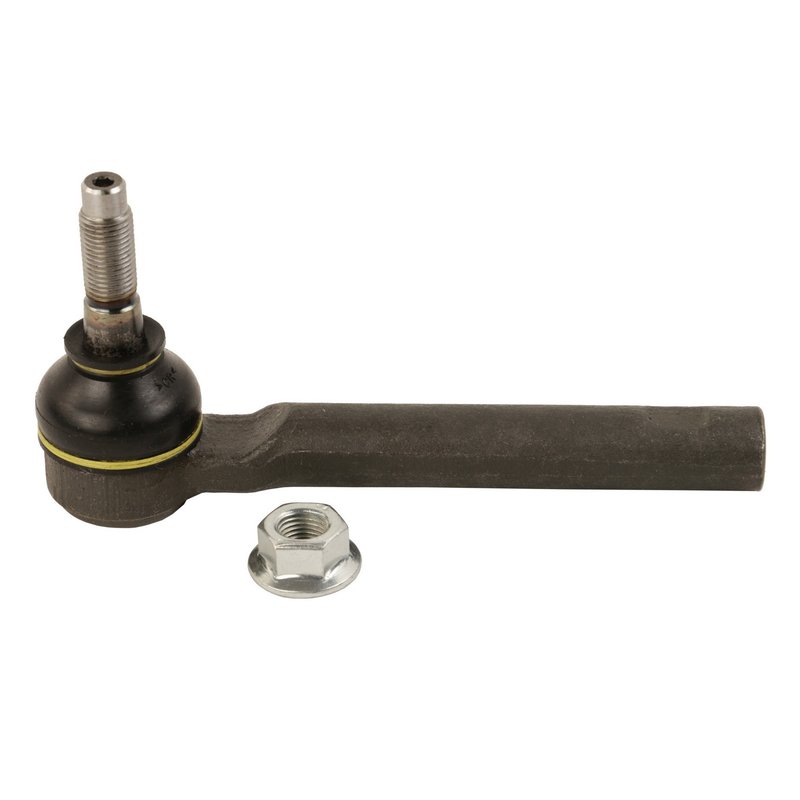

Moog ES801448 Steering Tie Rod End - Front Outer or Outer
| Brand | Moog ES801448 |
|---|---|
| Position | Outer and Front Outer |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Dust Boot Included | Yes |
| Type | Straight |
| Mounting Hardware Included | Yes |
| Grade Type | Premium |
| Greaseable | No |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Direction | Clockwise |
| Length Stud Center to End | 5.79 |
| End 1 Thread Diameter | 14.0 |
| End 1 Thread Pitch | 1.5 |
| End 2 Thread Diameter | 12.0 |
| End 2 Thread Pitch | 1.5 |
| Part Description | Steering tie rod end |
| Fits | Mazda · 6 vehicles |
Premium grade. Built with superior materials and rigorous testing for reliable performance.
Dust boot included. Helps protect the joint from dirt and debris.
Fast installation. Problem-solving design helps make installation hassle-free.
Cross-references Beck/Arnley 101-8444, Delphi TA6433 and Dorman - OE Solutions 544-337 for the same application. See all 8.
MOOG ES801448 Outer Tie Rod End
MOOG ES801448 is a premium steering tie rod end built for precise front-end steering response and dependable replacement performance. It is a direct-fit outer tie rod end for select Mazda CX-3 applications, including 2016-2019 Mazda CX-3 outer and 2020-2021 Mazda CX-3 front outer positions.
Key Features
- Premium-grade steering tie rod end for the outer steering linkage
- Female-to-male design with straight body style
- Dust boot included to help protect the joint area
- Mounting hardware included for installation convenience
- Clockwise thread direction on both ends
- Thread specifications: 14.0 mm x 1.5 on end 1 and 12.0 mm x 1.5 on end 2
- Stud center to end length: 5.79
- Non-greaseable design
Detailed Description
MOOG ES801448 is engineered as a steering tie rod end for the outer position in the steering system. It uses a female end 1 and male end 2 configuration, with a straight profile and included dust boot to help shield the joint from road contamination. The premium construction and tested materials support consistent steering feel in Mazda CX-3 front-end service work. This part cross-references Dorman - OE Solutions 544-337 for the same application.
For fitment-focused searches, this MOOG ES801448 outer tie rod end fits 2016-2019 Mazda CX-3, outer, and fits 2020-2021 Mazda CX-3, front outer. It is a practical OE-style replacement when servicing steering looseness or wear in the Mazda CX-3 front suspension and steering linkage.
Common Issues This Part Can Address
- Excessive steering play at the front wheels
- Clunking or looseness from worn outer tie rod joints
- Uneven toe settings caused by steering linkage wear
- Steering wheel wander or reduced directional stability
- Visible boot damage or contamination at the tie rod end
Installation Notes and Tips
Confirm thread direction, thread diameters, and overall length before installation. After replacing the outer tie rod end, perform a professional wheel alignment to restore toe settings and steering wheel position. Inspect the inner tie rod, boots, and related steering components at the same time to avoid repeat repairs. This part number, ES801448, is intended for the listed Mazda CX-3 applications only.
Quality Assurance
MOOG backs this steering component with superior materials and rigorous testing to support reliable service life and consistent fitment. ES801448 is part of MOOG’s problem-solving steering lineup, focused on straightforward installation and dependable replacement performance.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2021 | Mazda | CX-3 | Front Outer | — |
| 2020 | Mazda | CX-3 | Front Outer | — |
| 2019 | Mazda | CX-3 | Outer | — |
| 2018 | Mazda | CX-3 | Outer | — |
| 2017 | Mazda | CX-3 | Outer | — |
| 2016 | Mazda | CX-3 | Outer | — |
| No rows match your filter. | ||||
