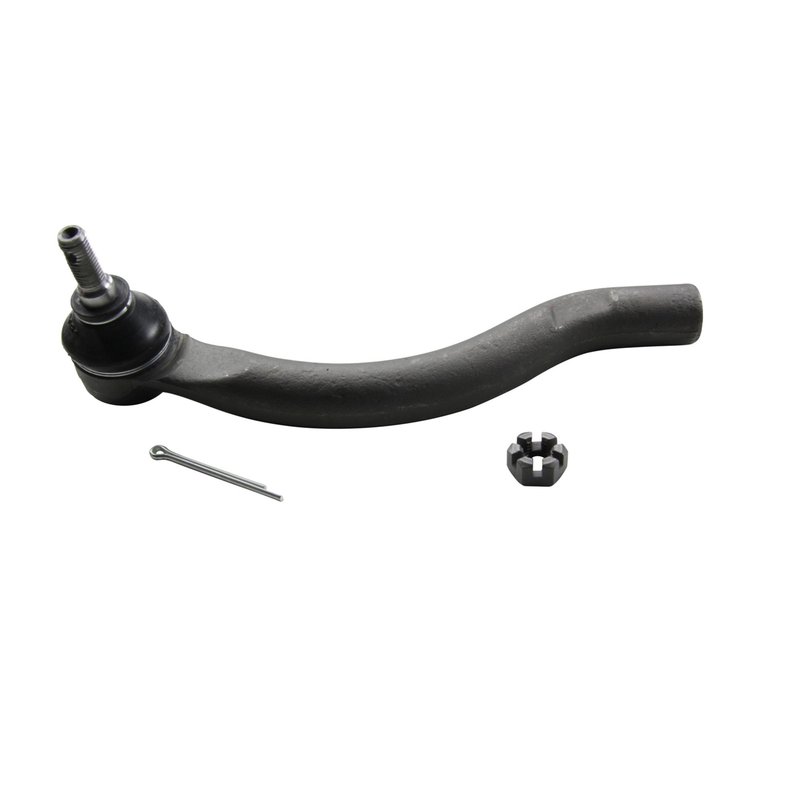

Moog ES80288 Steering Tie Rod End - Left Outer
| Brand | Moog ES80288 |
|---|---|
| Position | Left Outer |
| End 1 Gender | Female |
| End 2 Gender | Female |
| Dust Boot Included | Yes |
| End 2 Thread Diameter | 10.0 |
| Greaseable | Yes |
| End 1 Thread Direction | Clockwise |
| End 2 Thread Pitch | 1.25 |
| End 1 Thread Pitch | 1.5 |
| Length Stud Center to End | 7.990 |
| End 1 Thread Diameter | 14.0 |
| Fits | Acura and Honda · 10 vehicles |
Cross-references Centric Parts 612.40070, Mevotech Supreme MES80288 and MOOG Chassis Products ES80288 for the same application. See all 15.
Overview
MOOG ES80288 is an outer steering tie rod end built for direct replacement applications with greaseable serviceability and a dust boot for added protection. It is engineered for steering systems on select Acura TSX and Honda Accord models, with fitment listed for the left outer position.
Key Features
- Greaseable design for serviceable lubrication.
- Dust boot included to help protect internal components.
- Female threaded ends with clockwise and 1.5 mm / 1.25 mm pitch specifications.
- MOOG problem-solving design supports faster, less complicated installation.
- Part number ES80288 for accurate ordering and replacement matching.
Detailed Description
This MOOG steering tie rod end is designed for vehicles that require a left outer tie rod end with the listed thread and stud dimensions. The female end configuration, 14.0 mm thread diameter, 10.0 mm thread diameter, and 7.990-inch center-to-end length help match the original steering linkage geometry on compatible Acura TSX and Honda Accord applications. MOOG ES80288 is built with superior materials and tested for dependable steering performance, making it a practical OE-style replacement for worn steering linkage components. This part cross-references Centric Parts 612.40070 for the same application.
Used For
- Loose or imprecise steering response.
- Clunking or play from the outer steering linkage.
- Wear at the steering connection point.
- Restoring proper steering feel on Acura TSX and Honda Accord applications.
Installation Notes
Fits 2004-2008 Acura TSX, left outer. Fits 2003-2007 Honda Accord, left outer. Verify thread direction, thread pitch, and center-to-end length against the removed part before installation. Professional alignment is recommended after steering component replacement. Part number ES80288 should be matched to the vehicle application before service.
Quality Assurance
MOOG backs this steering component with rigorous testing and material standards aimed at consistent performance in steering service.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2008 | Acura | TSX | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2007 | Acura | TSX | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2007 | Honda | Accord | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2006 | Acura | TSX | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2006 | Honda | Accord | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2005 | Acura | TSX | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2005 | Honda | Accord | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2004 | Acura | TSX | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2004 | Honda | Accord | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2003 | Honda | Accord | Left Outer | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
