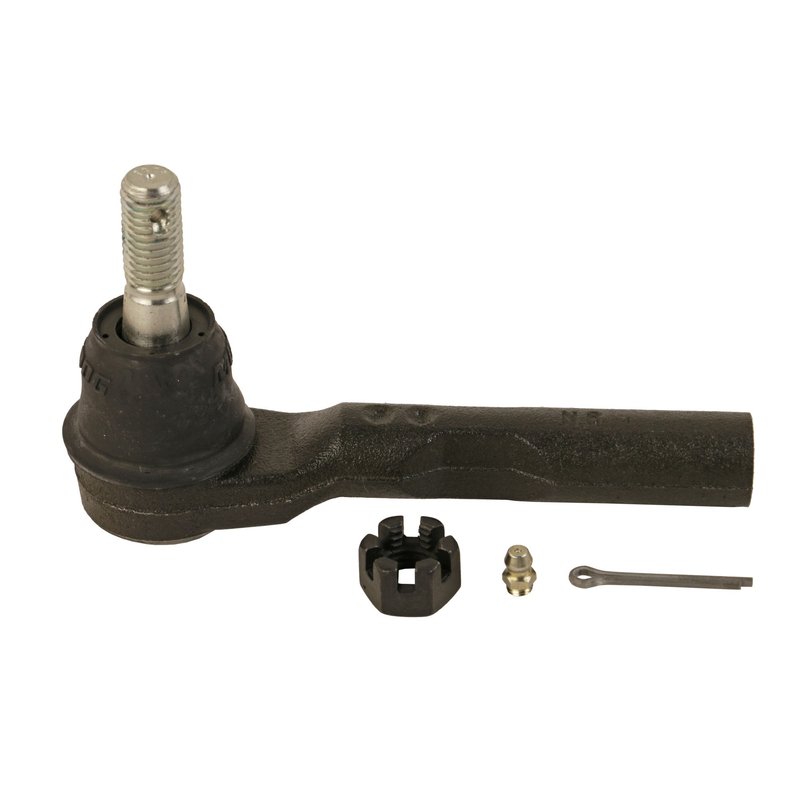

Moog ES80311 Steering Tie Rod End - Outer

Reliable Steering Tie Rod End for Chevrolet and GMC Trucks

The Moog ES80311 steering tie rod end is engineered to provide precise steering control and durability for Chevrolet Express 1500, Express 2500, GMC Savana 1500, and Savana 2500 models. Designed with both ends featuring female threads, this straight tie rod end ensures a secure fit and smooth operation.

• Compatible with Chevrolet Express 1500, Express 2500, GMC Savana 1500, and Savana 2500
• Both ends have female threads with 14.0 mm diameter
• Greaseable design for extended service life
• Includes dust boot to protect internal components
• Straight type tie rod end with precise thread pitch (1.5 and 2.0)
• Length from stud center to end measures 5.5 inches
• End 1 thread direction is clockwise for proper installation

Detailed Product Description

The Moog ES80311 steering tie rod end is a critical component in the steering system of select Chevrolet and GMC vans. Featuring a straight design with female threads on both ends, it offers a reliable connection between the steering linkage and the wheel assembly. The 14.0 mm thread diameter on both ends, combined with thread pitches of 1.5 on End 1 and 2.0 on End 2, ensures compatibility with factory specifications. The greaseable feature allows for routine maintenance, reducing wear and extending the part's lifespan. Additionally, the included dust boot protects the joint from dirt and moisture, helping maintain smooth steering performance over time.

Common Applications and Problem Solving

• Replaces worn or damaged tie rod ends causing steering play or looseness
• Addresses uneven tire wear due to misaligned steering components
• Eliminates clunking or knocking noises from the front suspension
• Restores proper steering response and vehicle handling
• Prevents premature failure caused by contamination with dust boot protection

Installation Notes and Tips

When installing the Moog ES80311 tie rod end, ensure the threads are clean and properly lubricated. The greaseable design allows for application of grease after installation, which helps maintain joint integrity. Verify the clockwise thread direction on End 1 for correct alignment. It is recommended to perform a wheel alignment after replacement to ensure optimal steering performance and tire wear.

Quality Assurance and Warranty

Moog parts are manufactured to meet or exceed OEM standards, providing reliable fit and function. The ES80311 steering tie rod end includes a dust boot and greaseable feature to enhance durability. While specific warranty details are not provided here, Moog typically offers coverage against defects in materials and workmanship. Consult product documentation or Moog directly for warranty terms.
