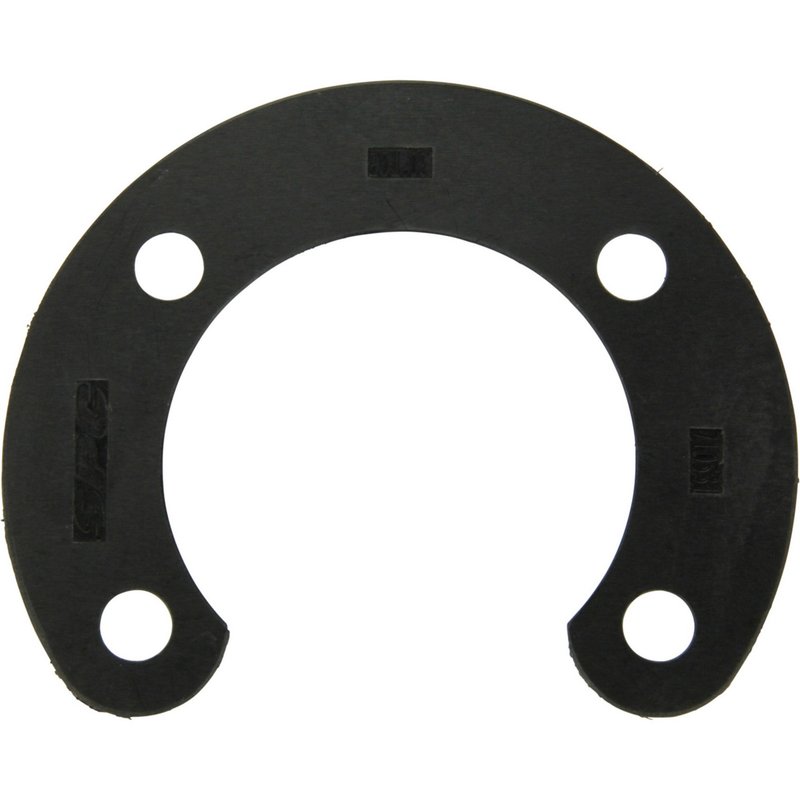

Moog K100230 Alignment Shim - Rear
OE Quality 60-Day Returns
Moog

Moog K100230 Alignment Shim - Rear

Brand Moog K100230
Position Rear
Grade Type Premium
Fits Buick and Chevrolet · 27 vehicles

Premium grade. Built as a suspension hardware shim for precise alignment adjustment.

Fine toe correction. Provides plus or minus 0.30 degrees of rear toe adjustment.

MOOG engineering. Design updates focus on longer product life and simpler replacement.

Cross-references 45K1183, 46-1103 and 2643792 for the same application. See all 5.

$36.38Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $36.38
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Alignment Shim options

Alignment Shim for Rear Toe Adjustment

This MOOG alignment shim is a premium suspension hardware solution for rear toe correction on select Buick, Chevrolet applications. It is built for precise adjustment where rear alignment needs fine-tuning to bring toe back within specification.

Key Features

  • Premium-grade alignment shim for suspension hardware applications.
  • Supports rear toe adjustment in small increments for accurate alignment correction.
  • MOOG engineering focuses on product life and easier replacement.
  • Fits Buick Encore, Chevrolet Trax, and Chevrolet Sonic rear applications.
  • Part number K100230 for ordering and catalog matching.

Detailed Description

MOOG K100230 is an alignment shim used to fine-tune rear toe settings on compatible Buick Encore, Chevrolet Trax, and Chevrolet Sonic models. The shim provides plus or minus 0.30 degrees of toe adjustment, making it a practical choice when rear suspension alignment needs to be brought back into range after service or component replacement. As part of MOOG's chassis hardware lineup, K100230 reflects the brand's focus on design updates that simplify installation and replacement while extending service life. This part cross-references Monroe Shocks & Struts (e.g., 45K1183, 46-1103) for the same application.

What It Is Used For

  • Correcting rear toe that is outside specification.
  • Addressing uneven tire wear caused by rear alignment error.
  • Restoring steering stability after suspension service.
  • Fine-tuning alignment after chassis or suspension repairs.

Installation Notes and Tips

Fits 2013-2022 Buick Encore, rear, with toe adjustment plus or minus 0.30 degree(s). Fits 2015-2022 Chevrolet Trax, rear, with toe adjustment plus or minus 0.30 degree(s). Fits 2012-2020 Chevrolet Sonic, rear, with toe adjustment plus or minus 0.30 degree(s). Verify alignment settings after installation and confirm the rear toe specification before final road testing. Part number K100230 should be matched to the vehicle's rear alignment requirement and service notes.

Quality Assurance

MOOG is known in the chassis industry for ongoing design improvements that focus on durability and easier serviceability.

This part fits 27 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2022BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2022ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2021BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2021ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2020BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2020ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2020ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2019BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2019ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2019ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2018BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2018ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2018ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2017BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2017ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2017ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2016BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2016ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2016ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2015BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2015ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2015ChevroletTraxFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2014BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2014ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2013BuickEncoreFWDRearToe Adjustment Plus or Minus .30 Degree(s)
2013ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
2012ChevroletSonic—RearToe Adjustment Plus or Minus .30 Degree(s)
Directly replaces or cross-references 5 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
45K118346-110326437926151183AA3792
