Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

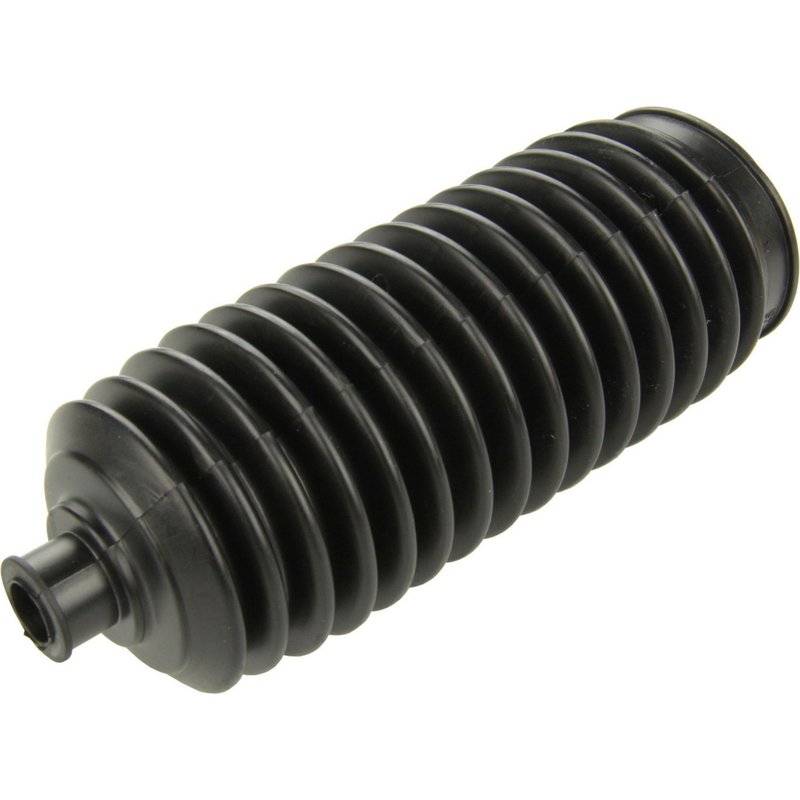

Moog K150285 Rack and Pinion Bellows Kit - Right
| Brand | Moog K150285 |
|---|---|
| Position | Right |
| Includes Hardware | Yes |
| Includes Ties | Yes |
| Large End Diameter (Inch) | 1.980 |
| Length (Inch) | 7.750 |
| Material | Rubber |
| Number of ribs | 16 |
| Small End Diameter (Inch) | 0.560 |
| Vent Hole | No |
| Fits | Honda, Isuzu, Lexus, and Volvo · 62 vehicles |
Rubber construction. Flexible bellows material helps protect the steering rack from road contamination.
Ribbed design. 16 ribs support controlled movement and a consistent seal profile.
Installation support. Includes hardware and ties for a more complete service replacement.
Cross-references 45A7093, 531-659 and 1032912 for the same application. See all 8.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rack and Pinion Bellows Kit Overview
MOOG K150285 is a rack and pinion bellows kit for steering systems that need a flexible protective boot. It uses rubber construction with a ribbed design to help shield the rack from dirt and moisture while maintaining movement. This part number, K150285, is listed for a wide range of Volvo, Isuzu, Honda, and Lexus applications.
Key Features
- Rubber bellows construction for flexible steering protection
- 16-rib design for controlled expansion and compression
- Includes hardware and ties for installation support
- No vent hole design
- MOOG Problem Solver engineering focus for service life and easier replacement
Detailed Fitment and Application
Compatible with steering rack assemblies on select vehicles, including Fits 2001-2005 Volvo S60, N/A; Fits 1999-2005 Volvo S80, N/A; Fits 2003-2005 Volvo XC70, N/A; Fits 2002-2004 Isuzu Axiom, N/A; Fits 1998-2004 Isuzu Rodeo, N/A; Fits 1998-2002 Honda Odyssey, N/A; Fits 1998-2002 Honda Passport, N/A; Fits 1998-2000 Isuzu Amigo, N/A; Fits 1995-2000 Lexus LS400, right; Fits 1992-2000 Lexus SC300, right; and Fits 1992-2000 Lexus SC400, right. The bellows length, end diameters, and rib count are specified to match the steering gear geometry used in these applications. K150285 is a direct service part for restoring the protective seal around the rack and pinion assembly.
What This Part Helps Address
- Cracked or torn steering rack boot
- Contamination entering the steering gear area
- Loss of protection around the rack and pinion assembly
- Wear from a damaged or hardened bellows
Installation Notes and Quality
Confirm the vehicle application and steering side before installation, especially on right-side listed Lexus applications. Match the bellows dimensions and rib profile to the original part for proper fit. MOOG K150285 reflects the brand's chassis-focused design improvements aimed at extending product life and simplifying replacement. This part cross-references Monroe Shocks & Struts (e.g., 45A7093, 531-659) for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2005 | Volvo | S60 | N/A | — |
| 2005 | Volvo | S80 | N/A | — |
| 2005 | Volvo | XC70 | N/A | — |
| 2004 | Isuzu | Axiom | N/A | — |
| 2004 | Isuzu | Rodeo | N/A | — |
| 2004 | Volvo | S60 | N/A | — |
| 2004 | Volvo | S80 | N/A | — |
| 2004 | Volvo | XC70 | N/A | — |
| 2003 | Isuzu | Axiom | N/A | — |
| 2003 | Isuzu | Rodeo | N/A | — |
| 2003 | Volvo | S60 | N/A | — |
| 2003 | Volvo | S80 | N/A | — |
| 2003 | Volvo | XC70 | N/A | — |
| 2002 | Honda | Odyssey | N/A | — |
| 2002 | Honda | Passport | N/A | — |
| 2002 | Isuzu | Axiom | N/A | — |
| 2002 | Isuzu | Rodeo | N/A | — |
| 2002 | Volvo | S60 | N/A | — |
| 2002 | Volvo | S80 | N/A | — |
| 2001 | Honda | Odyssey | N/A | — |
| 2001 | Honda | Passport | N/A | — |
| 2001 | Isuzu | Rodeo | N/A | — |
| 2001 | Volvo | S60 | N/A | — |
| 2001 | Volvo | S80 | N/A | — |
| 2000 | Honda | Odyssey | N/A | — |
| 2000 | Honda | Passport | N/A | — |
| 2000 | Isuzu | Amigo | N/A | — |
| 2000 | Isuzu | Rodeo | N/A | — |
| 2000 | Lexus | LS400 | Right | — |
| 2000 | Lexus | SC300 | Right | — |
| 2000 | Lexus | SC400 | Right | — |
| 2000 | Volvo | S80 | N/A | — |
| 1999 | Honda | Odyssey | N/A | — |
| 1999 | Honda | Passport | N/A | — |
| 1999 | Isuzu | Amigo | N/A | — |
| 1999 | Isuzu | Rodeo | N/A | — |
| 1999 | Lexus | LS400 | Right | — |
| 1999 | Lexus | SC300 | Right | — |
| 1999 | Lexus | SC400 | Right | — |
| 1999 | Volvo | S80 | N/A | — |
| 1998 | Honda | Odyssey | N/A | — |
| 1998 | Honda | Passport | N/A | — |
| 1998 | Isuzu | Amigo | N/A | — |
| 1998 | Isuzu | Rodeo | N/A | — |
| 1998 | Lexus | LS400 | Right | — |
| 1998 | Lexus | SC300 | Right | — |
| 1998 | Lexus | SC400 | Right | — |
| 1997 | Lexus | LS400 | Right | — |
| 1997 | Lexus | SC300 | Right | — |
| 1997 | Lexus | SC400 | Right | — |
| 1996 | Lexus | LS400 | Right | — |
| 1996 | Lexus | SC300 | Right | — |
| 1996 | Lexus | SC400 | Right | — |
| 1995 | Lexus | LS400 | Right | — |
| 1995 | Lexus | SC300 | Right | — |
| 1995 | Lexus | SC400 | Right | — |
| 1994 | Lexus | SC300 | Right | — |
| 1994 | Lexus | SC400 | Right | — |
| 1993 | Lexus | SC300 | Right | — |
| 1993 | Lexus | SC400 | Right | — |
| 1992 | Lexus | SC300 | Right | — |
| 1992 | Lexus | SC400 | Right | — |
