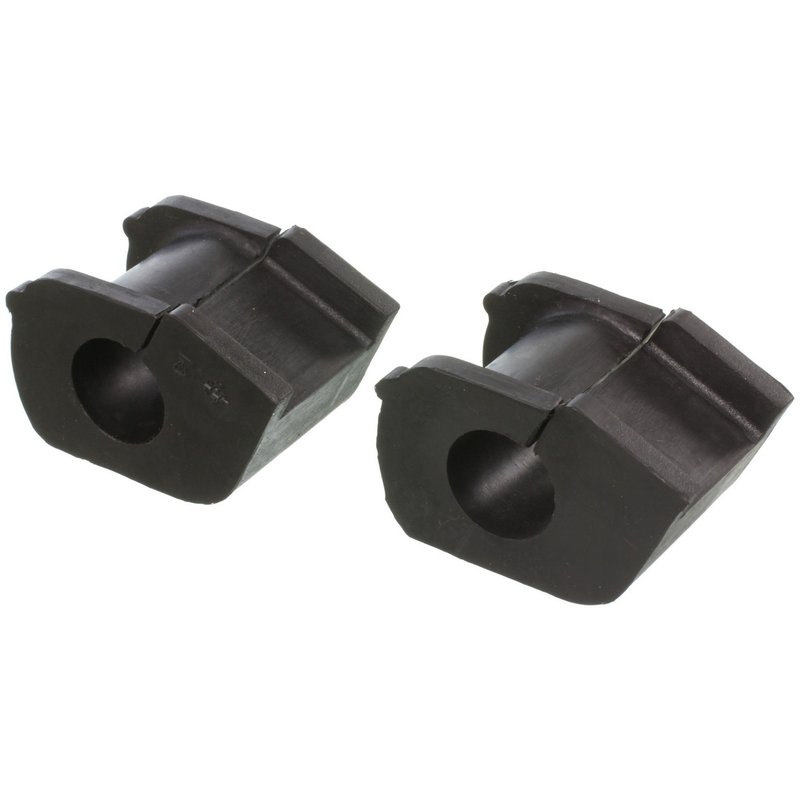

Moog K200619 Suspension Stabilizer Bar Bushing Kit - Front To Frame

MOOG K200619 Sway Bar Bushing Kit

Restore stabilizer bar support with the MOOG K200619 suspension stabilizer bar bushing kit. Built with rubber bushings and MOOG problem-solving design details, this front-to-frame sway bar bushing kit is made for straightforward service on select Toyota applications.

Key Features

• Rubber stabilizer bar bushings for consistent bar support
• Bar diameter: 0.910 inch
• Inner diameter: 1.260 inch
• Outer diameter: 1.604 inch
• Height: 1.900 inch
• Split design for simplified installation
• Compatible with front-to-frame mounting locations

Application Details

The MOOG K200619 is a suspension stabilizer bar bushing kit for front-to-frame use on 2012-2019 Toyota Prius C and 2007-2014 Toyota Yaris. It is built to support the stabilizer bar where it mounts to the frame, helping maintain proper bar location and suspension response. This part number, K200619, is a direct service option for Toyota Prius C and Toyota Yaris front sway bar bushing replacement needs.

This part cross-references Mevotech Supreme MS86435 for the same application.

What It Helps Address

• Clunking or rattling from worn stabilizer bar bushings
• Excessive play at the front sway bar frame mount
• Loss of stabilizer bar support caused by aged rubber
• Noise during cornering or over uneven pavement
• Need for a front sway bar bushing replacement on Toyota Prius C or Toyota Yaris

Installation Notes

The split bushing design supports faster service at the frame mount. Verify bar diameter and mounting dimensions before installation, and inspect the stabilizer bar and surrounding hardware for wear or damage during replacement. Hardware is not included.

Quality Assurance

MOOG sway bar bushings are backed by tested materials and application-focused engineering to deliver dependable service. The K200619 is built for consistent fit and repeatable performance in suspension maintenance.
