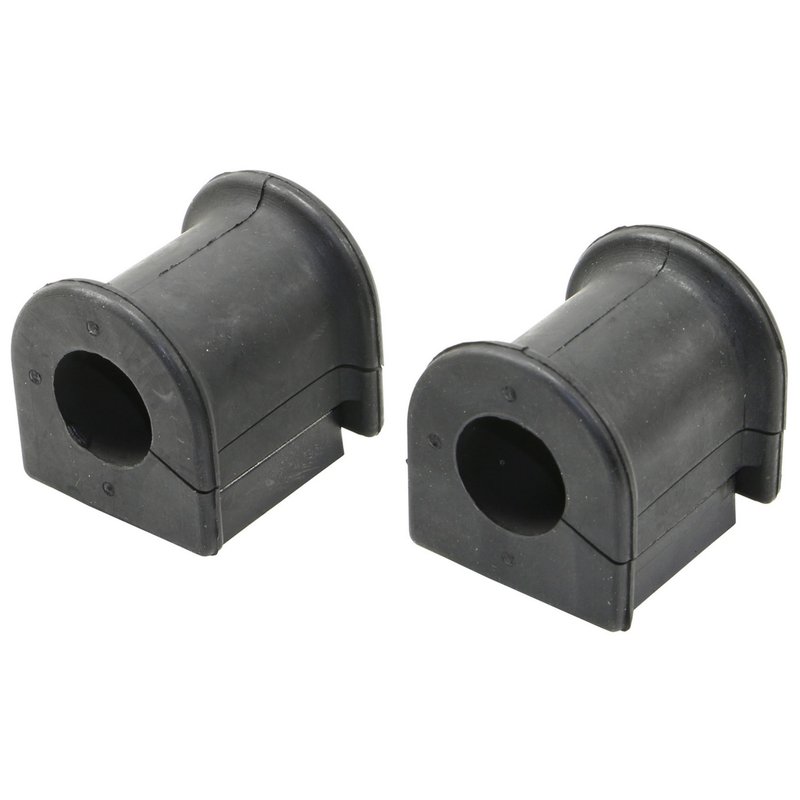

Moog K201553 Suspension Stabilizer Bar Bushing Kit - Rear To Frame

MOOG K201553 Rear Stabilizer Bar Bushings

MOOG K201553 is a rear stabilizer bar bushing kit built for direct replacement service on select Toyota and Scion applications. Made from rubber and engineered around precise OE-style dimensions, it supports stable sway bar mounting at the rear to frame location for consistent suspension performance.

Key Features

• Rubber construction for dependable sway bar isolation and fit
• Rear to frame stabilizer bar bushing application
• Inner diameter: 1.690 in; outer diameter: 1.750 in
• Length: 1.520 in; height: 1.750 in
• Base to centerline: 0.830 in (21.0 mm)
• Direct replacement part number K201553 for service on select vehicles

Detailed Description

MOOG K201553 is a suspension stabilizer bar bushing kit designed for rear to frame mounting points. The rubber material helps restore a secure interface between the sway bar and chassis mounting location, which is important for maintaining predictable suspension response and reducing unwanted movement at the bar mount. This part is a direct-fit service option for 2017 Toyota Corolla iM, 2016 Scion iM, and 2011-2016 Scion tC rear to frame applications. If you are searching for a rear sway bar bushing replacement for a 2011-2016 Scion tC or a rear stabilizer bar bushing kit for a 2017 Toyota Corolla iM, MOOG K201553 matches those confirmed applications. This part cross-references 2653720 and 4881812280 for the same application.

What It Helps Address

• Loose or worn rear sway bar mounting points
• Clunking or rattling from the rear stabilizer bar area
• Excessive movement at the rear to frame bushing location
• Reduced suspension stability caused by deteriorated rubber bushings
• Fitment issues when replacing an OE-style rear stabilizer bar bushing

Installation Notes and Tips

Confirm the rear to frame mounting position before installation and compare the bushing dimensions to the original part. Clean the mounting surface and inspect the stabilizer bar and bracket area for wear, corrosion, or damage that could affect the new bushing’s fit. Professional installation is recommended when the original bushing is seized or the mounting hardware shows corrosion.

Quality Assurance

MOOG backs this bushing kit with materials selected for suspension service and testing focused on reliable fit and performance. MOOG problem-solving design features are used to support straightforward installation and consistent replacement results.
