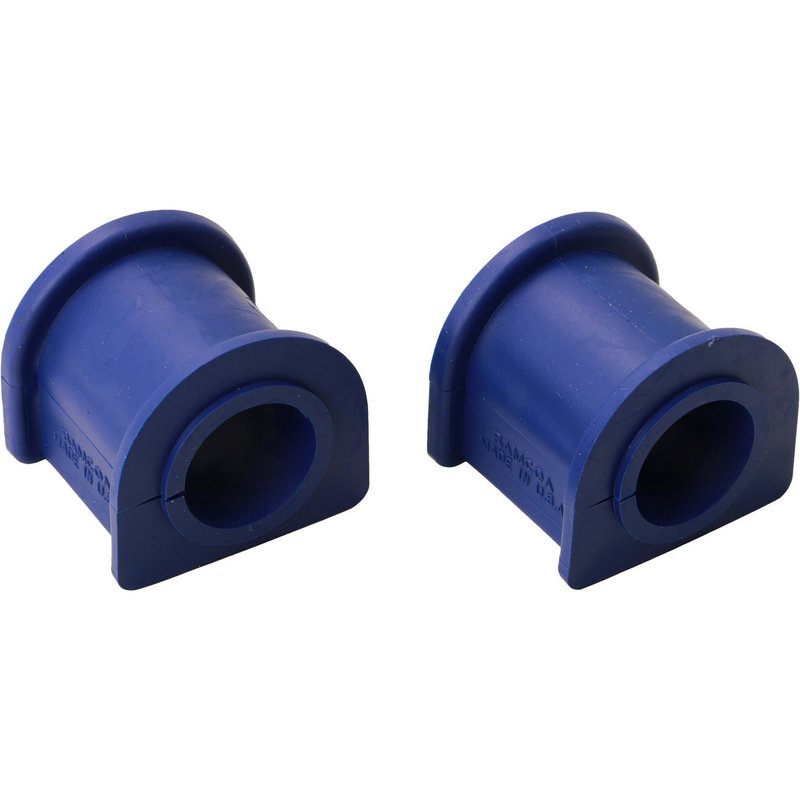

Moog K3171 Suspension Stabilizer Bar Bushing Kit - Front To Frame

MOOG K3171 Sway Bar Bushing Kit

Restore front suspension stability with the MOOG K3171 sway bar bushing kit. Built with thermoplastic material and engineered to exceed OE manufacturer specs, this front-to-frame bushing set is made for Jeep Cherokee, Grand Cherokee, Wrangler, Comanche, Wagoneer, Grand Wagoneer, J10, J20, and Dodge Dakota applications that use a 26 mm sway bar.

Key Features

• Thermoplastic construction for consistent bushing support
• 1.000 in inner diameter and 1.530 in outer diameter
• 1.630 in length for the specified sway bar fitment
• Exceeds OE manufacturer specifications
• Split design for easier installation on supported vehicles
• Fits front-to-frame mounting locations
• Compatible with 26 mm sway bar diameter applications

Detailed Description

The MOOG K3171 is a suspension stabilizer bar bushing kit designed for front-to-frame use on select Jeep and Dodge platforms. It is built from thermoplastic and sized for a 1.000-inch bar diameter, helping maintain sway bar location and suspension response on vehicles such as the Jeep Cherokee, Jeep Grand Cherokee, and Dodge Dakota. MOOG problem-solving design features include a split bushing layout that simplifies service on the listed applications. This part cross-references Dorman OE Solutions 535-568 for the same application.

What It Helps Address

• Front sway bar movement caused by worn bushings
• Clunking or rattling from the stabilizer bar area
• Reduced steering feel during cornering
• Excessive play at the front-to-frame sway bar mount
• Noise from deteriorated rubber-style bushings

Installation Notes and Tips

Compatible With 1984-2001 Jeep Cherokee, front to frame; 1993-1998 Jeep Grand Cherokee, front to frame; 1991-1996 Dodge Dakota, front to frame; 1987-1995 Jeep Wrangler, front to frame; 1993 Jeep Grand Wagoneer, front to frame; 1986-1992 Jeep Comanche, front to frame; 1984-1990 Jeep Wagoneer, front to frame; 1986-1987 Jeep J10, front to frame; and 1986-1987 Jeep J20, front to frame. Confirm the sway bar diameter is 26 mm before installation. The split design supports easier service on the listed front suspension applications. Hardware is not included.

Quality Assurance

MOOG backs this sway bar bushing kit with superior materials and rigorous testing to support reliable performance in daily driving and suspension service. The K3171 is engineered to exceed OE manufacturer specifications for the listed applications.
