OE Quality
60-Day Returns

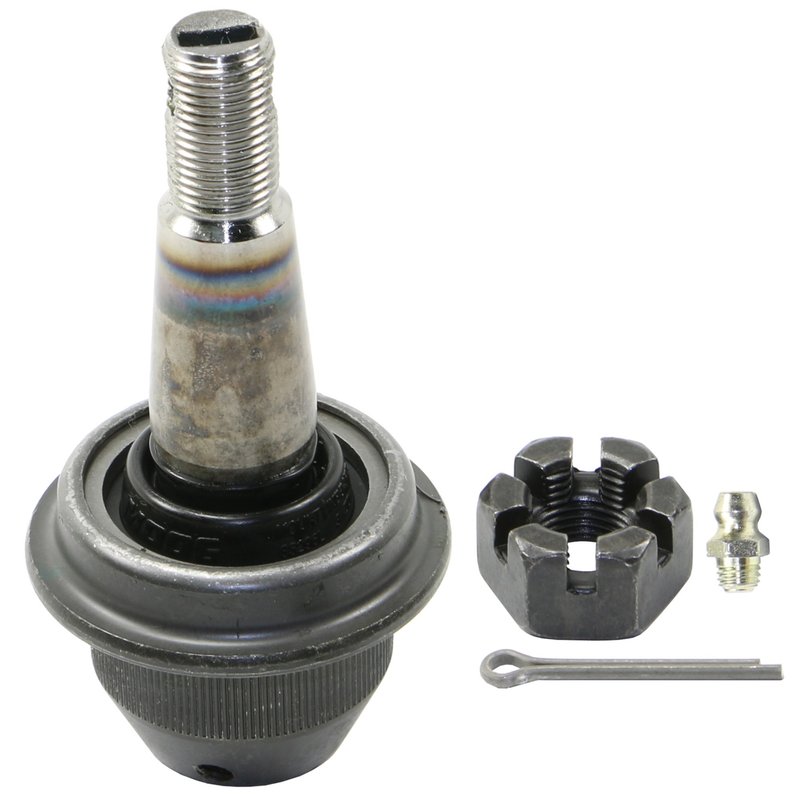

Moog K6477 Suspension Ball Joint - Front Lower
| Brand | Moog K6477 |
|---|---|
| Position | Front Lower |
| Material | Neoprene |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Cotter Pin Hole | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Mounting Type | Press-in |
| Fits | Cadillac, Chevrolet, and GMC · 68 vehicles |
Press-in design. Fast, hassle-free installation with no extra mounting hardware needed.
Greaseable. Helps maintain smooth operation and easier long-term service.
Neoprene material. Adds durable protection for dependable suspension performance.
Cross-references Dorman - OE Solutions 535-790, Mevotech Supreme MK6477 and MOOG Chassis Products K6477 for the same application. See all 19.
$51.43Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
$51.43
Free shipping
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Ball Joint options
MOOG K6477 Front Lower Ball Joint
MOOG K6477 is a press-in suspension ball joint built for front lower applications on select Chevrolet, GMC, and Cadillac trucks and SUVs. It uses a greaseable design with a neoprene boot, helping support long-term service in demanding front suspension use.
Key Features
- Press-in mounting type for welded control arms
- Greaseable design for routine lubrication service
- Neoprene boot material
- Castle nut included
- Cotter pin hole included
- Standard suspension grade type
- Non-adjustable construction
Application Details
This MOOG ball joint is engineered for front lower suspension service on 1995-2000 Chevrolet K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, Tahoe, and 1999-2000 Cadillac Escalade, plus 1995-2000 GMC K1500, K1500 Suburban, K2500, K2500 Suburban, K3500, and Yukon. The K6477 is a direct-fit style replacement for press-fit diameter applications that use a welded arm and a greaseable lower joint. This part cross-references Dorman OE Solutions 535-790 for the same application.
What It Helps Address
- Front-end looseness or play from a worn lower ball joint
- Clunking or popping noises from suspension movement
- Uneven tire wear related to worn steering and suspension joints
- Steering instability during braking or cornering
- Grease retention issues in serviceable front suspension joints
Installation Notes
Fits 1995-1999 Chevrolet K1500, front lower; 1995-1999 Chevrolet K1500 Suburban, front lower; 1995-1999 Chevrolet K2500 Suburban, front lower; 1995-1999 GMC K1500, front lower; 1995-1999 GMC K1500 Suburban, front lower; 1995-1999 GMC K2500 Suburban, front lower; 1995-2000 Chevrolet K2500, front lower; 1995-2000 Chevrolet K3500, front lower; 1995-2000 Chevrolet Tahoe, front lower; 1995-2000 GMC K2500, front lower; 1995-2000 GMC K3500, front lower; 1995-2000 GMC Yukon, front lower; 1999-2000 Cadillac Escalade, front lower. Verify press-fit diameter, welded arm design, and suspension configuration before installation. Grease the joint after installation and follow the vehicle service procedure for pressing the joint into place.
Quality Assurance
MOOG ball joints are backed by material selection and testing standards focused on consistent service life and dependable fit. The K6477 is built for front suspension repair where a serviceable, press-in lower ball joint is required.
This part fits 68 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Cadillac | Escalade | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | Chevrolet | Tahoe | 4WD | 5.7L | V8 | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | GMC | Yukon | 4WD | 5.7L | V8 | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Cadillac | Escalade | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | Chevrolet | Tahoe | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1999 | GMC | Yukon | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | Chevrolet | Tahoe | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1998 | GMC | Yukon | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | Chevrolet | Tahoe | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1997 | GMC | Yukon | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | Chevrolet | Tahoe | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1996 | GMC | Yukon | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | Chevrolet | Tahoe | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | K1500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | K1500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | K2500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | K2500 Suburban | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | K3500 | — | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 1995 | GMC | Yukon | 4WD | — | — | Front Lower | 46.13 (mm) - 1.816 (in) Press-Fit Diameter; For Welded Arm; Press-In Type; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| No rows match your filter. | |||||||
Directly replaces or cross-references 19 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 535-790Mevotech Supreme — MK6477MOOG Chassis Products — K647702-8602045D223246D2232A260-1474505-1232505-1232B610.66014104221286020123804151238341061166014B6477FA2099JBJ887XK6477
