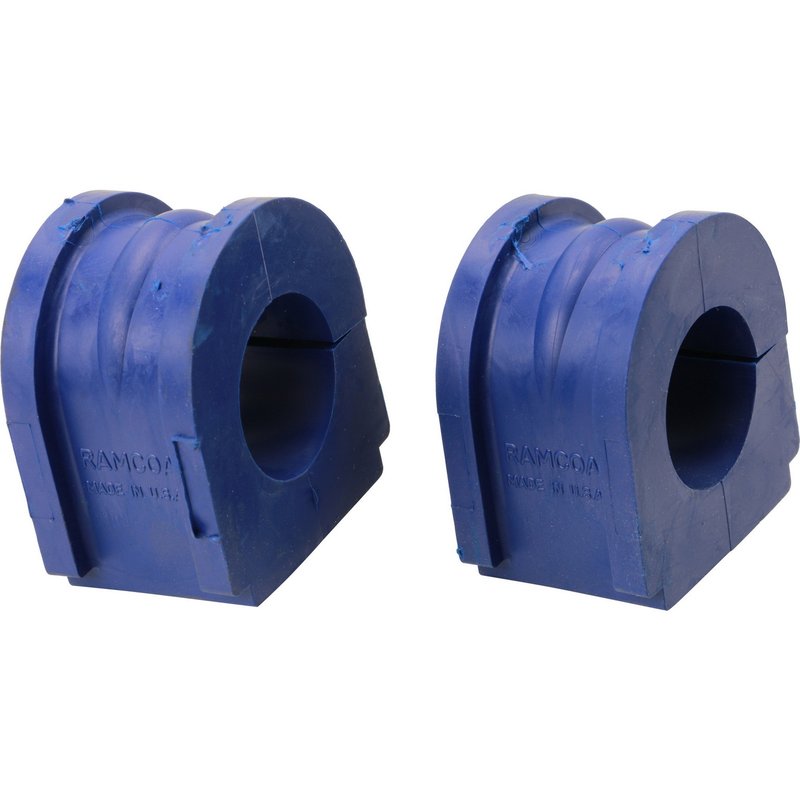

Moog K6530 Suspension Stabilizer Bar Bushing Kit - Front To Frame

Overview of Moog K6530 Suspension Stabilizer Bar Bushing Kit

The Moog K6530 Suspension Stabilizer Bar Bushing Kit is designed to provide reliable support and reduce sway in your vehicle's suspension system. Engineered for select Chevrolet, GMC, Isuzu, and Oldsmobile models, this kit ensures a precise fit and durable performance.

• Constructed from durable thermoplastic material for long-lasting wear
• Includes two sway bar bushings with an inner diameter of 1.300 inches
• Compatible with stabilizer bars measuring 1.300 inches in diameter
• Outer diameter of 1.840 inches and length of 1.530 inches for exact fitment
• Meets or exceeds original equipment manufacturer specifications
• Does not include dust boots or additional hardware

Detailed Product Description

The Moog K6530 kit contains two thermoplastic sway bar bushings designed to fit stabilizer bars with a 1.300-inch diameter. These bushings provide a secure mounting point for the suspension stabilizer bar, helping to minimize body roll and improve handling stability. The precise dimensions—1.530 inches in length and 1.840 inches outer diameter—ensure compatibility with specific suspension setups found in Chevrolet Blazer, GMC Jimmy, Isuzu Hombre, Oldsmobile Bravada, and S10 and Sonoma models. The thermoplastic material offers resistance to wear and environmental factors, maintaining performance over time. This kit does not include dust boots or mounting hardware, so it is intended for use with existing components or separate hardware purchases.

Compatible Vehicles and Applications

This suspension stabilizer bar bushing kit is compatible with the following makes and models:

• Chevrolet Blazer, S10, Sonoma
• GMC Jimmy, Sonoma
• Isuzu Hombre
• Oldsmobile Bravada

Use the Moog K6530 kit to address issues related to sway bar bushing wear or failure in these vehicles.

Common Issues Addressed by Moog K6530 Bushings

• Excessive body roll during cornering
• Clunking or knocking noises from the suspension
• Uneven tire wear due to poor stabilizer bar function
• Loose or worn suspension components affecting handling
• Vibration or instability at higher speeds

Installation Notes and Tips

• Ensure the stabilizer bar diameter matches the 1.300-inch specification before installation
• Inspect existing hardware and dust boots; replace if damaged since they are not included
• Lubricate bushings with a compatible grease to reduce noise and wear
• Torque mounting hardware to manufacturer specifications for secure fitment
• Check alignment and suspension components after installation for optimal performance

Quality Assurance and Warranty

Moog suspension components, including the K6530 bushing kit, are manufactured to meet or exceed original equipment standards. This ensures reliable performance and durability under normal operating conditions. While specific warranty details may vary, Moog typically offers coverage against defects in materials and workmanship. Refer to Moog’s official documentation for complete warranty information.
