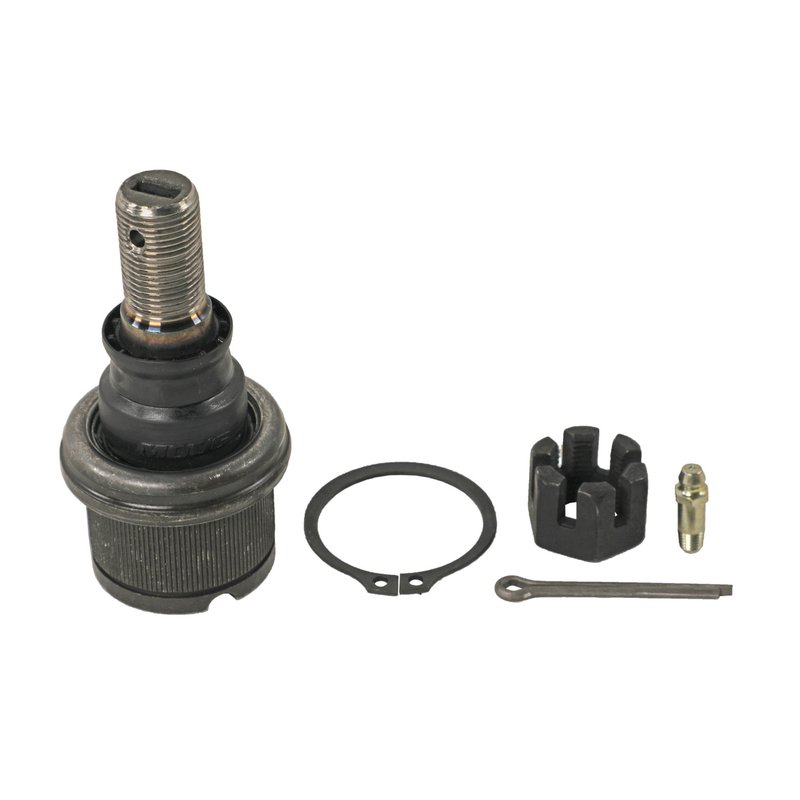

Moog K7397 Suspension Ball Joint - Front Lower
| Brand | Moog K7397 |
|---|---|
| Position | Front Lower |
| Material | Neoprene |
| Maximum Outside Diameter | 2.140 |
| Castle Nut Included | Yes |
| Suspension Grade Type | Standard |
| Cotter Pin Hole | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | Yes |
| Mounting Type | Press-in |
| Fits | Dodge · 9 vehicles |
Cross-references Centric Parts 610.67030, Mevotech Supreme MK7397 and MOOG Chassis Products K7397 for the same application. See all 18.
MOOG K7397 Ball Joint Overview
MOOG K7397 is a press-in suspension ball joint built for front lower applications on select Dodge Ram heavy-duty trucks. It uses a greaseable design with a neoprene material and includes a castle nut and cotter pin hole for service-friendly installation.
For Dodge Ram 2500 and Dodge Ram 3500 suspension repair, this ball joint is engineered to restore steering and suspension connection points with a standard-grade replacement design. The MOOG K7397 part number is also cross-referenced to other aftermarket numbers for the same application.
- Press-in ball joint construction for direct suspension service
- Greaseable design for routine lubrication maintenance
- Neoprene material for the joint boot/seal assembly
- Castle nut included with cotter pin hole provision
- Standard suspension grade replacement
Fitment Details
Fits 2000-2002 Dodge Ram 2500, front lower.
Fits 2000-2002 Dodge Ram 3500, front lower.
Fits 2000-2002 Dodge Ram 3500, front lower, with solid front axle; includes powdered-metal Gusher Bearing to allow grease to penetrate bearing surfaces.
What This Part Is Used For
- Replacing a worn or loose suspension ball joint
- Addressing steering play or imprecise front-end response
- Restoring proper suspension articulation at the lower joint
- Supporting greaseable service intervals on heavy-duty trucks
Installation Notes and Tips
Install as a press-in suspension component and verify the joint orientation before pressing into place. Confirm the vehicle’s front lower application and axle configuration before ordering, especially on Dodge Ram 3500 models with a solid front axle. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Quality Assurance
MOOG ball joints are backed by superior materials and rigorous testing, with problem-solving design features aimed at making installation faster and more straightforward.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2002 | Dodge | Ram 3500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2002 | Dodge | Ram 3500 | RWD | Front Lower | with Solid Front Axle; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2001 | Dodge | Ram 2500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2001 | Dodge | Ram 3500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2001 | Dodge | Ram 3500 | RWD | Front Lower | with Solid Front Axle; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
| 2000 | Dodge | Ram 2500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2000 | Dodge | Ram 3500 | 4WD | Front Lower | Enhanced lubrication improves steering performance for Suspension Stabilizer Bar Link. |
| 2000 | Dodge | Ram 3500 | RWD | Front Lower | with Solid Front Axle; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces |
