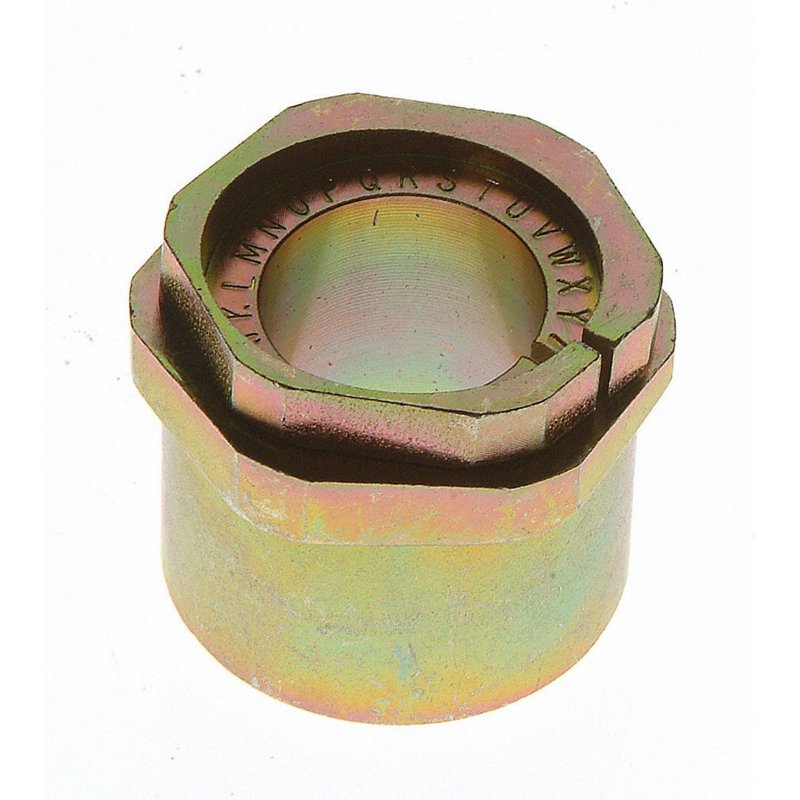

Moog K80109 Alignment Caster / Camber Bushing - Front

Moog K80109 Alignment Bushing

Moog K80109 is a premium alignment caster / camber bushing for front suspension applications. It is built for Ford and Mazda vehicles that need precise alignment correction, including Ford F-250 Super Duty, F-350 Super Duty, E-Series vans, Ranger, Explorer, Bronco II, and related Mazda truck and SUV platforms.

Key Features

• Premium-grade alignment caster / camber bushing
• Supports front suspension alignment correction
• Allows camber and/or caster adjustment from 0 degrees to +/- 4 degrees on listed applications
• Can be set at true zero degree on applicable vehicles
• Moog chassis engineering focuses on longer service life and easier installation and replacement
• Part number K80109 for direct catalog lookup

Detailed Description

Moog K80109 is an alignment caster / camber bushing engineered for front suspension use on a wide range of Ford and Mazda vehicles. It is a practical choice when front-end geometry needs to be corrected during an alignment, especially on vehicles such as the Ford F-250 Super Duty, Ford F-350 Super Duty, Ford E-350 Super Duty, Ford Ranger, and Ford Explorer. This part number, K80109, is also listed for multiple older Ford truck and van platforms and select Mazda B-Series and Navajo applications.

Moog’s chassis design approach emphasizes product life and simpler replacement, which is important when servicing suspension components that affect tire wear and steering stability. This premium alignment bushing is used to restore or fine-tune camber and caster settings on the front axle or front suspension, depending on the vehicle application.

This part cross-references Mevotech Supreme MK80109 for the same application.

What It Helps Correct

• Front-end alignment issues after suspension service
• Camber or caster settings that need adjustment back into specification
• Uneven tire wear caused by incorrect front suspension geometry
• Steering pull related to alignment angle imbalance
• Alignment correction on Ford and Mazda front suspension applications

Installation Notes and Tips

• Compatible With front-position applications only as listed in the fitment data.
• Fits 2023 Ford E-350 Super Duty, front.
• Fits 2023 Ford F-250 Super Duty, front.
• Fits 2023 Ford F-350 Super Duty, front.
• Fits 2021-2022 Ford E-350 Super Duty, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1999-2022 Ford F-250 Super Duty, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1999-2022 Ford F-350 Super Duty, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 2003-2014 Ford E-150, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 2003-2014 Ford E-250, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 2000-2005 Ford Excursion, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1987-1997 Ford Ranger, front; pinch bolt stud design; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1994-1997 Mazda B2300, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1994-1997 Mazda B3000, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Fits 1994-1997 Mazda B4000, front; adjustable, with camber and/or caster adjustable from 0 degrees to +/- 4 degrees.
• Verify the vehicle’s suspension configuration and alignment requirements before installation.

Quality Assurance

Moog is known in the chassis industry for ongoing design improvements that extend service life and simplify replacement. K80109 is a premium-grade suspension alignment component built to support accurate front-end alignment service on listed Ford and Mazda applications.
