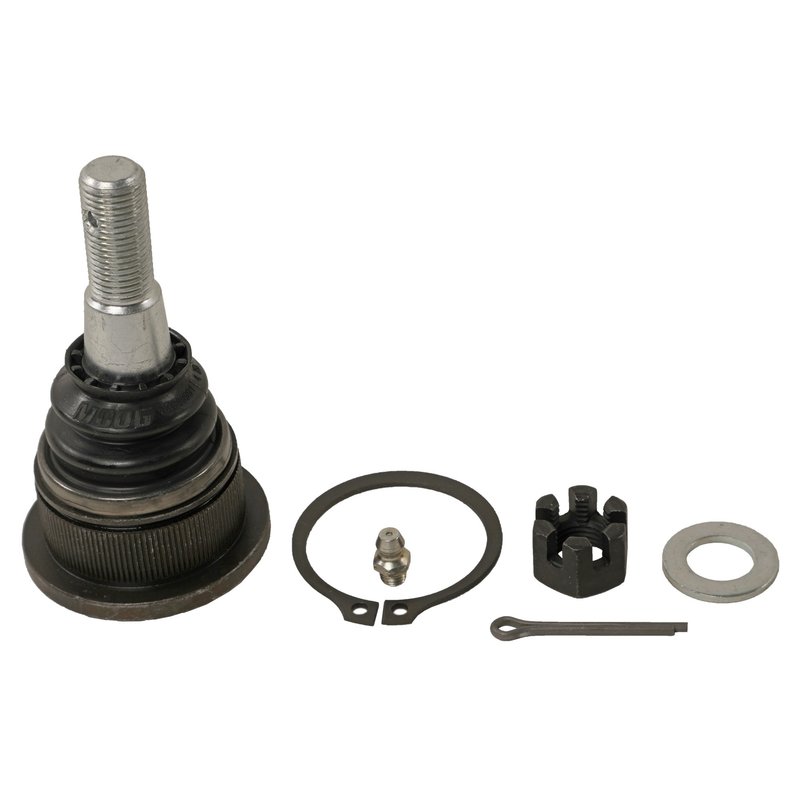

Moog K80628 Suspension Ball Joint - Front Upper
OE Quality 60-Day Returns
Moog

Moog K80628 Suspension Ball Joint - Front Upper

Brand Moog K80628
Position Front Upper
Material Neoprene
Maximum Outside Diameter 2.160
Castle Nut Included Yes
Suspension Grade Type Standard
Cotter Pin Hole Yes
Mounting Hole Quantity 0
Adjustable No
Greaseable Yes
Mounting Type Press-in
Fits Dodge and Ram · 35 vehicles

Press-in design. Fast, hassle-free installation with no modifications needed.

Greaseable joint. Helps maintain smooth, reliable suspension performance.

Neoprene material. Built with superior materials for dependable durability.

Cross-references Dorman - OE Solutions 536-376, Mevotech Supreme MK80628 and MOOG Chassis Products K80628 for the same application. See all 10.

$57.55Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $57.55
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Suspension Ball Joint options

MOOG K80628 Front Upper Ball Joint

The MOOG K80628 is a greaseable press-in suspension ball joint built for front upper applications on select Ram and Dodge trucks. It uses a neoprene boot, a castle nut, and a cotter pin hole to support secure installation and long-term serviceability.

Backed by MOOG materials and testing standards, this front upper ball joint is made for drivers servicing Ram 1500, Ram 2500, Ram 3500, and Ram 1500 Classic suspension systems.

Key Features

  • Press-in mounting type for front upper suspension service
  • Greaseable design for routine lubrication
  • Neoprene boot helps protect the joint from contamination
  • Castle nut included with cotter pin hole
  • Standard suspension grade type
  • Maximum outside diameter: 2.160 in.
  • Not adjustable

Application Details

Fits 2020-2023 Ram 1500 Classic, front upper. Fits 2019 Ram 1500 Classic, front upper. Fits 2013-2018 Ram 1500, front upper. Fits 2011 Ram 1500, front upper. Fits 2011-2013 Ram 2500, front upper. Fits 2012 Ram 1500, front upper with 5 lug wheels. Fits 2011-2012 Ram 3500, front upper. Fits 2009-2010 Dodge Ram 1500, front upper. Fits 2006-2010 Dodge Ram 2500, front upper. Fits 2007-2010 Dodge Ram 3500, front upper. Fits 2006-2008 Dodge Ram 1500, front upper with 5 lug wheels. Fits 2006-2008 Dodge Ram 1500, front upper with 8 lug wheels.

This part cross-references Dorman OE Solutions 536-376 for the same application.

What It Helps Fix

  • Front-end looseness from a worn upper ball joint
  • Clunking or popping noises from the suspension
  • Uneven tire wear caused by joint play
  • Steering wander or reduced front-end stability
  • Service issues related to a dry or contaminated joint

Installation Notes

This is a press-in suspension ball joint, so proper removal and installation tools are required. Verify front upper fitment by year, make, model, and wheel configuration before ordering, especially on Ram 1500 and Dodge Ram 1500 applications with 5 lug or 8 lug wheels. Grease the joint during service if your maintenance procedure calls for lubrication.

Quality Assurance

MOOG ball joints are built with tested materials and problem-solving design features aimed at straightforward installation and dependable service in suspension repair.

Related reading

This part fits 35 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2023Ram1500 Classic—Front Upper—
2022Ram1500 Classic—Front Upper—
2021Ram1500 Classic—Front Upper—
2020Ram1500 Classic—Front Upper—
2019Ram1500 Classic—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2018Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2017Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2016Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2015Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2014Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2013Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2013Ram2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2012Ram1500—Front Upperwith 5 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2012Ram2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2012Ram3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2011Ram1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2011Ram2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2011Ram3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2010DodgeRam 1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2010DodgeRam 2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2010DodgeRam 3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009DodgeRam 1500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009DodgeRam 2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2009DodgeRam 3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008DodgeRam 1500—Front Upperwith 5 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008DodgeRam 1500RWDFront Upperwith 8 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2008DodgeRam 2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2008DodgeRam 3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007DodgeRam 1500—Front Upperwith 5 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2007DodgeRam 1500RWDFront Upperwith 8 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2007DodgeRam 2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2007DodgeRam 3500—Front UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
2006DodgeRam 1500—Front Upperwith 5 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2006DodgeRam 1500RWDFront Upperwith 8 Lug Wheels; Includes Powdered-Metal Gusher Bearing To Allow Grease To Penetrate Bearing Surfaces
2006DodgeRam 2500RWDFront UpperEnhanced lubrication improves steering performance for Suspension Stabilizer Bar Link.
Directly replaces or cross-references 10 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - OE Solutions — 536-376Mevotech Supreme — MK80628MOOG Chassis Products — K80628Mopar — 68227901AB610.670311048062855366652AE55366653AEBJ81106JBJ915
