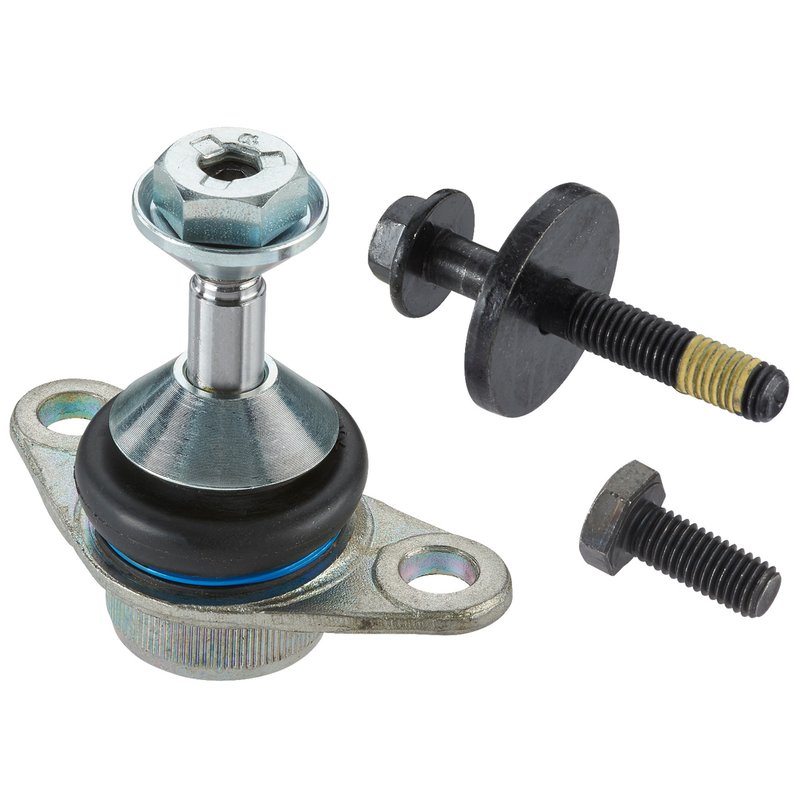

Moog K80700 Suspension Ball Joint - Front Lower

MOOG K80700 Front Lower Ball Joint

The MOOG K80700 is a front lower suspension ball joint for select Volvo applications, including S60, V70, XC70, and S80 models. Built with a neoprene material and a 2-bolt mounting design, it is focused on dependable steering and suspension service for everyday driving.

Key Features

• Front lower suspension ball joint for select Volvo fitments
• Neoprene construction
• 2-bolt mounting type with 2 mounting holes
• Maximum outside diameter: 1.500 in.
• Non-adjustable design
• Non-greaseable design
• Castle nut not included

Detailed Description

MOOG K80700 is engineered for front lower suspension service on 1999-2007 Volvo S80, 2001-2007 Volvo V70, 2001-2007 Volvo S60, and 2003-2007 Volvo XC70 applications, with 2007 Volvo S60 coverage limited to chassis #626501 and earlier. The part number K80700 is commonly searched for OE-style replacement needs where a direct-fit front lower ball joint is required. MOOG uses superior materials and testing practices to support consistent performance, while its problem-solving design approach is aimed at straightforward installation on the correct vehicle application.

This part cross-references Beck/Arnley 101-5042 and Centric Parts 610.39005 for the same application.

What It Helps Address

• Front-end looseness or play at the lower suspension joint
• Clunking or knocking from the front suspension
• Uneven steering response caused by worn joint components
• Suspension inspection failures related to ball joint wear
• Restoration of proper lower control arm articulation on Volvo S60, V70, XC70, and S80 models

Installation Notes and Tips

Verify the vehicle year, model, and position before ordering, especially on 2007 Volvo S60 applications that require chassis #626501 or earlier. Confirm the 2-bolt mounting pattern and front lower position match the existing suspension layout. Because this ball joint is non-greaseable and non-adjustable, correct installation and final alignment checks are important after replacement.

Quality Assurance

MOOG ball joints are backed by material selection and testing standards intended to support reliable service life and consistent fitment on the specified Volvo applications.
