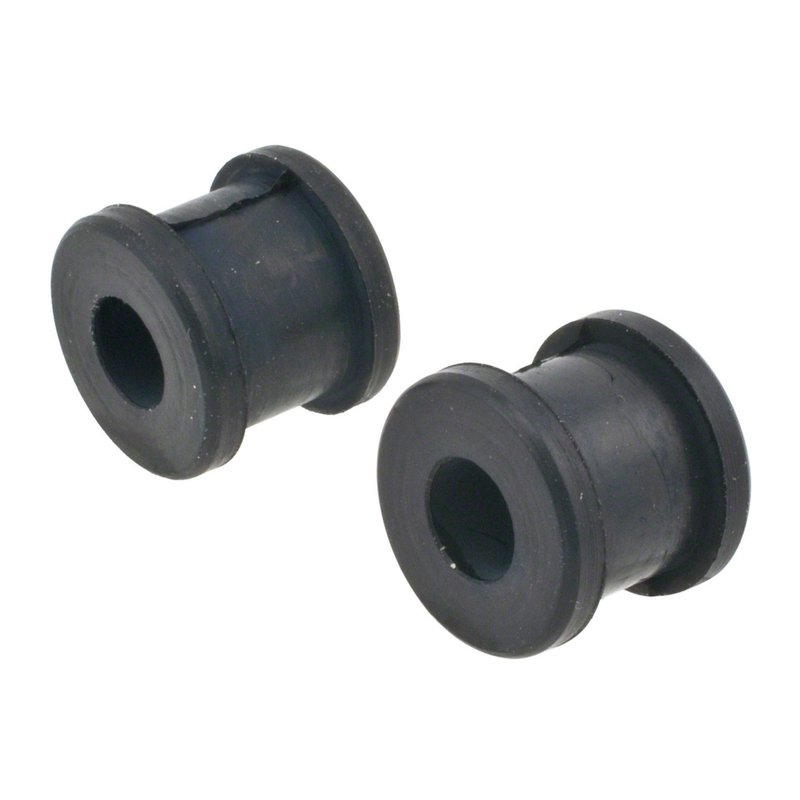

Moog K90193 Suspension Stabilizer Bar Bushing Kit - Rear To End Link or Rear To Frame

Moog K90193 Rear Stabilizer Bar Bushing Kit

Restore rear sway bar support with the Moog K90193 suspension stabilizer bar bushing kit. Built with rubber construction and sized for a 0.390-inch bar diameter, this chassis component helps maintain proper rear stabilizer bar positioning on select Honda, Acura, and Isuzu applications.

Moog is known for ongoing design updates that improve service life and make replacement easier. The K90193 is a direct-fit style rear stabilizer bar bushing solution for vehicles such as the Honda Civic, Acura Integra, and Honda Accord.

Key Features

• Rubber bushing material for rear stabilizer bar support
• Fits a 0.390-inch bar diameter
• Inner diameter: 0.740 inch
• Outer diameter: 0.889 inch
• Height: 0.779 inch
• Length: 0.780 inch
• Designed for rear to end link and rear to frame applications
• Compatible with select Acura, Honda, and Isuzu models
• Moog K90193 part number for easy catalog matching

Detailed Description

The Moog K90193 stabilizer bar bushing kit is built for rear suspension service where the sway bar needs a precise rubber bushing interface. Its dimensions are matched to a 0.390-inch bar diameter, making it a practical replacement for worn rear stabilizer bar bushings that can affect bar location and suspension feel. This part number, K90193, is used across multiple rear suspension positions including rear to end link and rear to frame on select vehicles.

Compatible With 1989-1995 Honda Civic, rear to end link; 1984-1993 Honda Accord, rear to end link; 1990-2001 Acura Integra, rear to end link; and other listed applications including Honda Prelude, Acura Legend, Honda Odyssey, Acura TL, Acura CL, Civic del Sol, and Isuzu Oasis. This part cross-references Mevotech Supreme MK90193 for the same application.

Common Problems It Can Help Address

• Rear sway bar movement caused by worn bushings
• Clunking or rattling from the rear suspension area
• Loose stabilizer bar fitment at the frame or end link
• Reduced bar control from deteriorated rubber bushings
• Service replacement for aging Honda Civic, Acura Integra, and Honda Accord suspension hardware

Installation Notes and Tips

Verify rear sway bar diameter before installation to confirm the 0.390-inch bushing size is correct for the vehicle. Inspect the stabilizer bar, end links, and mounting surfaces for wear or corrosion before installing the new bushings. Because hardware is not included, reuse or source the required mounting hardware separately if needed. For best results, compare the old bushing dimensions to the Moog K90193 before assembly.

Quality Assurance

Moog supports this chassis component with a design approach focused on product life and easier replacement. The K90193 is engineered as a service part for rear stabilizer bar applications on select Honda, Acura, and Isuzu vehicles, with dimensions and material selection intended to support consistent suspension fitment.
