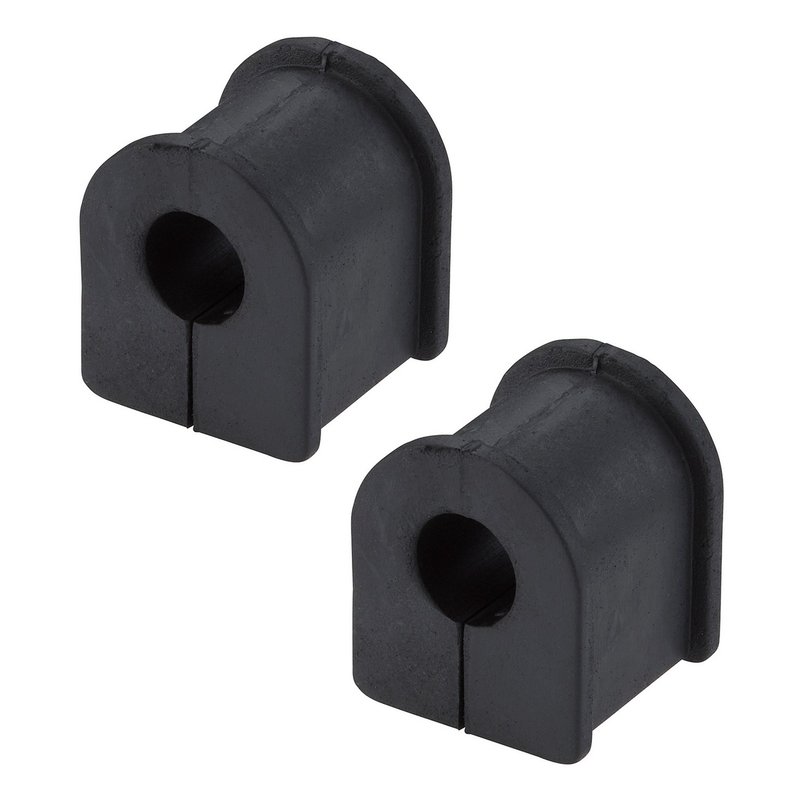

Moog K90549 Suspension Stabilizer Bar Bushing Kit - Rear To Frame

MOOG K90549 Rear Sway Bar Bushings

MOOG K90549 is a suspension stabilizer bar bushing kit for the rear-to-frame sway bar mount. Built with rubber and sized for a 0.640-inch bar diameter, it supports a secure fit on select Toyota Avalon and Toyota Camry applications.

Use this MOOG sway bar bushing kit when you need a direct replacement for worn rear stabilizer bar bushings on 1997-2004 Toyota Avalon and Toyota Camry models. The split-design bushing layout helps simplify service on the rear sway bar mount.

Key Features

• Rubber construction for suspension bushing service
• Fits a 0.640-inch sway bar diameter
• Rear to frame mounting position
• Designed for 17 mm sway bar diameter applications
• Compatible with 1997-2001 Toyota Camry, rear to frame
• Compatible with 2000-2004 Toyota Avalon, rear to frame
• MOOG part number K90549 for catalog and service lookup

Product Details

MOOG K90549 is a rear stabilizer bar bushing kit engineered for select Toyota suspension setups. The bushing dimensions include a 1.180-inch inner diameter, 1.560-inch outer diameter, 1.420-inch length, and 1.670-inch height, matching the listed rear-to-frame fitment. This part cross-references Monroe Shocks & Struts (e.g., 45G0935, 265-2410) for the same application. It is a practical replacement for Toyota Avalon and Toyota Camry owners addressing rear sway bar mount wear, noise, or looseness.

What It Helps Fix

• Rear sway bar clunking over bumps
• Excess movement at the stabilizer bar mount
• Worn or cracked rubber bushings
• Noise from the rear suspension area
• Loose-feeling rear body control during cornering

Installation Notes

Fits 2000-2004 Toyota Avalon, rear to frame, and fits 1997-2001 Toyota Camry, rear to frame. Confirm the sway bar diameter is 17 mm before installation. The split design supports easier installation on the rear stabilizer bar mount. No hardware is included, so reuse or source any required mounting components separately if needed.

Quality Assurance

MOOG backs this bushing kit with materials selected for suspension service and testing focused on consistent performance. MOOG K90549 is built for the specified Toyota Avalon and Toyota Camry rear sway bar applications and is supported by MOOG chassis product engineering.
