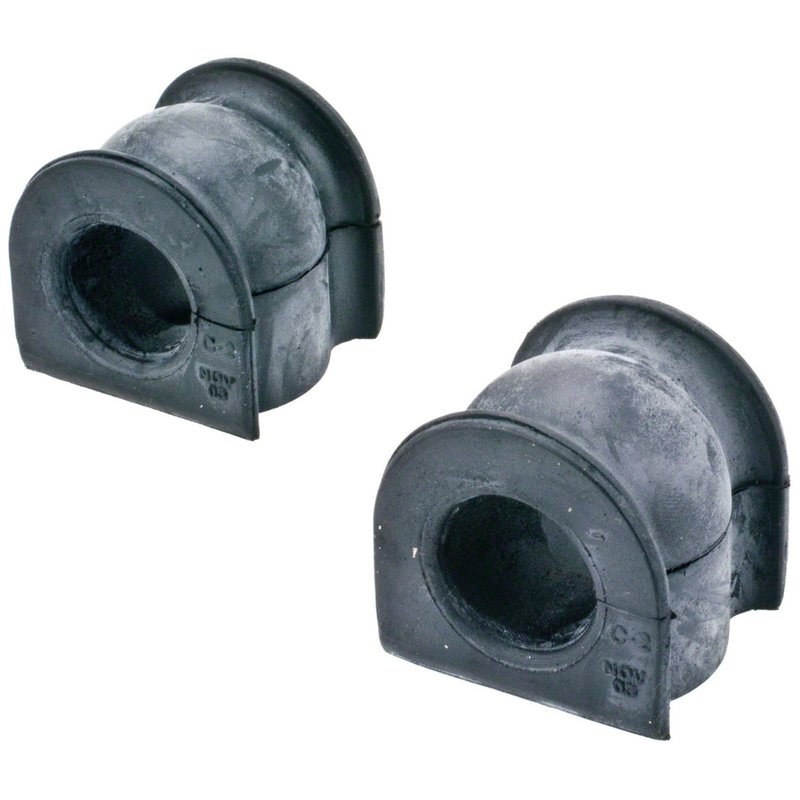

Moog K90568 Suspension Stabilizer Bar Bushing Kit - Front To Frame

Suspension Stabilizer Bar Bushing Kit for Honda and Acura

Restore stabilizer bar support with the MOOG K90568 suspension stabilizer bar bushing kit. Built with rubber bushings and OE-style dimensions, this kit helps maintain proper sway bar location at the frame for consistent suspension response on select Honda Accord and Acura CL applications.

Key Features

• Rubber construction for stabilizer bar isolation and support
• Bar diameter: 0.950 inch
• Inner diameter: 1.650 inch
• Outer diameter: 1.740 inch
• Length: 1.810 inch
• Height: 1.820 inch
• Designed for front-to-frame mounting
• MOOG part number K90568 for direct identification

Detailed Description

The MOOG K90568 stabilizer bar bushing kit is engineered for front-to-frame suspension service on 1997-1999 Acura CL and 1995-1997 Honda Accord models. As a chassis component, it supports the sway bar where it passes through the frame, helping preserve bar alignment and reduce unwanted movement. MOOG continues to refine its chassis parts with design updates that improve serviceability and part life. This part cross-references Beck/Arnley 101-6386 for the same application.

What It Helps Fix

• Clunking or rattling from worn stabilizer bar bushings
• Excessive sway bar movement at the frame mount
• Loose or degraded rubber at the front stabilizer bar support
• Uneven suspension feel caused by worn chassis bushings
• Noise during cornering or over small road impacts

Installation Notes and Tips

Fits 1997-1999 Acura CL, front to frame. Fits 1995-1997 Honda Accord, front to frame. Confirm stabilizer bar diameter and bushing dimensions before installation to match the existing suspension hardware. The kit does not include hardware, so reuse or replace mounting fasteners as needed during service. Verify the bar and frame contact surfaces are clean before installing the new bushings. MOOG K90568 is also referenced by part number K90568 in catalog listings for these applications.

Quality Assurance

MOOG is known in the chassis category for ongoing design improvements that extend service life and simplify replacement. The K90568 bushing kit follows that approach with application-specific sizing for select Honda Accord and Acura CL front stabilizer bar service.
