OE Quality
60-Day Returns
Motorad

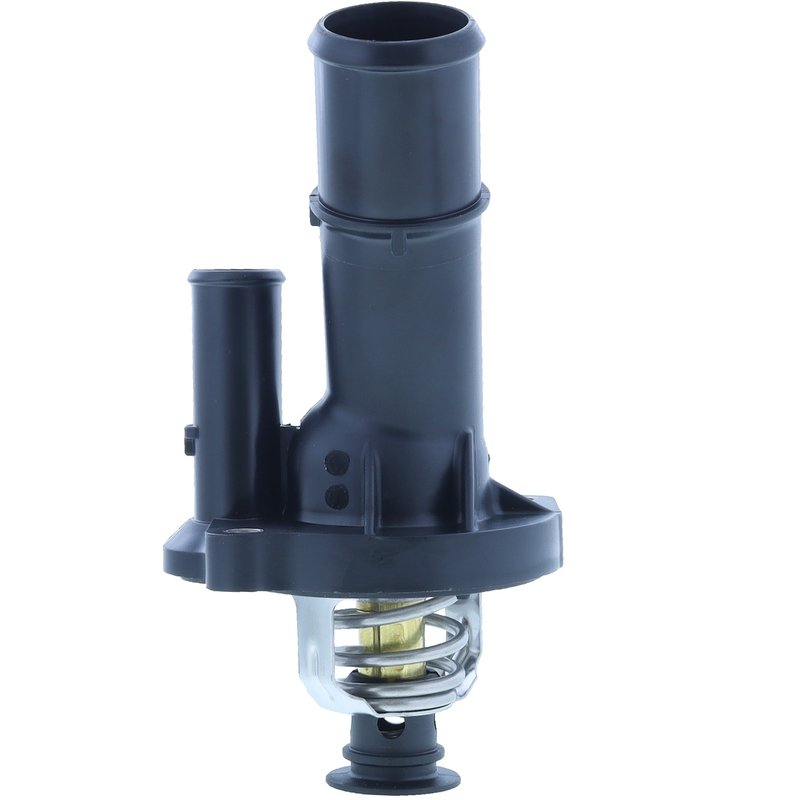

Integrated Housing ThermostatMotorad 1010-170 Engine Coolant Thermostat Housing Assembly
| Brand | Motorad 1010-170 |
|---|---|
| Material | Plastic, stainless steel, copper |
| Material | Plástico, acero inoxidable, cobre |
| 10362 | No |
| Color | Black |
| Color | Negro |
| Gasket Or Seal Required | Yes |
| Valve Type | Disk |
| Mounting Hardware Included | No |
| Grade Type | Standard replacement |
| Gasket Or Seal Included | Yes |
| Mounting Hole Quantity | 3 |
| Terminal Quantity | 0 |
| Outlet Port Outside Diameter | 0.76 |
| Outlet Port Outside Diameter | 1.31 |
| Outlet Port Outside Diameter | 19.30 |
| Outlet Port Outside Diameter | 33.27 |
| Start to Open Temperature | 170 |
| Start to Open Temperature | 76.67 |
| Gasket Type | O-ring |
| Outlet Port Quantity | 2 |
| Bleeder Hole | Yes |
| Actuator Type | Mechanical |
| Gasket Or Seal Material | Rubber |
| Gasket or Seal Pre-Installed | Yes |
| Gasket Quantity | 0 |
| Jiggle Pin Included | Yes |
| Seal Quantity | 1 |
| Product line | Integrated Housing Thermostat |
| Fits | Ford and Lincoln · 45 vehicles |
OE supplier quality. Built to OEM standards with thermal shock validation and 100% leak testing.
Integrated housing design. Combines the thermostat and housing in one standard replacement assembly.
Pre-installed seal. Includes an O-ring gasket and seal for easier installation.
Cross-references Motorad 1010-170 and 170-0101 for the same application. See all 2.
$36.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat Housing Assembly options
Integrated Thermostat Housing Assembly
Motorad 1010-170 is an integrated engine coolant thermostat housing assembly built for OE-style replacement on select Ford and Lincoln applications. It combines the thermostat, housing, and seal in one service part for a direct cooling system repair on vehicles such as the Ford Mustang, Ford Explorer, and Lincoln MKZ.
The Motorad Integrated Housing Thermostat line focuses on factory-style fit and cooling system durability. This assembly uses plastic, stainless steel, and copper construction, a black finish, a mechanical actuator, and a disk valve design. It starts to open at 170°F and includes a pre-installed gasket/seal with an O-ring seal type, bleeder hole, and jiggle pin for serviceability.
- OE supplier manufacturing standard for standard replacement service
- Integrated thermostat, housing, and seal design
- 170°F start-to-open temperature
- Plastic, stainless steel, and copper construction
- Black housing finish
- Bleeder hole and jiggle pin included
- Gasket/seal pre-installed; O-ring seal type
- 3 mounting holes and 2 outlet ports
Fitment Coverage
- Fits 2015-2023 Ford Mustang, N/A; includes thermostat, housing, and seal.
- Fits 2023 Ford Transit Connect, N/A; includes thermostat, housing, and seal.
- Fits 2019-2021 Ford Transit Connect, N/A; includes thermostat, housing, and seal.
- Fits 2018-2022 Ford EcoSport, N/A; includes thermostat, housing, and seal.
- Fits 2017-2020 Ford Fusion, N/A; includes thermostat, housing, and seal.
- Fits 2017-2020 Lincoln MKZ, N/A; includes thermostat, housing, and seal.
- Fits 2017-2019 Ford Escape, N/A; includes thermostat, housing, and seal.
- Fits 2016-2019 Ford Explorer, N/A; includes thermostat, housing, and seal.
- Fits 2015-2019 Lincoln MKC, N/A; includes thermostat, housing, and seal.
- Fits 2015-2018 Ford Edge, N/A; includes thermostat, housing, and seal.
- Fits 2016-2018 Ford Focus, N/A; includes thermostat, housing, and seal.
Common Repair Uses
- Replacing a leaking thermostat housing on a Ford Mustang cooling system
- Restoring proper coolant temperature control on a Ford Explorer or Ford Edge
- Addressing coolant seepage at the housing seal or O-ring
- Correcting thermostat sticking that can affect engine warm-up and operating temperature
- Servicing a cracked or heat-aged integrated housing assembly
Installation Notes
Verify engine application by year, make, and model before installation. This assembly uses a mechanical thermostat design and includes the seal pre-installed, but mounting hardware is not included. Inspect the mating surfaces, flush contaminated coolant if needed, and confirm the outlet port sizes and hose routing match the original part. Motorad 1010-170 is also referenced under cross-reference number 170-0101 for the same application.
Quality Assurance
Motorad manufactures this integrated housing thermostat to OE quality standards as an OE supplier. The part is thermal shock validated and 100% leak tested to support dependable cooling system performance in demanding service conditions.
This part fits 45 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2023 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2023 | Ford | Transit Connect | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2022 | Ford | EcoSport | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2022 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2021 | Ford | EcoSport | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2021 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2021 | Ford | Transit Connect | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Ford | EcoSport | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Ford | Fusion | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Ford | Transit Connect | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2020 | Lincoln | MKZ | 2.0L | L4 | GAS | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | EcoSport | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | Escape | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | Explorer | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | Fusion | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Ford | Transit Connect | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Lincoln | MKC | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2019 | Lincoln | MKZ | 2.0L | L4 | GAS | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | EcoSport | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Edge | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Escape | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Explorer | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Focus | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Fusion | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Lincoln | MKC | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2018 | Lincoln | MKZ | 2.0L | L4 | GAS | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Edge | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Escape | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Explorer | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Focus | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Fusion | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Lincoln | MKC | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2017 | Lincoln | MKZ | 2.0L | L4 | GAS | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2016 | Ford | Edge | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2016 | Ford | Explorer | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2016 | Ford | Focus | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2016 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2016 | Lincoln | MKC | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2015 | Ford | Edge | 2.0L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2015 | Ford | Mustang | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2015 | Lincoln | MKC | 2.3L | L4 | — | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| No rows match your filter. | ||||||
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Motorad — 1010-170170-0101
