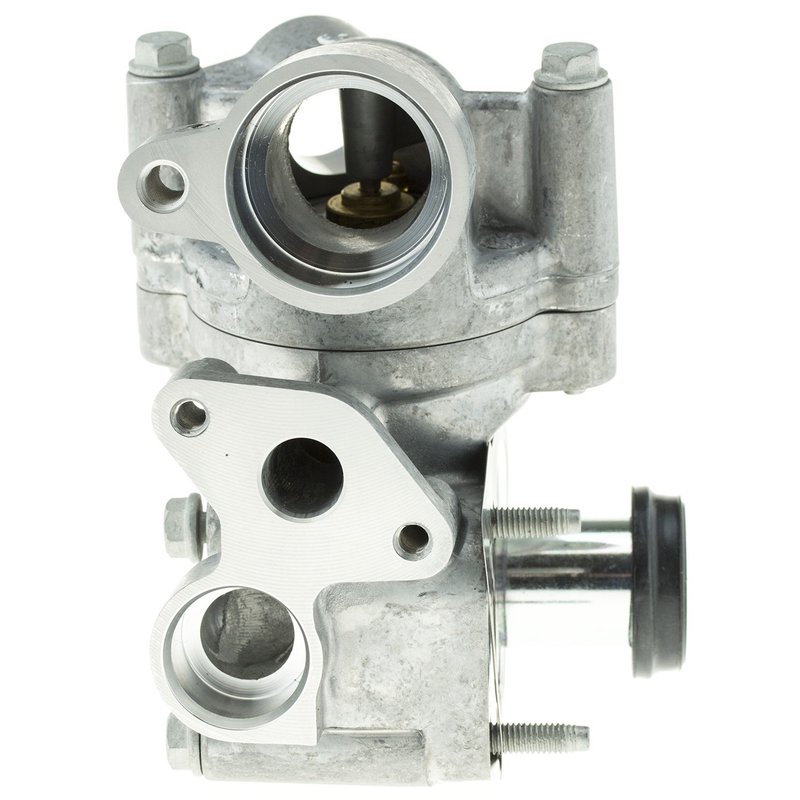

Motorad 1013-180 Engine Coolant Thermostat Housing Assembly

Reliable Engine Coolant Thermostat Housing for Cadillac CTS and STS

The Motorad Integrated Housing Thermostat 1013-180 is engineered to maintain optimal engine temperature for Cadillac CTS and STS models. Designed with durable materials and precise specifications, this thermostat housing assembly ensures efficient coolant flow and temperature regulation.

• Compatible with Cadillac CTS and STS vehicles
• Integrated Housing Thermostat brand line for seamless engine cooling
• Constructed from aluminum, stainless steel, and copper for durability
• Includes bleeder hole and jiggle pin for proper coolant circulation
• Comes with metal gasket and all necessary mounting hardware and bolts
• Three bolt holes and three outlet ports with varied outlet diameters (1.66 in, 1.27 in, 1.22 in)
• Thermostat opens at 180°F to maintain optimal engine temperature

Product Line Details: Integrated Housing Thermostat

The Motorad Integrated Housing Thermostat line combines the thermostat and housing into a single assembly, simplifying installation and improving reliability. This design reduces potential leak points and ensures consistent temperature control. The 1013-180 part number represents a precise fit for Cadillac CTS and STS models, providing a direct replacement with included hardware and metal gasket for a secure seal.

Technical Description and Features

This engine coolant thermostat housing assembly is crafted from a combination of aluminum, stainless steel, and copper, offering corrosion resistance and long service life. The integrated thermostat opens at 180 degrees Fahrenheit, allowing coolant to flow through three outlet ports with diameters of 1.66 inches, 1.27 inches, and 1.22 inches respectively. The inclusion of a bleeder hole and jiggle pin helps eliminate air pockets, promoting efficient coolant circulation. The assembly includes a metal gasket and all necessary bolts and mounting hardware for a complete installation.

Common Applications and Problem Resolution

• Replacement for faulty or leaking thermostat housing assemblies in Cadillac CTS and STS
• Resolves engine overheating caused by thermostat failure
• Eliminates coolant leaks due to worn or damaged gaskets
• Prevents air lock issues in the cooling system with bleeder hole and jiggle pin
• Restores proper coolant flow and engine temperature regulation

Installation Notes and Tips

Installation requires removal of the old thermostat housing assembly. Ensure the engine is cool before beginning work. The included metal gasket and mounting hardware simplify the replacement process. While no installation tool is included, standard hand tools are sufficient. Verify the three bolt holes align correctly with the engine block and tighten bolts to manufacturer torque specifications. Bleed the cooling system after installation to remove trapped air.

Quality Assurance and Warranty

Motorad's Integrated Housing Thermostat assemblies are manufactured to meet OEM specifications for fit and function. The use of high-quality materials such as aluminum, stainless steel, and copper ensures durability and corrosion resistance. This part number 1013-180 is backed by Motorad's quality standards, providing reliable performance for Cadillac CTS and STS vehicles. Warranty details should be confirmed with the original product documentation or supplier.
