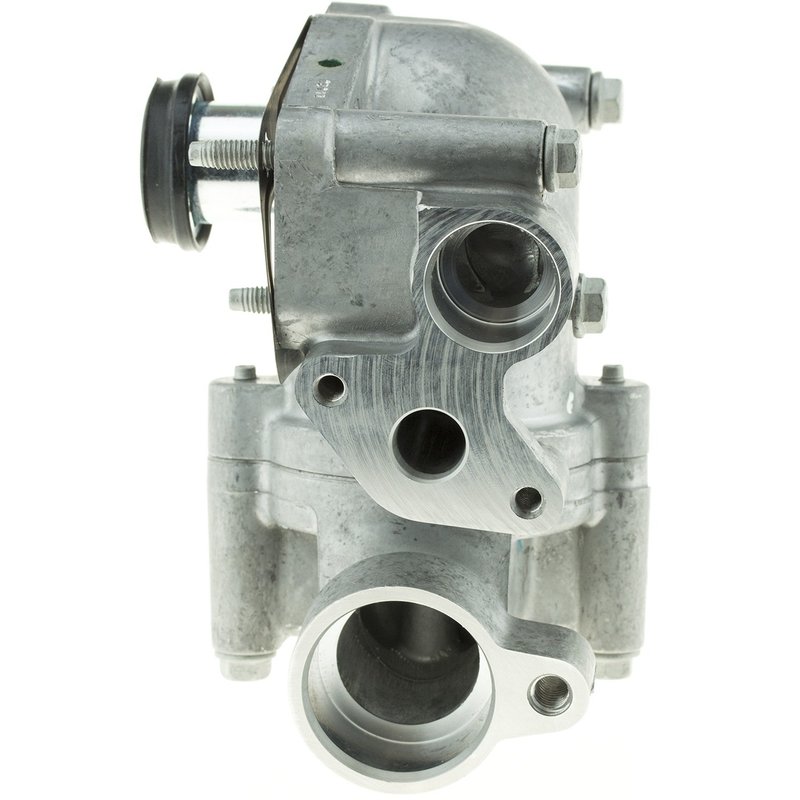

Motorad 1020-180 Engine Coolant Thermostat Housing Assembly

Reliable Engine Coolant Thermostat Housing for Cadillac, Chevrolet, GMC

The Motorad Integrated Housing Thermostat 1020-180 is engineered to maintain optimal engine temperature for select Cadillac, Chevrolet, and GMC models. Designed for durability and precise temperature control, this thermostat housing assembly supports efficient engine cooling and performance.

• Compatible with Cadillac ATS, Chevrolet Camaro, GMC Canyon, Colorado, and CTS models
• Integrated thermostat with a 180°F opening temperature
• Constructed from aluminum, stainless steel, and copper for strength and corrosion resistance
• Includes metal gasket/seal and mounting hardware for secure installation
• Features a bleeder hole and jiggle pin for effective air release and coolant flow
• Three bolt holes and two outlet ports with diameters of 1.23 in and 1.75 in
• Bolts included for a complete assembly

About the Motorad Integrated Housing Thermostat Product Line

The Integrated Housing Thermostat line by Motorad combines the thermostat and housing into a single assembly, simplifying installation and improving reliability. This design reduces potential leak points and ensures consistent temperature regulation, making it suitable for various GM vehicles requiring precise engine coolant management.

Product Details and Specifications

The Motorad 1020-180 thermostat housing assembly is crafted from a combination of aluminum, stainless steel, and copper, providing a robust and corrosion-resistant solution. It features a thermostat that starts to open at 180 degrees Fahrenheit, maintaining engine temperature within optimal ranges. The assembly includes a metal gasket for a secure seal, three bolt holes for mounting, and two outlet ports sized at 1.23 inches and 1.75 inches to accommodate coolant flow. Additional features such as a bleeder hole and jiggle pin help eliminate trapped air, enhancing cooling system efficiency.

Common Applications and Problem Solving

• Replaces faulty or leaking thermostat housings in Cadillac ATS and CTS models
• Restores proper coolant flow in Chevrolet Camaro engines
• Addresses overheating issues in GMC Canyon and Colorado vehicles
• Prevents coolant leaks caused by worn or damaged seals
• Improves engine temperature regulation for consistent performance

Installation Notes and Tips

Installation of the Motorad 1020-180 thermostat housing assembly requires removal of the old housing and thermostat. The included metal gasket and mounting hardware ensure a secure fit. Note that an installation tool is not included, so appropriate hand tools will be necessary. Ensure the cooling system is properly bled using the bleeder hole and jiggle pin to avoid air pockets. Tighten bolts evenly to manufacturer torque specifications to prevent leaks.

Quality Assurance and Warranty

Motorad manufactures this thermostat housing assembly to meet OEM standards for fit and function. The use of durable materials such as aluminum, stainless steel, and copper contributes to long service life. This part number 1020-180 is backed by Motorad's quality control processes, although specific warranty details should be confirmed with the supplier or manufacturer.
