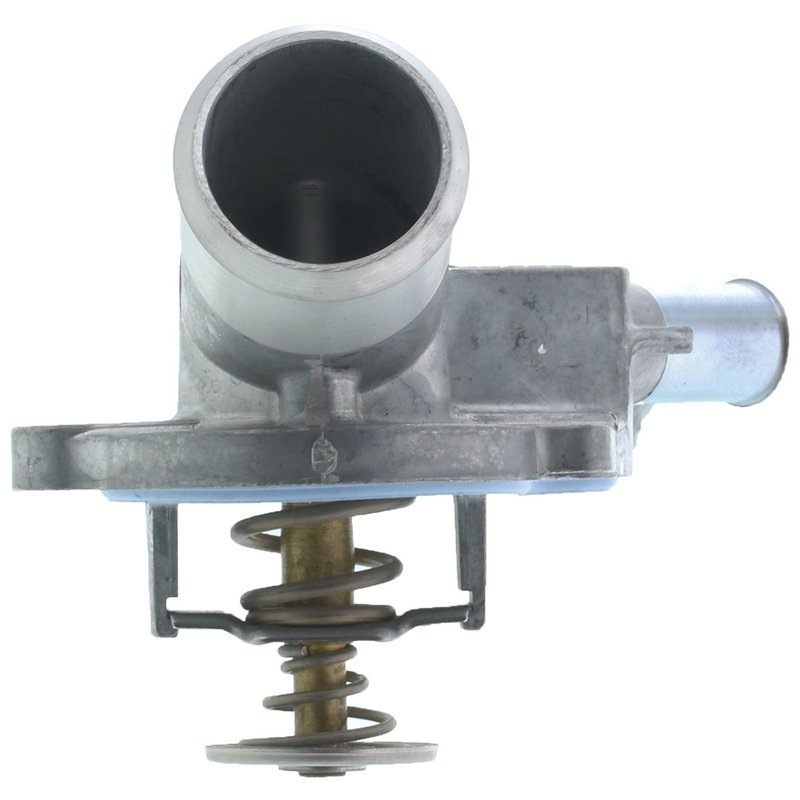

Motorad 1050-180 Engine Coolant Thermostat Housing Assembly

Overview of Motorad Integrated Housing Thermostat 1050-180

The Motorad Integrated Housing Thermostat 1050-180 is designed specifically for Oldsmobile Intrigue models, providing reliable engine temperature regulation. This engine coolant thermostat housing assembly ensures proper coolant flow and temperature control to maintain optimal engine performance.

• Compatible with Oldsmobile Intrigue vehicles
• Engine coolant thermostat housing assembly with integrated thermostat
• Opening temperature set at 180°F for precise temperature control
• Durable metal construction with silver finish
• Includes a rubber gasket for a secure seal
• Features three outlet ports with diameters of 1.56 in, 0.75 in, and 0.63 in
• Two bolt holes with 2.98-inch center-to-center spacing
• Flange dimensions: 3.94 in length and width, 0.39 in thickness

Detailed Product Description

The Motorad 1050-180 thermostat housing assembly integrates the thermostat directly into the housing, simplifying installation and reducing potential leak points. Constructed from metal with a silver finish, this part is built to withstand the thermal stresses of engine operation. The thermostat opens at 180 degrees Fahrenheit, ensuring the engine reaches and maintains the correct operating temperature. The housing includes three outlet ports of varying diameters (1.56 in, 0.75 in, and 0.63 in) to accommodate coolant flow requirements. The flange measures 3.94 inches in both length and width, with a thickness of 0.39 inches, and features two bolt holes spaced 2.98 inches apart for secure mounting. A rubber gasket is included to provide a reliable seal between the housing and engine block.

About the Integrated Housing Thermostat Product Line

The Motorad Integrated Housing Thermostat line combines the thermostat and housing into a single assembly, streamlining the cooling system component and reducing installation complexity. This design minimizes the risk of leaks and improves coolant flow efficiency. The 1050-180 model is part of this line, tailored for specific vehicle applications such as the Oldsmobile Intrigue, ensuring precise fitment and performance.

Common Applications and Issues Addressed

• Replacement for faulty or leaking thermostat housings in Oldsmobile Intrigue
• Resolves engine overheating caused by thermostat failure
• Prevents coolant leaks due to worn or damaged housing seals
• Restores proper coolant flow and engine temperature regulation
• Addresses issues related to inconsistent engine warm-up times

Installation Notes and Tips

• Ensure engine is cool before beginning installation to avoid burns
• Use the included rubber gasket to prevent coolant leaks
• Torque bolts to manufacturer specifications; bolts are not included
• Inspect coolant hoses and connections during installation for wear
• Bleeder hole is not present; follow vehicle-specific bleeding procedures

Quality Assurance and Warranty

Motorad manufactures the 1050-180 thermostat housing assembly to meet OEM standards for durability and performance. The metal construction and integrated design contribute to long service life. This part includes a rubber gasket to ensure a proper seal. Warranty information is provided by Motorad and should be verified at the time of purchase.
