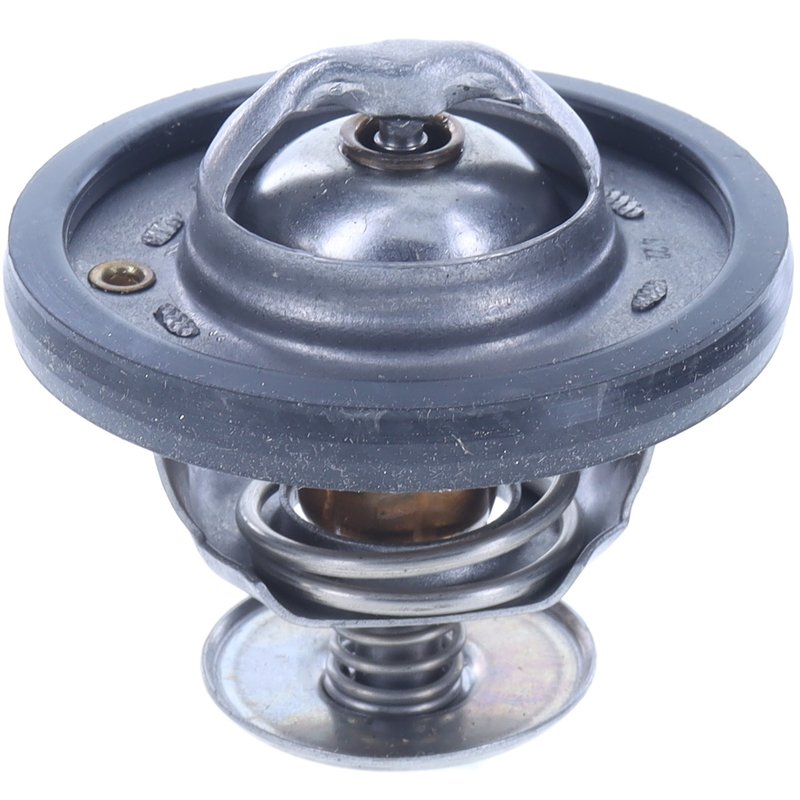

Motorad 1067-190 Engine Coolant Thermostat
| Brand | Motorad 1067-190 |
|---|---|
| Material | Copper |
| Material | Steel |
| 10522 | Yes |
| Sealing Flange Outside Diameter | 2.15 |
| Sealing Flange Outside Diameter | 54.61 |
| Height Between Flanges | 1.19 |
| Height Between Flanges | 30.23 |
| MAP Controlled | No |
| Design | Oem |
| Color | Brass |
| Color | Silver |
| Gasket Or Seal Required | Yes |
| Bolt Hole Quantity | 0 |
| Type | Estándar |
| Type | Standard |
| Height | 2.10 |
| Height | 53.34 |
| Grade Type | Oem |
| Gasket Or Seal Included | Yes |
| Gasket Quantity | 0 |
| Jiggle Pin Weep Hole | Yes |
| Seal Type | O-ring |
| Start to Open Temperature | 190.0 |
| Start to Open Temperature | 87.78 |
| Installation Tool Included | No |
| Flange Thickness | 0.03 |
| Flange Thickness | 0.76 |
| Electric | No |
| Gasket Or Seal Material | Caucho |
| Gasket Or Seal Material | Rubber |
| Product line | Standard |
| Fits | Ford · 20 vehicles |
OE supplier quality. Built with OEM materials and processes for dependable cooling performance.
Copper case. Wax compound responds quickly to coolant temperature changes.
OEM design. Standard thermostat with an included O-ring seal.
Cross-references Motorad 1067-190, 190-7601 and XS7Z8575A for the same application. See all 3.
Motorad 1067-190 Engine Coolant Thermostat
Motorad 1067-190 is an OEM-style engine coolant thermostat built with copper and steel materials for consistent cooling-system control. It opens at 190°F and uses a wax compound for quick response to coolant temperature changes, helping maintain stable engine operating temperature in demanding service.
Compatible with Ford Transit-150, Transit-250, Transit-350, and Transit-350 HD applications from 2015-2019, this thermostat is a direct-fit cooling system service part for Transit van maintenance. The Motorad Standard line focuses on OE-spec construction for everyday repair work.
Key Features
- Engine coolant thermostat with OEM design and grade type
- 190°F start-to-open temperature for regulated coolant flow
- Copper case and wax compound for fast temperature response
- Steel and copper construction with brass/silver finish
- Gasket or seal included; O-ring seal type
- Jiggle pin weep hole for air bleeding during service
- Electric: No
Product Details
Motorad 1067-190 is engineered to OE specifications and manufactured by an OE supplier using OEM-quality materials and processes. The thermostat is built for Ford Transit cooling systems that require precise temperature control, including 2015-2019 Ford Transit-150, 2015-2019 Ford Transit-250, 2015-2019 Ford Transit-350, and 2015-2019 Ford Transit-350 HD. This part cross-references 190-7601 and XS7Z8575A for the same application.
Common Cooling Issues It May Address
- Engine running too cool or too hot
- Delayed coolant circulation after warm-up
- Temperature fluctuation during stop-and-go driving
- Cooling system service on Ford Transit vans
- Thermostat replacement during overheating diagnosis
Installation Notes and Tips
Replace the thermostat with the correct gasket or seal and verify the sealing flange dimensions during installation. Confirm the thermostat orientation and coolant bleed procedure, especially when servicing Ford Transit-150, Transit-250, Transit-350, or Transit-350 HD cooling systems. Inspect the housing and mating surfaces before reassembly to help maintain a proper seal.
Quality Assurance
Built to OEM specifications and manufactured by an OE supplier, Motorad 1067-190 is produced to meet OEM quality materials and safety standards for cooling-system service.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2019 | Ford | Transit-150 | 3.2L | L5 | Standard |
| 2019 | Ford | Transit-250 | 3.2L | L5 | Standard |
| 2019 | Ford | Transit-350 | 3.2L | L5 | Standard |
| 2019 | Ford | Transit-350 HD | 3.2L | L5 | Standard |
| 2018 | Ford | Transit-150 | 3.2L | L5 | Standard |
| 2018 | Ford | Transit-250 | 3.2L | L5 | Standard |
| 2018 | Ford | Transit-350 | 3.2L | L5 | Standard |
| 2018 | Ford | Transit-350 HD | 3.2L | L5 | Standard |
| 2017 | Ford | Transit-150 | 3.2L | L5 | Standard |
| 2017 | Ford | Transit-250 | 3.2L | L5 | Standard |
| 2017 | Ford | Transit-350 | 3.2L | L5 | Standard |
| 2017 | Ford | Transit-350 HD | 3.2L | L5 | Standard |
| 2016 | Ford | Transit-150 | 3.2L | L5 | Standard |
| 2016 | Ford | Transit-250 | 3.2L | L5 | Standard |
| 2016 | Ford | Transit-350 | 3.2L | L5 | Standard |
| 2016 | Ford | Transit-350 HD | 3.2L | L5 | Standard |
| 2015 | Ford | Transit-150 | 3.2L | L5 | Standard |
| 2015 | Ford | Transit-250 | 3.2L | L5 | Standard |
| 2015 | Ford | Transit-350 | 3.2L | L5 | Standard |
| 2015 | Ford | Transit-350 HD | 3.2L | L5 | Standard |
