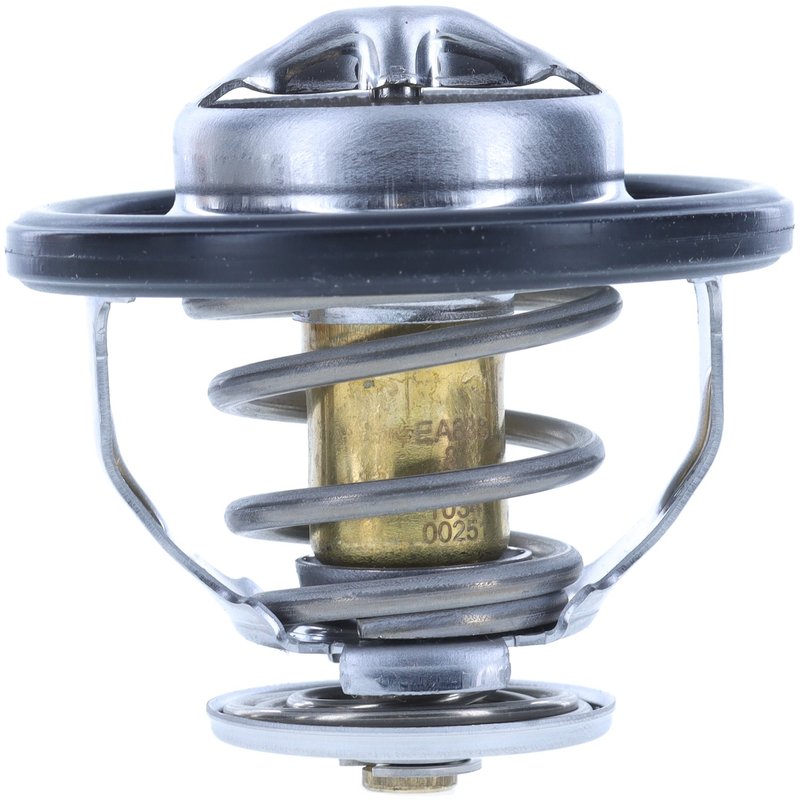

Motorad 1070-180 Engine Coolant Thermostat
OE Quality 60-Day Returns
Motorad
 Standard

Motorad 1070-180 Engine Coolant Thermostat

Brand Motorad 1070-180
Material Copper
Material Steel
10522 Yes
Sealing Flange Outside Diameter 2.25
Sealing Flange Outside Diameter 57.15
Height Between Flanges 1.35
Height Between Flanges 34.29
MAP Controlled No
Design Oem
Color Brass
Color Silver
Gasket Or Seal Required Yes
Bolt Hole Quantity 0
Type Estándar
Type Standard
Height 2.26
Height 57.40
Grade Type Oem
Gasket Or Seal Included Yes
Gasket Quantity 0
Jiggle Pin Weep Hole Yes
Seal Type O-ring
Start to Open Temperature 180.0
Start to Open Temperature 82.22
Installation Tool Included No
Flange Thickness 0.05
Flange Thickness 1.27
Electric No
Gasket Or Seal Material Caucho
Gasket Or Seal Material Rubber
Product line Standard
Fits Hyundai and Kia · 29 vehicles

OE supplier quality. Built with OEM materials and processes for dependable cooling performance.

Copper case. Works with a wax compound for rapid response to coolant temperature changes.

OEM design. Includes a gasket or seal with an O-ring sealing type.

Cross-references Beck/Arnley 180-0701, Motorad 1070-180 and 255002GGA0 for the same application. See all 3.

$38.80Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $38.80
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat options

OE-Style Engine Coolant Thermostat

The Motorad Standard 1070-180 engine coolant thermostat is built for precise coolant temperature control in modern Hyundai and Kia cooling systems. It uses OEM-quality materials and OE-supplier manufacturing processes to deliver consistent response as coolant temperature changes.

Compatible With 2015-2022 Hyundai and Kia applications including Sonata, Santa Fe Sport, Santa Fe, Tucson, Sportage, Optima, and Sorento.

Key Features

  • OE-style design for factory-fit cooling system service
  • Copper case with wax compound for rapid reaction to coolant temperature changes
  • Start to open temperature: 180°F (82.22°C)
  • Sealing flange outside diameter: 2.25 in. (57.15 mm)
  • Height between flanges: 1.35 in. (34.29 mm)
  • Jiggle pin weep hole included for air bleeding during service
  • Gasket or seal included; O-ring seal type
  • Motorad Standard 1070-180 for OE-style replacement service

Product Details

Motorad Standard focuses on replacement cooling components built to OEM specifications and processes. This thermostat is constructed with copper and steel materials, brass and silver finish details, and an OE-grade design intended to maintain stable engine operating temperature in demanding cooling systems. The Motorad 1070-180 is a direct-fit style thermostat for select Hyundai and Kia vehicles, including 2015-2019 Hyundai Sonata, 2017-2018 Hyundai Santa Fe Sport, 2019-2020 Hyundai Santa Fe, 2018-2021 Hyundai Tucson, 2016-2020 Kia Optima, 2016-2020 Kia Sorento, and 2017-2022 Kia Sportage.

This part cross-references Beck/Arnley 180-0701 for the same application.

What It Helps Address

  • Engine running too cool or too hot due to thermostat wear
  • Delayed coolant flow regulation after warm-up
  • Temperature fluctuation in the cooling system
  • Coolant circulation issues related to a sticking thermostat
  • Service replacement for OE-style thermostat failure

Installation Notes

Verify engine application by year, make, and model before installation. The gasket or seal is included, and the seal type is O-ring. Clean the housing sealing surfaces thoroughly and inspect the cooling system for contamination, trapped air, or damaged hoses before reassembly. Follow the vehicle manufacturer’s coolant fill and bleed procedure to help ensure proper thermostat operation.

Quality Assurance

Manufactured by an OE supplier using OEM-quality materials and safety standards, this thermostat is built to meet OEM specifications and processes for consistent cooling-system service.

Related reading

This part fits 29 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypeNotes
2022KiaSportage2.4LL4—Standard
2021HyundaiTucson2.4LL4—Standard
2021KiaSportage2.4LL4—Standard
2020HyundaiSanta Fe2.4LL4—Standard
2020HyundaiTucson2.4LL4—Standard
2020KiaOptima2.4LL4—Standard
2020KiaSorento2.4LL4—Standard
2020KiaSportage2.4LL4—Standard
2019HyundaiSanta Fe2.4LL4—Standard
2019HyundaiSonata2.4LL4—Standard
2019HyundaiTucson2.4LL4—Standard
2019KiaOptima2.4LL4—Standard
2019KiaSorento2.4LL4—Standard
2019KiaSportage2.4LL4—Standard
2018HyundaiSanta Fe Sport2.4LL4—Standard
2018HyundaiSonata2.4LL4—Standard
2018HyundaiTucson2.4LL4—Standard
2018KiaOptima2.4LL4—Standard
2018KiaSorento2.4LL4—Standard
2018KiaSportage2.4LL4—Standard
2017HyundaiSanta Fe Sport2.4LL4—Standard
2017HyundaiSonata2.4LL4—Standard
2017KiaOptima2.4LL4—Standard
2017KiaSorento2.4LL4—Standard
2017KiaSportage2.4LL4—Standard
2016HyundaiSonata2.4LL4—Standard
2016KiaOptima2.4LL4GASStandard
2016KiaSorento2.4LL4—Standard
2015HyundaiSonata2.4LL4GASStandard
Directly replaces or cross-references 3 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Beck/Arnley — 180-0701Motorad — 1070-180255002GGA0
