MotoradPart #: 1107-200

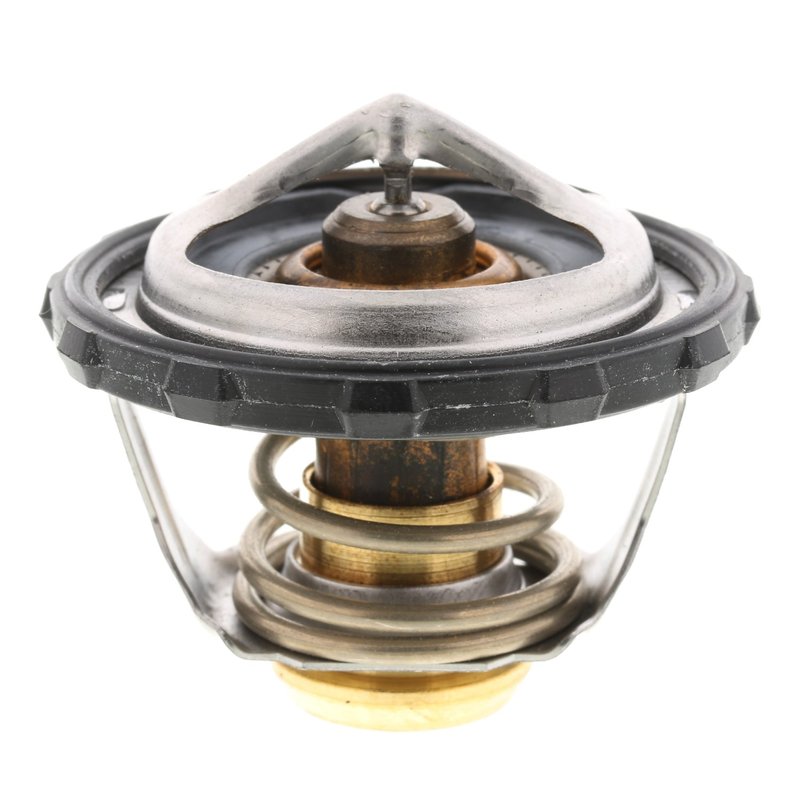

Motorad 1107-200 Engine Coolant Thermostat
4 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$36.90Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship
Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Standard
Fitment: Nissan, TITAN XD
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Coolant Thermostat options
Motorad 1107-200 Engine Coolant Thermostat
| Brand | Motorad |
|---|---|
| Part Number | 1107-200 |
| Position | Standard |
| Sealing Flange Outside Diameter | 2.09 |
| Height Between Flanges | 0.72 |
| Type | Standard |
| Gasket Or Seal Included | Yes |
| Jiggle Pin Weep Hole | No |
| Seal Type | O-ring |
| Start to Open Temperature | 200 |
| Bypass Plate Diameter | 0.88 in |
| Bypass Plate Diameter (in) | 0.88 |
| Flange Diameter (With Seal) | 2.12 in |
| Flange Diameter (With Seal) (in) | 2.12 |
| Flange Diameter (Without Seal) | 2.09 in |
| Flange Diameter (Without Seal) (in) | 2.09 |
| Freight Class | 70 |
| Height from Flange to Bottom | 1.34 in |
| Height from Flange to Bottom (in) | 1.34 |
| Height from Flange to Top of Bridge | 0.72 in |
| Height from Flange to Top of Bridge (in) | 0.72 |
| Temperature | 200 deg. f |
| Temperature (F) | 200 degrees |
This part fits 4 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2019 | Nissan | TITAN XD | 5.0L | V8 | N/A | Temperature 200F; Includes thermostat and seal; OE Specified Temperature; Standard |
| 2018 | Nissan | TITAN XD | 5.0L | V8 | N/A | Temperature 200F; Includes thermostat and seal; OE Specified Temperature; Standard |
| 2017 | Nissan | TITAN XD | 5.0L | V8 | N/A | Temperature 200F; Includes thermostat and seal; OE Specified Temperature; Standard |
| 2016 | Nissan | TITAN XD | 5.0L | V8 | N/A | Temperature 200F; Includes thermostat and seal; OE Specified Temperature; Standard |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
11061EZ40A1107-20011072200-70114995291107200
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
