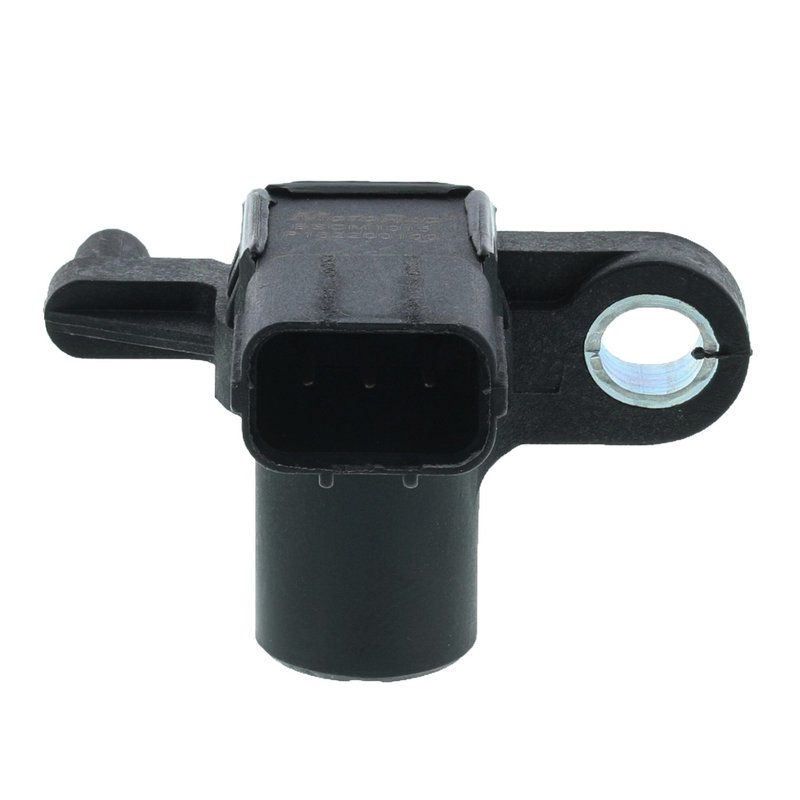

Motorad 1CS115 Engine Camshaft Position Sensor

Engine Camshaft Position Sensor for Honda and Acura

The Motorad 1CS115 engine camshaft position sensor is an OE replacement built for accurate camshaft signal input and stable engine management. It is a direct-fit choice for 2001-2005 Honda Civic and 2001-2005 Acura EL applications that require a 3-wire, blade-terminal sensor with a rectangular female connector.

Key Features

• OE replacement camshaft position sensor for engine management systems
• Fits 2001-2005 Honda Civic and 2001-2005 Acura EL
• Black housing with rectangular female connector
• 3 blade terminals and 3-wire design
• No wiring harness included
• No mounting bracket included
• Manufactured in IATF 16949 certified facilities

Detailed Description

Motorad 1CS115 is an engine camshaft position sensor engineered to match OEM fit and signal requirements for select Honda and Acura vehicles. By providing accurate camshaft position data to the engine control system, this sensor supports proper ignition timing and fuel delivery on 2001-2005 Honda Civic and 2001-2005 Acura EL models. This part cross-references Honda/Acura OE numbers such as 37840PLC000 and 37840PLC005 for the same application.

The sensor features a rectangular female connector, 3 blade terminals, and a regular-grade black housing. It is built as a direct OE replacement and is backed by Motorad’s limited lifetime warranty.

Common Issues This Sensor Can Address

• Camshaft position sensor fault codes
• Hard starting or extended crank conditions
• Rough idle or inconsistent engine operation
• Intermittent stalling related to cam signal loss
• Check engine light triggered by camshaft sensor failure

Installation Notes and Tips

Verify connector shape, terminal count, and wire configuration before installation. Inspect the harness connector for corrosion or damaged terminals, and confirm the sensor seats fully in the original mounting location. For 2001-2005 Honda Civic and Acura EL service, compare the removed part to Motorad 1CS115 before final assembly.

Quality Assurance

Motorad manufactures this camshaft position sensor in IATF 16949 certified facilities to support consistent OE-level accuracy and engine operation. The part number 1CS115 is covered by a limited lifetime warranty.
