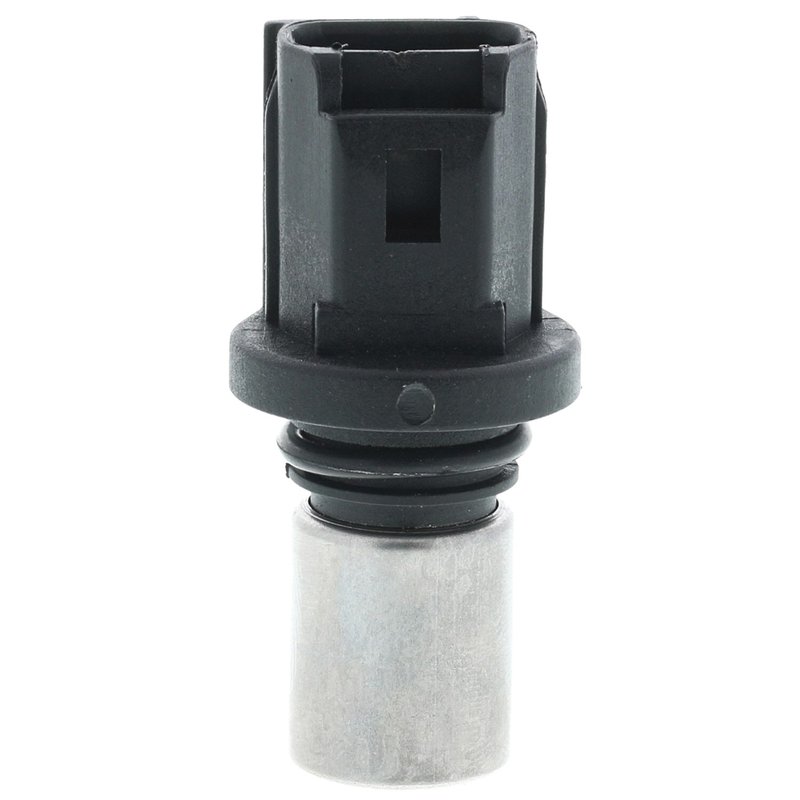

Motorad 1CS208 Engine Camshaft Position Sensor
| Brand | Motorad 1CS208 |
|---|---|
| Color | Black |
| Terminal Type | Blade |
| Wire Quantity | 2 |
| Grade Type | Regular |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Terminal Quantity | 2 |
| Connector Gender | Female |
| Terminal Gender | Male |
| Wiring Harness Included | No |
| Mounting Bracket Included | No |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Rectangular |
| Grade Type | Regular |
| Hazardous Material | No |
| Mounting Bracket Included | No |
| OE Replacement | Yes |
| Quantity Per Application | 1 |
| Resistance | 2153 ohms ± 15% |
| Resistance (?) | 2.153k ohms ± 15% |
| Terminal Quantity | 2 |
| Terminal Type | Blade |
| Fits | Scion and Toyota · 51 vehicles |
OE replacement. Matches OEM accuracy for dependable engine management.
IATF 16949 certified manufacturing supports consistent quality.
Rectangular female connector with blade terminals for a secure electrical connection.
Cross-references Motorad 1CS208, 2132491 and 89054229 for the same application. See all 4.
Engine Camshaft Position Sensor for Toyota and Scion
The Motorad 1CS208 engine camshaft position sensor is an OE replacement built for accurate camshaft signal input and consistent engine management performance. It is a direct-fit option for select Toyota Prius, Yaris, Echo, Rush, Prius C, Yaris R, and Scion xA/xB applications.
Key Features
- OE replacement camshaft position sensor for select Toyota and Scion vehicles
- Black housing with rectangular female connector
- 2 blade terminals with 2-wire design
- Regular grade sensor construction
- Resistance specification: 2153 ohms ±15% (2.153k ohms ±15%)
- No wiring harness included
- No mounting bracket included
- Manufactured in IATF16949 certified facilities
Detailed Description
Motorad 1CS208 is an engine camshaft position sensor engineered to match OE fit and signal requirements for select Toyota and Scion models. It supports accurate camshaft position feedback to the engine control system, helping maintain proper timing-related engine operation. This part cross-references OE numbers such as 2132491 and 89054229 for the same application. Common search terms for this part include Toyota Prius camshaft position sensor, Toyota Yaris camshaft sensor replacement, and Scion xB engine position sensor.
Compatible With 2001-2009 Toyota Prius, 2000-2005 Toyota Echo, 2006-2018 Toyota Yaris, 2009 Toyota Rush, 2012-2021 Toyota Prius C, 2004-2006 Scion xA, 2004-2006 Scion xB, and 2016-2018 Toyota Yaris R. The Motorad 1CS208 is a practical OE-style replacement for drivers servicing Toyota Prius, Yaris, and related compact models.
What It Helps Address
- Camshaft position signal faults
- Check engine light concerns related to cam sensor input
- Rough running caused by incorrect cam timing data
- Hard starting tied to sensor signal loss
- Intermittent engine management performance issues
Installation Notes and Tips
Verify the connector shape, terminal count, and resistance specification before installation. This sensor uses a rectangular female connector with blade terminals and does not include a wiring harness or mounting bracket. Confirm vehicle application by year, make, and model before replacing the original sensor.
Quality Assurance
Motorad manufactures this camshaft position sensor in IATF16949 certified facilities to support consistent quality control. The 1CS208 is backed by a limited lifetime warranty.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2021 | Toyota | Prius C | 1.5L | L4 | — |
| 2020 | Toyota | Prius C | 1.5L | L4 | — |
| 2019 | Toyota | Prius C | 1.5L | L4 | — |
| 2018 | Toyota | Prius C | 1.5L | L4 | — |
| 2018 | Toyota | Yaris | 1.5L | L4 | — |
| 2018 | Toyota | Yaris | — | — | — |
| 2018 | Toyota | Yaris R | 1.5L | L4 | — |
| 2017 | Toyota | Prius C | 1.5L | L4 | — |
| 2017 | Toyota | Yaris | 1.5L | L4 | — |
| 2017 | Toyota | Yaris | — | — | — |
| 2017 | Toyota | Yaris R | 1.5L | L4 | — |
| 2016 | Toyota | Prius C | 1.5L | L4 | — |
| 2016 | Toyota | Yaris | 1.5L | L4 | — |
| 2016 | Toyota | Yaris | — | — | — |
| 2016 | Toyota | Yaris R | 1.5L | L4 | — |
| 2015 | Toyota | Prius C | 1.5L | L4 | — |
| 2015 | Toyota | Yaris | — | — | — |
| 2014 | Toyota | Prius C | 1.5L | L4 | — |
| 2014 | Toyota | Yaris | — | — | — |
| 2013 | Toyota | Prius C | 1.5L | L4 | — |
| 2013 | Toyota | Yaris | — | — | — |
| 2012 | Toyota | Prius C | 1.5L | L4 | — |
| 2012 | Toyota | Yaris | — | — | — |
| 2011 | Toyota | Yaris | — | — | — |
| 2010 | Toyota | Yaris | — | — | — |
| 2009 | Toyota | Prius | — | — | — |
| 2009 | Toyota | Rush | 1.5L | L4 | — |
| 2009 | Toyota | Yaris | — | — | — |
| 2008 | Toyota | Prius | — | — | — |
| 2008 | Toyota | Yaris | — | — | — |
| 2007 | Toyota | Prius | — | — | — |
| 2007 | Toyota | Yaris | — | — | — |
| 2006 | Scion | xA | — | — | — |
| 2006 | Scion | xB | — | — | — |
| 2006 | Toyota | Prius | — | — | — |
| 2006 | Toyota | Yaris | — | — | — |
| 2005 | Scion | xA | — | — | — |
| 2005 | Scion | xB | — | — | — |
| 2005 | Toyota | Echo | — | — | — |
| 2005 | Toyota | Prius | — | — | — |
| 2004 | Scion | xA | — | — | — |
| 2004 | Scion | xB | — | — | — |
| 2004 | Toyota | Echo | — | — | — |
| 2004 | Toyota | Prius | — | — | — |
| 2003 | Toyota | Echo | — | — | — |
| 2003 | Toyota | Prius | — | — | — |
| 2002 | Toyota | Echo | — | — | — |
| 2002 | Toyota | Prius | — | — | — |
| 2001 | Toyota | Echo | — | — | — |
| 2001 | Toyota | Prius | — | — | — |
| 2000 | Toyota | Echo | — | — | — |
