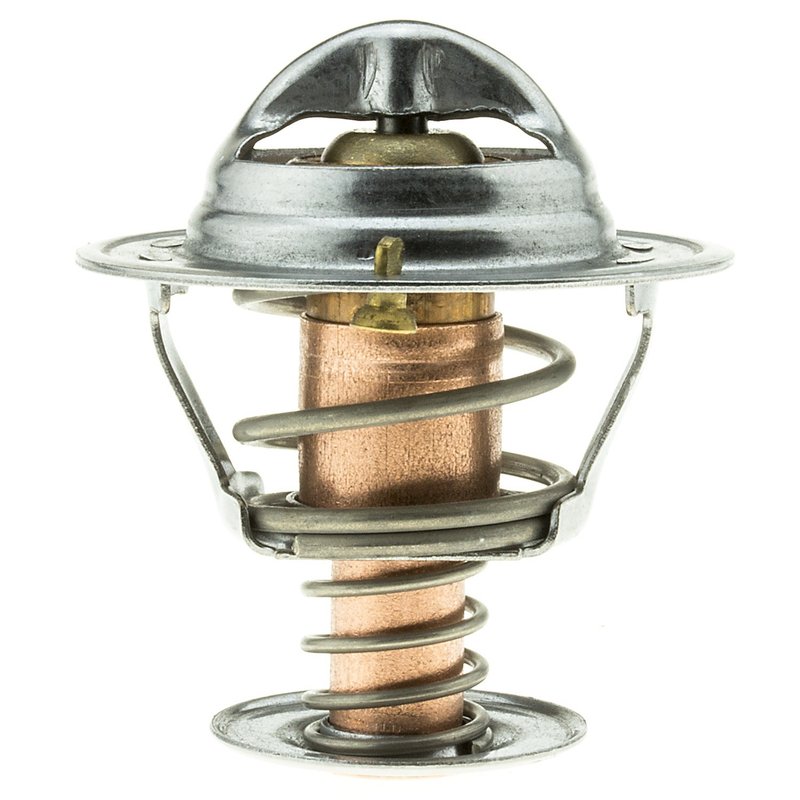

Motorad 214-170JV Engine Coolant Thermostat

Reliable Engine Coolant Thermostat for Chevrolet, Toyota, Nissan, and Geo

The Motorad Standard 214-170JV engine coolant thermostat is designed to maintain optimal engine temperature for a range of vehicles including Chevrolet, Toyota, Nissan, and Geo models. Engineered to open at 170°F, this thermostat ensures efficient coolant flow and engine performance.

• Standard type engine coolant thermostat with jiggle pin weep hole
• Sealing flange outside diameter: 1.89 inches
• Height between flanges: 1.51 inches; overall height: 2.15 inches
• Bypass diameter: 1.09 inches; bypass length: 1.37 inches
• Flange thickness: 0.05 inches; no gasket or seal included
• Start to open temperature: 170°F for precise temperature regulation

Detailed Product Description

The Motorad Standard 214-170JV thermostat is a precision-engineered component designed to regulate engine coolant flow by opening at a temperature of 170 degrees Fahrenheit. Featuring a jiggle pin weep hole, it allows trapped air to escape, preventing airlock and ensuring consistent coolant circulation. The thermostat’s sealing flange outside diameter measures 1.89 inches, with a height between flanges of 1.51 inches and an overall height of 2.15 inches, making it compatible with specific engine housings. The bypass diameter of 1.09 inches and bypass length of 1.37 inches facilitate proper coolant bypass flow when the thermostat is closed. This part does not include a gasket or seal, so ensure proper sealing during installation.

About the Motorad Standard Product Line

The Standard line from Motorad offers reliable, OEM-quality engine cooling components designed to meet factory specifications. The 214-170JV thermostat is part of this line, providing consistent performance and durability for vehicles requiring a 170°F opening temperature. This product line focuses on delivering dependable replacement parts for routine maintenance and repair.

Compatible Vehicles and Common Applications

• Chevrolet models including Nova, Pickup, and Prizm
• Toyota models such as Camry, Celica, Corolla, MR2, RAV4, Solara, and Tercel
• Nissan models including 200SX, NX, Pulsar NX, Sentra
• Geo models like Paseo

This thermostat is suitable for engine cooling system repairs and replacements in these vehicles, helping to address issues related to engine overheating or poor temperature regulation.

Common Issues Addressed by This Thermostat

• Engine overheating due to thermostat failure
• Inconsistent engine temperature regulation
• Coolant bypass flow problems causing inefficient cooling
• Air trapped in cooling system causing airlock
• Delayed thermostat opening affecting engine warm-up

Installation Notes and Tips

When installing the Motorad Standard 214-170JV thermostat, ensure the engine is cool and the cooling system is depressurized. Verify the sealing flange dimensions match the housing to prevent leaks. Since this part does not include a gasket or seal, use a compatible gasket or sealant as recommended by the vehicle manufacturer. The jiggle pin should be positioned at the top to allow air to escape during coolant circulation. No special installation tools are included or required, but proper torque specifications should be followed to avoid damage.

Quality Assurance and Warranty

Motorad Standard thermostats are manufactured to meet or exceed OEM specifications, ensuring reliable performance and durability. While specific warranty details are not provided, Motorad products typically come with a limited warranty against defects in materials and workmanship. For warranty information, refer to Motorad’s official documentation or contact the parts distributor.
