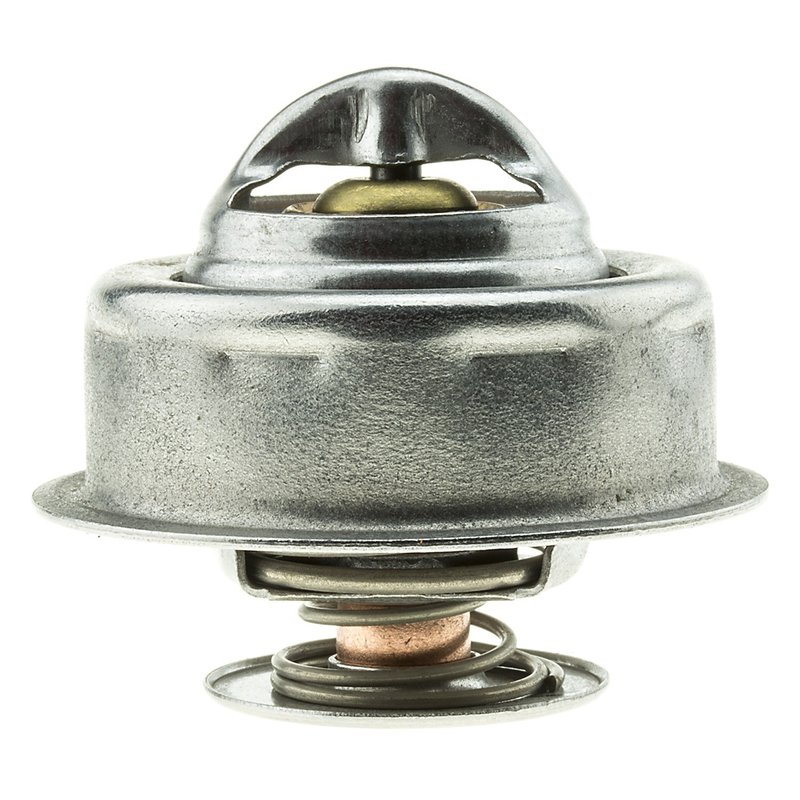

Motorad 216-192 Engine Coolant Thermostat

Overview of Motorad Standard Engine Coolant Thermostat 216-192

The Motorad Standard Engine Coolant Thermostat 216-192 is designed for reliable temperature regulation in select Volvo models. Engineered to maintain optimal engine temperature, this thermostat supports efficient cooling system performance for Volvo 240, 740, 745, 760, 780, 940, DL, and GLE vehicles.

• Sealing flange outside diameter: 2.13 inches
• Height between flanges: 1.28 inches
• Overall height: 1.83 inches
• Standard type thermostat with a start to open temperature of 195°F
• Bypass diameter: 1.16 inches and bypass length: 0.55 inches
• Flange thickness: 0.07 inches
• No gasket or seal included
• No jiggle pin weep hole
• Installation tool not included

Detailed Product Description

This Motorad Standard thermostat, part number 216-192, is specifically designed to fit a range of Volvo models including the 240, 740, 745, 760, 780, 940, DL, and GLE. The thermostat features a sealing flange outside diameter of 2.13 inches and a height between flanges of 1.28 inches, ensuring a precise fit within the cooling system housing. With a start to open temperature of 195 degrees Fahrenheit, it helps maintain the engine within the optimal operating temperature range, preventing overheating and promoting efficient fuel combustion.

The bypass diameter of 1.16 inches and bypass length of 0.55 inches allow for controlled coolant flow during warm-up phases. The flange thickness of 0.07 inches contributes to a secure seal when installed. This thermostat does not include a gasket or seal, so it is recommended to source these separately to ensure proper installation and leak prevention.

About the Motorad Standard Product Line

The Motorad Standard line offers dependable engine cooling components designed to meet OEM specifications. This product line focuses on delivering consistent performance and fitment for a variety of vehicle makes and models. The Standard line balances quality and value, making it suitable for routine maintenance and replacement needs in automotive cooling systems.

Common Applications and Issues Addressed

• Regulates engine temperature to prevent overheating in Volvo 240 and 740 series
• Maintains proper coolant flow for Volvo 760 and 780 models
• Prevents engine damage caused by thermostat failure in Volvo 940, DL, and GLE
• Helps avoid poor heater performance due to stuck thermostat
• Supports efficient engine warm-up and fuel economy

Installation Notes and Tips

• Ensure the cooling system is fully drained before removing the old thermostat
• Verify the sealing flange dimensions match the housing to avoid leaks
• Replace the gasket or seal separately as this thermostat does not include one
• Check for proper orientation during installation to ensure correct thermostat operation
• Test the cooling system for leaks and proper temperature regulation after installation

Quality Assurance and Warranty

The Motorad Standard Engine Coolant Thermostat 216-192 is manufactured to meet industry standards for durability and performance. While specific warranty details are not provided, Motorad products typically adhere to quality control processes to ensure reliable operation within the specified temperature range of 195°F. Proper installation and maintenance are essential to maximize the lifespan of this thermostat.
