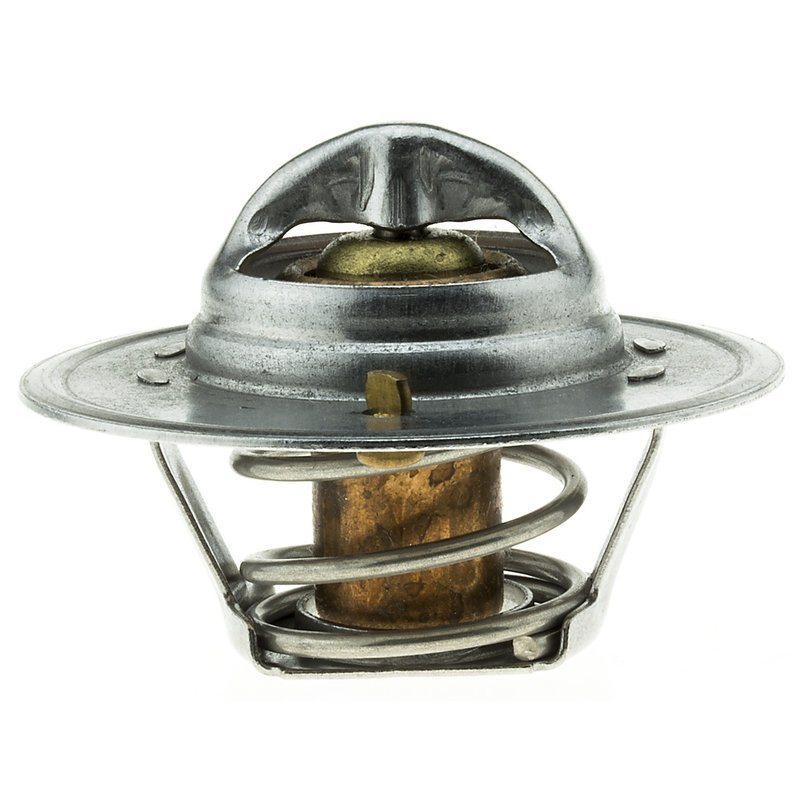

Motorad 241-192 Engine Coolant Thermostat

Engine Coolant Thermostat for OE-Style Cooling Control

The Motorad Standard 241-192 engine coolant thermostat is built for precise temperature control in demanding cooling systems. It opens at 192 degrees F and uses OEM-style materials and construction to support stable coolant flow in a wide range of import and domestic applications.

Compatible With 1983-2008 Mazda B3000, 1984-1985 Mazda 626, 1983 Nissan 280ZX, 1988 Nissan Pulsar NX, 1985-1989 Isuzu I-Mark, 1985-1988 Isuzu Impulse, 1989-1991 Isuzu Amigo, 1992-1994 Isuzu Amigo, 1986-1991 Isuzu Pickup, 1993-1995 Isuzu Pickup, 1992 Isuzu Stylus, 1992-1993 Geo Storm, and 1987 Subaru Standard applications listed in the fitment data.

Key Features

• Motorad Standard line thermostat for OE-style cooling system service
• Part number 241-192 with a 192 degrees F start-to-open temperature
• Copper case and wax compound for responsive temperature changes in coolant flow
• Offset design with an air relief valve where applicable
• Jiggle pin weep hole included for air bleeding during service
• OEM specifications and processes used in manufacturing
• Sealing flange outside diameter: 2.12 in
• Height between flanges: 1.05 in; overall height: 1.5 in

Detailed Description

Motorad 241-192 is an engine coolant thermostat designed for vehicles that require a 192F OE-specified opening temperature. The Standard product line focuses on direct-fit thermostat service with OEM-quality materials, including a copper case and wax element that react quickly to coolant temperature changes. This helps maintain proper engine operating temperature in applications such as Mazda B3000, Mazda 626, and Isuzu Pickup cooling systems.

This part cross-references Gates 24192 and BBB Industries 13859 for the same application. The thermostat is built with a standard design, a jiggle pin weep hole, and OEM-style sealing features where applicable. It is a practical replacement choice for drivers servicing older Mazda, Isuzu, Geo, Nissan, and Subaru cooling systems that call for a 192 degree thermostat.

What It Helps Address

• Engine running too cool or taking too long to reach operating temperature
• Temperature fluctuation caused by a worn thermostat element
• Restricted coolant flow from a thermostat that no longer opens at the correct temperature
• Cooling system service on vehicles requiring a 192F thermostat specification
• Maintenance replacement for aging OE thermostat assemblies

Installation Notes and Tips

Verify the thermostat housing style and temperature specification before installation. Clean the sealing surfaces thoroughly and inspect the housing for corrosion or warpage. The gasket or seal is not included, so use the correct seal for the application where required. The jiggle pin weep hole should be oriented to help air escape during filling and bleeding.

Confirm fitment by year, make, and model before ordering. This part is listed for 2008 Mazda B3000, 1993-1995 Isuzu Pickup, 1986-1991 Isuzu Pickup, 1993-1994 Isuzu Amigo, 1989-1991 Isuzu Amigo, 1992-1993 Geo Storm, 1992 Isuzu Impulse, 1985-1988 Isuzu Impulse, 1992 Isuzu Stylus, 1985-1989 Isuzu I-Mark, 1988 Nissan Pulsar NX, 1987 Subaru Standard, 1984-1985 Mazda 626, and 1983 Nissan 280ZX.

Quality Assurance

Manufactured by an OE supplier using OEM-quality materials and safety standards, this thermostat is built to meet the demands of automotive cooling systems. Motorad’s Standard line emphasizes OE-spec construction and consistent temperature response for service replacement use.
