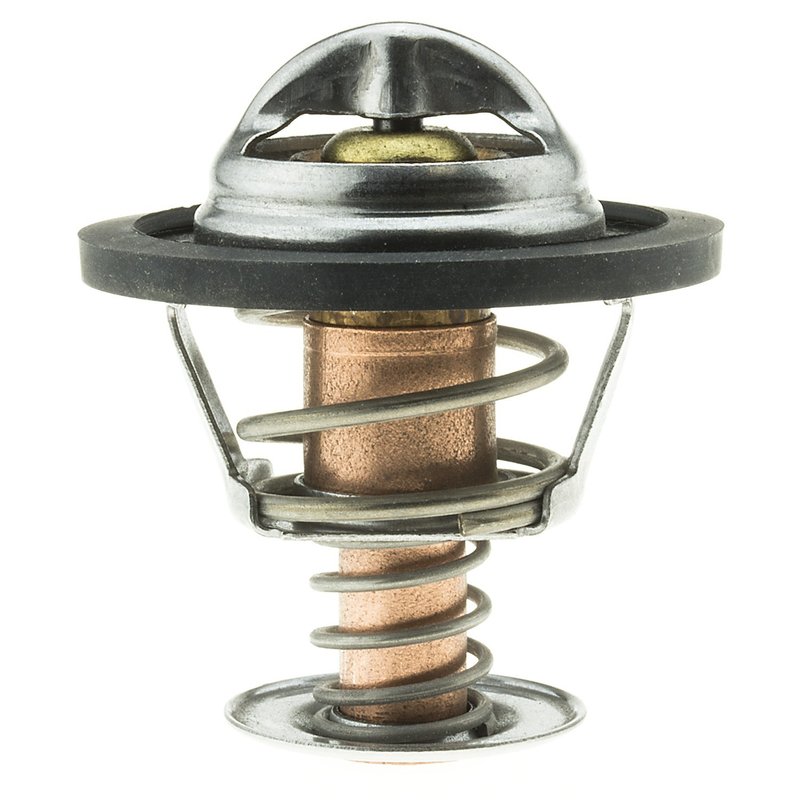

Motorad 243-195 Engine Coolant Thermostat

Engine Cooling Thermostat for OE-Style Temperature Control

The Motorad Standard 243-195 engine coolant thermostat is a 195 degree F replacement thermostat built for OE-style cooling system performance. It uses OEM-quality materials, a copper case, and wax compound construction to respond quickly to coolant temperature changes in applications such as Chevrolet Cavalier, Chevrolet Corsica, Pontiac Tempest, Buick Skyhawk, and Oldsmobile Firenza.

Motorad Standard focuses on direct-fit thermostat service parts with OEM specifications and sealing details where applicable. The 243-195 includes an O-ring seal and is built for standard thermostat replacement in vehicles that call for a 195F opening temperature.

Key Features

• Part number 243-195 engine coolant thermostat
• 195 degree F start-to-open temperature
• Standard thermostat type for OE-style cooling system service
• Copper case and wax compound for responsive temperature regulation
• Offset design with air relief valve
• O-ring seal included; rubber seal material
• OEM specifications and processes used in manufacturing
• Sealing flange outside diameter: 1.81 in
• Height between flanges: 1.52 in
• Bypass diameter: 1.09 in; bypass length: 1.42 in

Detailed Description

Motorad 243-195 is a Standard engine coolant thermostat engineered for vehicles that require a 195F thermostat and OE-style sealing. The copper case and wax compound support quick reaction to coolant temperature shifts, helping the cooling system maintain the intended operating range. The offset design and air relief valve support proper coolant flow and installation alignment where specified by the application.

This thermostat cross-references BBB Industries 13889 and CSF 3889 for the same application. It is a direct replacement choice for 1987-1991 Chevrolet Cavalier, 1987-1991 Chevrolet Corsica, 1987-1991 Pontiac Tempest, 1987-1989 Buick Skyhawk, and 1987-1988 Oldsmobile Firenza applications that call for a 195F thermostat with OE-specified thermostat and seal.

What It Helps Address

• Engine running cooler or hotter than the specified operating range
• Delayed coolant temperature regulation after startup
• Thermostat replacement during cooling system service
• Temperature control issues caused by worn internal thermostat components
• Seal-related leakage at the thermostat housing interface

Installation Notes and Tips

Verify the required opening temperature, seal style, and housing dimensions before installation. This part uses an O-ring seal and does not include an installation tool. Clean the thermostat housing and sealing surfaces thoroughly, then install the thermostat in the correct orientation for the application. Confirm that the bypass dimensions and flange measurements match the original part before assembly.

Quality Assurance

Motorad manufactures this thermostat with OEM-quality materials and safety standards as an OE supplier, using OEM specifications and processes. The 243-195 is built to meet the demands of automotive cooling systems that require consistent temperature control and OE-style fitment.
