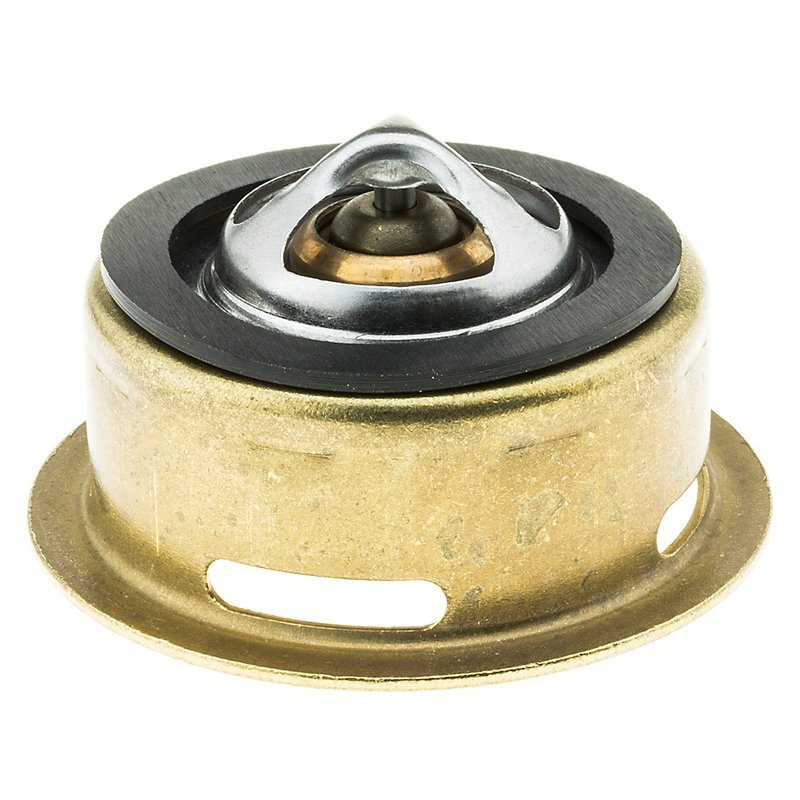

Motorad 245-180 Engine Coolant Thermostat

Motorad 245-180 Engine Coolant Thermostat

The Motorad 245-180 is a standard engine coolant thermostat built to OE specifications for stable temperature control in demanding cooling systems. It uses a copper case and wax compound for quick reaction to coolant temperature changes, with an offset design and air relief valve where applicable.

Compatible with select Toyota Land Cruiser and Toyota Pickup applications, this 180°F thermostat supports consistent warm-up and operating temperature control. The Motorad Standard line focuses on OE-style fit and function for direct replacement service.

Key Features

• 180°F start-to-open temperature for factory-style cooling system operation
• OE-quality materials and manufacturing processes
• Copper case and wax compound for rapid temperature response
• Standard thermostat design with O-ring seal type
• Offset design and air relief valve included where applicable
• Sealing flange outside diameter: 2.89 in.
• Height between flanges: 1.08 in.; overall height: 1.54 in.
• Flange thickness: 0.08 in.

Detailed Description

Motorad 245-180 is an engine coolant thermostat engineered for OE-style replacement in Toyota cooling systems. The 180-degree opening temperature helps regulate coolant flow so the engine reaches and maintains its intended operating range. Its copper case and wax element are selected for responsive temperature control, while the standard form factor and O-ring seal support proper housing fitment.

This part cross-references Gates 24580 for the same application. It is a direct-fit option for select Toyota Land Cruiser and Toyota Pickup models, including Fits 1969-1980 Toyota Land Cruiser, N/A; Fits 1981-1984 Toyota Land Cruiser, N/A; Fits 1985-1992 Toyota Land Cruiser, N/A; Fits 1986 Toyota Land Cruiser, N/A; and Fits 1970 Toyota Pickup, N/A.

What It Helps Address

• Engine running too cool or taking too long to warm up
• Temperature swings caused by a worn thermostat
• Restricted coolant flow from a sticking thermostat
• Cooling system performance issues in Toyota Land Cruiser and Toyota Pickup applications
• Replacement needs for a 180°F OE-style thermostat

Installation Notes and Tips

Verify housing condition and clean the sealing surfaces before installation. This thermostat uses an O-ring seal type and does not include a gasket or seal. Confirm the 180°F specification matches the vehicle’s cooling system requirements before service.

Quality Assurance

Motorad manufactures this thermostat to OEM quality materials and safety standards as an OE supplier, using OEM specifications and processes for consistent replacement performance.
