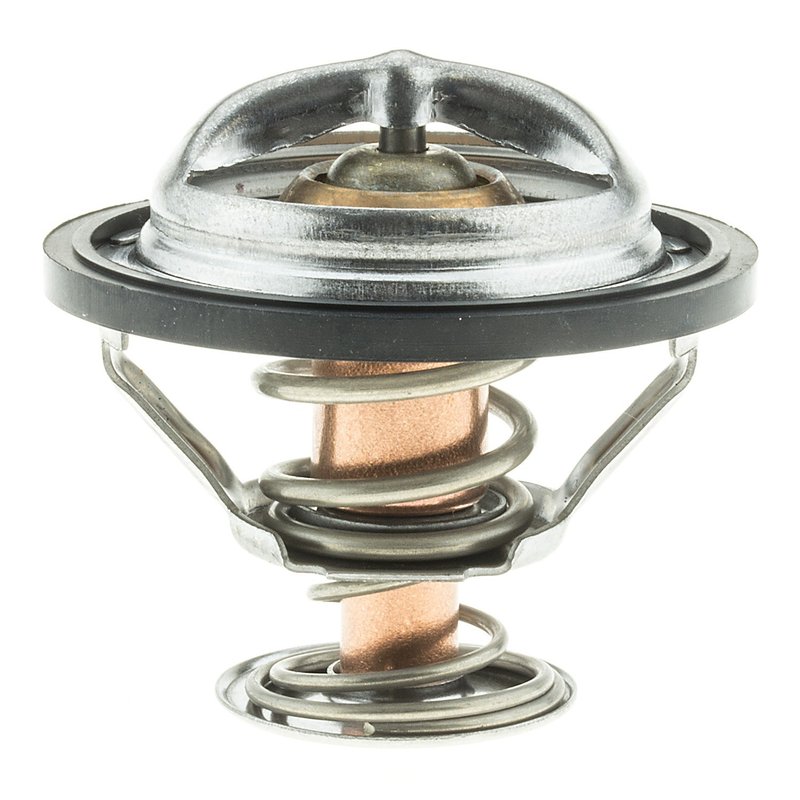

Motorad 307-180 Engine Coolant Thermostat

180F Engine Coolant Thermostat for OE-Style Cooling Control

The Motorad Standard 307-180 engine coolant thermostat is built for precise temperature control in demanding cooling systems. It uses OEM-quality materials, an OE-supplier manufacturing process, and a copper case with wax compound for quick reaction to coolant temperature changes.

Compatible With 1992-1997 Chevrolet Camaro, 1992-1996 Chevrolet Corvette, 1994-1996 Chevrolet Caprice, 1994-1996 Chevrolet Impala, 1993-1997 Pontiac Firebird, 1994-1996 Buick Roadmaster, 1993-1996 Cadillac Commercial Chassis, and 1993-1996 Cadillac Fleetwood applications that call for a 180F standard thermostat with seal.

Key Features

• Motorad Standard line thermostat for OE-style replacement service
• Start-to-open temperature: 180°F
• Copper case and wax compound for responsive coolant temperature control
• Offset design with air relief valve
• OEM-style seals included where applicable
• Gasket/seal included; O-ring seal type with rubber material
• Jiggle pin weep hole for air bleeding during service
• Sealing flange outside diameter: 2.13 in.
• Height: 2.16 in.; height between flanges: 1.51 in.
• Bypass diameter: 1.18 in.; bypass length: 1.45 in.

Product Details

Motorad 307-180 is a standard engine coolant thermostat engineered to open at 180 degrees Fahrenheit and help regulate coolant flow through the engine. The OE-style construction, copper case, and wax element are selected to react quickly to temperature changes, while the offset design and air relief valve support proper cooling-system operation. This part cross-references Carlson 14218 for the same application.

For drivers searching for a 180F thermostat with seal for Chevrolet Camaro, Pontiac Firebird, or Chevrolet Corvette cooling system service, this thermostat provides the dimensions and sealing features needed for a direct-fit style replacement where specified by the vehicle application.

Common Cooling Issues It Can Address

• Engine running cooler or warmer than the specified operating range
• Delayed coolant circulation after cold start
• Temperature fluctuation caused by a worn thermostat element
• Cooling-system service where the original thermostat seal is no longer sealing properly
• Air trapped in the cooling system after thermostat replacement

Installation Notes and Tips

Verify the thermostat temperature rating, flange dimensions, and bypass measurements against the original part before installation. Clean the housing mating surfaces thoroughly and replace the seal supplied with the thermostat. The jiggle pin weep hole should be positioned to help air escape during filling, and the cooling system should be refilled and bled according to the vehicle service procedure.

Quality Assurance

Motorad manufactures this thermostat with OEM-quality materials and processes as an OE supplier, using specifications intended to meet the demands of automotive cooling systems. The Standard line focuses on dependable OE-style fit and temperature control for service replacement applications.
