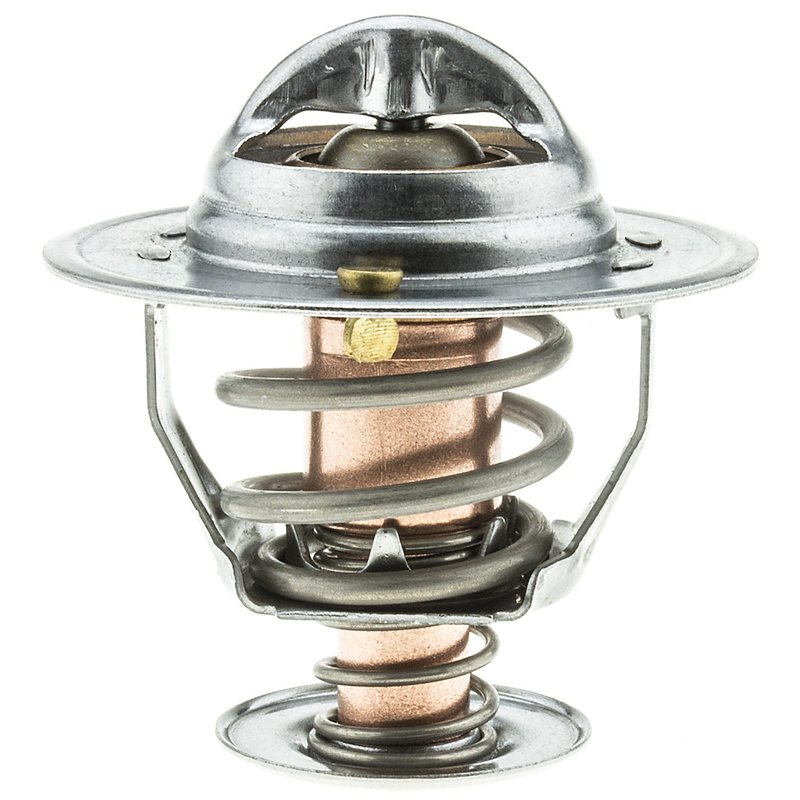

Motorad 328-180 Engine Coolant Thermostat

180F Engine Coolant Thermostat for Honda and Acura

The Motorad Standard 328-180 engine coolant thermostat is built for OE-style temperature control in Honda and Acura cooling systems. It opens at 180 degrees F and uses a copper case with wax compound for quick response to coolant temperature changes.

Motorad Standard focuses on direct-fit thermostat construction with OEM specifications and processes. For applications such as Honda Civic, Honda HR-V, Acura ILX, and Acura EL, this 180F thermostat supports stable engine operating temperature and consistent coolant flow control.

Key Features

• Start-to-open temperature: 180 degrees F
• Copper case and wax compound for responsive temperature regulation
• Jiggle pin weep hole included for air relief where applicable
• Offset design for OE-style fitment
• OEM-style seals used where applicable
• Standard thermostat design for factory cooling system service
• Part number: 328-180

Detailed Description

The Motorad 328-180 is an engine coolant thermostat engineered to match OE temperature control requirements. Its 180F opening point is appropriate for vehicles that call for a standard 180F OEM engine coolant thermostat, including select Honda Civic, Honda HR-V, Acura ILX, and Acura EL applications. The thermostat’s copper case and wax element are built to react quickly as coolant temperature rises and falls, helping maintain proper engine warm-up and operating temperature.

This Standard line thermostat is manufactured to OEM specifications and processes, with an offset design and air relief feature where applicable. The sealing flange outside diameter measures 2.05 in, height between flanges is 1.54 in, overall height is 2.2 in, and flange thickness is 0.05 in. Bypass dimensions are 1.09 in diameter and 1.41 in length.

This part cross-references Anchor 3188 and Carlson 15188 for the same application. Part number 328-180 is also listed under common interchange references for thermostat replacement searches.

What It Helps Address

• Engine running too cool or taking too long to reach operating temperature
• Temperature fluctuation caused by a worn thermostat
• Coolant flow control issues in the thermostat housing circuit
• Air trapped in the cooling system during service
• OE thermostat replacement needs on Honda Civic and Honda HR-V models

Installation Notes and Tips

Verify the 180F temperature specification and housing dimensions before installation. This thermostat does not include a gasket or seal, and no installation tool is included. Inspect the thermostat housing, sealing surfaces, and coolant condition during service, and confirm the jiggle pin orientation matches the vehicle’s cooling system requirements.

Compatible With 2006-2015 Honda Civic, 2016-2021 Honda HR-V, 2022 Honda HR-V, 2013-2015 Acura ILX, and 1997-2005 Acura EL. Use the vehicle’s OE thermostat specification to confirm application before replacement.

Quality Assurance

Motorad manufactures this Standard thermostat with OEM-quality materials and safety standards as an OE supplier. It is produced to OEM specifications for use in demanding automotive cooling systems.
