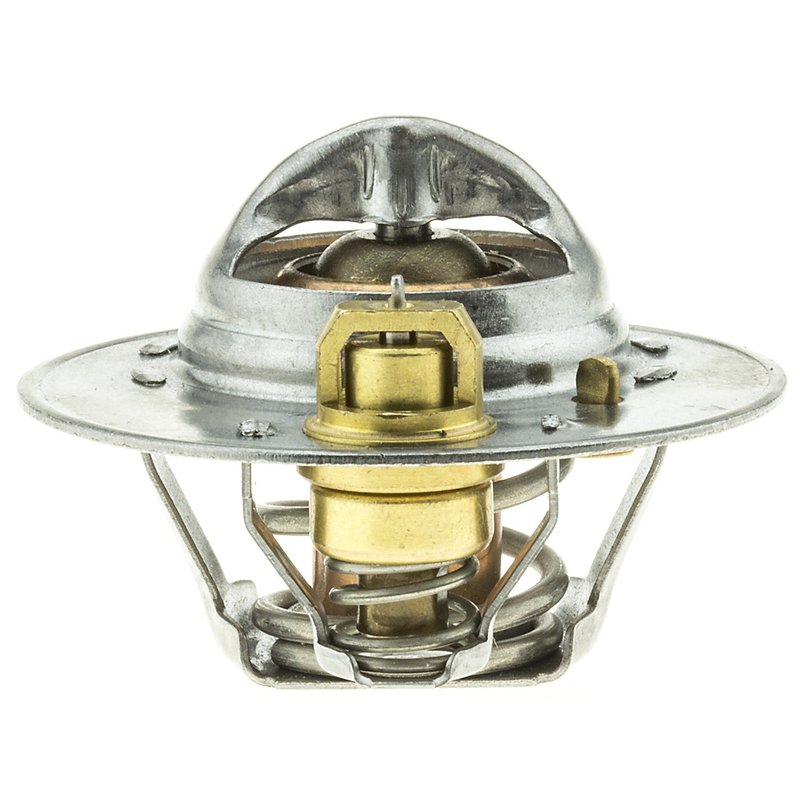

Motorad 414-192 Engine Coolant Thermostat

Engine Cooling Thermostat for OE-Style Temperature Control

The Motorad Standard 414-192 engine coolant thermostat is built for precise coolant temperature regulation in demanding cooling systems. It opens at 192 degrees F and is specified for a range of Mazda and Kia applications, including Mazda Miata, Mazda Protege, Mazda MX-3, Mazda 323, and Kia Sportage.

Motorad Standard focuses on OE-style replacement parts with OEM specifications and processes. The 414-192 uses a copper case and wax compound for quick reaction to coolant temperature changes, along with an offset design and air relief valve where applicable.

Key Features

• Start-to-open temperature: 192 degrees F
• Standard thermostat design for OE-style cooling system service
• Copper case and wax compound for responsive temperature control
• Jiggle pin weep hole included for air bleeding
• Offset design and OEM-style seals where applicable
• Sealing flange outside diameter: 2.05 in
• Height between flanges: 1.05 in
• Overall height: 1.5 in
• Flange thickness: 0.04 in
• Gasket or seal included: No

Detailed Description

Motorad 414-192 is an engine coolant thermostat engineered to match OE specifications for vehicles that require a 192F opening temperature. It is a direct service part for applications such as 1990-1997 Mazda Miata, 1990-2000 Mazda Protege, 1992-1996 Mazda MX-3, 1986-1994 Mazda 323, 1999-2000 Mazda Miata, and 1995-2002 Kia Sportage. This part cross-references 41492 and 9414192 for the same application.

As part of the Motorad Standard line, this thermostat is positioned as a straightforward OE-style replacement for routine cooling system maintenance. The design supports consistent coolant flow control in Mazda and Kia engines that call for a 192 degree thermostat, including Mazda Miata and Mazda Protege service applications.

What This Thermostat Helps Address

• Engine running too cool or too warm due to thermostat wear
• Delayed coolant circulation after cold starts
• Temperature fluctuation in the cooling system
• Cooling system service on Mazda Miata, Mazda Protege, Mazda MX-3, Mazda 323, and Kia Sportage applications
• Replacement of a thermostat specified for 192F operation

Installation Notes and Tips

Verify the OE temperature specification before installation and confirm housing dimensions match the application. The jiggle pin weep hole helps with air relief during filling, and the offset design should be oriented to match the original thermostat layout. Because no gasket or seal is included, reuse only if the existing seal is serviceable or install the correct replacement seal for the vehicle.

Quality Assurance

Motorad manufactures this thermostat with OEM-quality materials and processes as an OE supplier. The copper case and wax compound are selected for reliable response to coolant temperature changes, and the part is built to meet the demands of standard automotive cooling system service.
