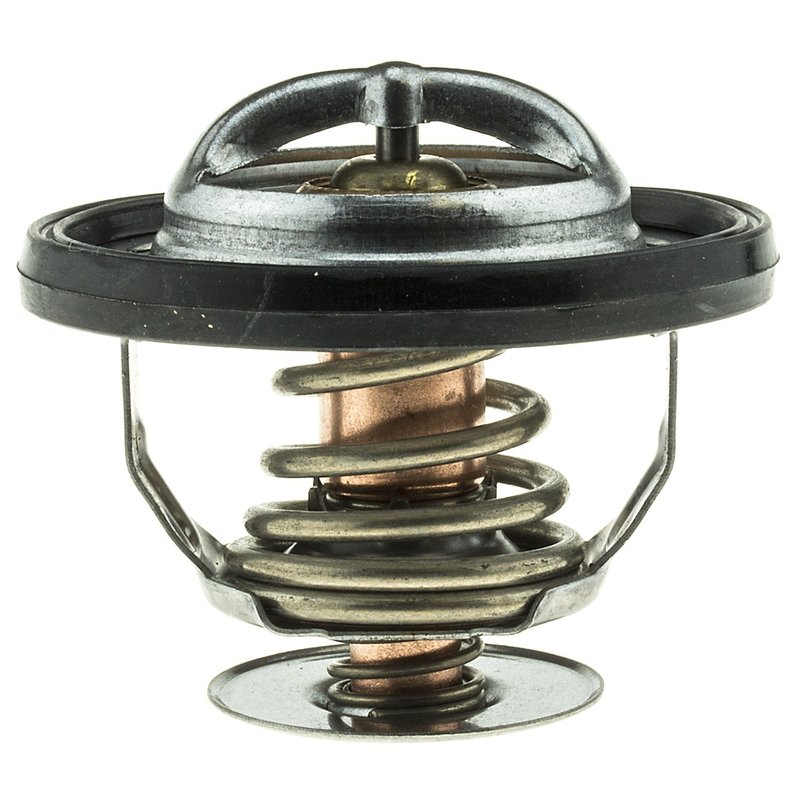

Motorad 416-192 Engine Coolant Thermostat

Overview of Motorad Standard Engine Coolant Thermostat 416-192

The Motorad Standard Engine Coolant Thermostat 416-192 is designed to regulate engine temperature efficiently in select Chrysler, Dodge, Jeep, and Ram vehicles. This thermostat ensures proper coolant flow and engine performance by opening at 192 degrees Fahrenheit, maintaining optimal operating conditions.

• Sealing flange outside diameter: 2.5 inches
• Includes a rubber gasket for secure sealing
• Equipped with a jiggle pin weep hole for air release
• Bypass diameter of 1.38 inches and bypass length of 1.52 inches
• Flange thickness measures 0.05 inches
• Single rubber seal included
• Temperature rating: 192°F

Detailed Product Description

The Motorad Standard 416-192 thermostat is engineered to meet the cooling system requirements of various Chrysler, Dodge, Jeep, and Ram models, including the 300, 1500 Classic, Challenger, Charger, Grand Cherokee, and Wrangler. Its 2.5-inch sealing flange outside diameter and 0.05-inch flange thickness provide a precise fit to prevent leaks. The included rubber gasket ensures a reliable seal between the thermostat housing and engine block. The jiggle pin weep hole allows trapped air to escape, reducing the risk of overheating and improving coolant circulation. The bypass diameter and length are optimized to maintain proper coolant flow during thermostat operation, supporting consistent engine temperature regulation at 192 degrees Fahrenheit.

About the Motorad Standard Product Line

The Standard line from Motorad offers dependable replacement parts designed to meet OEM specifications. This product line focuses on delivering quality components that maintain engine cooling system integrity without additional installation tools. The 416-192 thermostat exemplifies this approach by providing essential features such as a rubber gasket and jiggle pin weep hole, ensuring compatibility and performance for the specified vehicle applications.

Applications and Common Issues Addressed

• Prevents engine overheating by regulating coolant flow
• Eliminates coolant leaks with a secure rubber gasket seal
• Reduces air pockets in the cooling system via the jiggle pin weep hole
• Maintains consistent engine temperature at 192°F
• Supports proper bypass flow to avoid coolant circulation problems

Installation Notes and Tips

This thermostat does not include an installation tool, so ensure you have the appropriate tools for removal and installation. Clean the thermostat housing surface thoroughly before installing the new gasket to prevent leaks. Verify the thermostat orientation matches the original part, especially the jiggle pin weep hole position, to allow proper air venting. Torque bolts to manufacturer specifications to avoid flange damage.

Quality Assurance and Warranty

Motorad Standard thermostats are manufactured to meet industry standards for durability and performance. The 416-192 thermostat includes a rubber gasket to enhance sealing reliability. While specific warranty details are not provided, Motorad products typically adhere to quality control processes to ensure consistent fit and function for Chrysler, Dodge, Jeep, and Ram vehicles.
