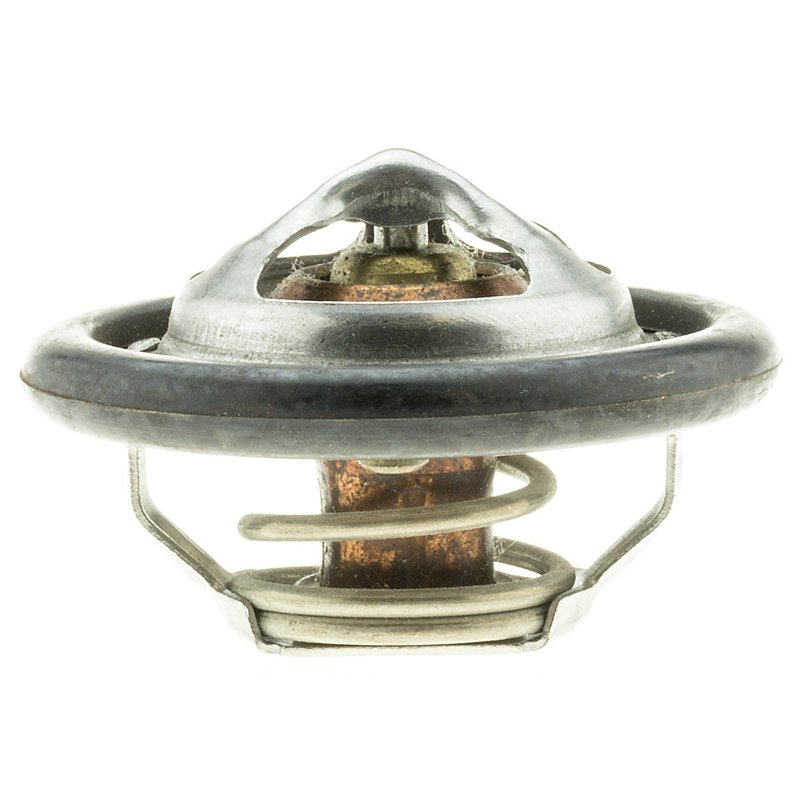

Motorad 445-192 Engine Coolant Thermostat

Reliable Engine Coolant Thermostat for Suzuki Vitara

The Motorad Standard 445-192 engine coolant thermostat is designed to maintain optimal engine temperature for Suzuki Vitara models. Engineered with precise specifications, this thermostat ensures efficient coolant flow and temperature regulation to support engine performance.

• Sealing flange outside diameter: 2.05 inches
• Height between flanges: 1.00 inch
• Overall height: 1.43 inches
• Standard type thermostat with jiggle pin weep hole
• Start to open temperature: 192°F
• Flange thickness: 0.05 inches
• Includes rubber O-ring gasket for secure sealing
• One seal included for reliable installation

About the Motorad Standard Product Line

The Motorad Standard line offers dependable engine cooling components designed to meet OEM specifications. This line focuses on delivering consistent performance and fitment for a range of vehicles, including the Suzuki Vitara. The 445-192 thermostat from the Standard line provides a balance of quality and compatibility for routine maintenance and replacement needs.

Product Details and Specifications

This engine coolant thermostat features a 192°F start to open temperature, which helps regulate the coolant flow to maintain the engine within its optimal operating range. The thermostat includes a jiggle pin weep hole to allow air to escape from the cooling system, reducing the risk of overheating. The sealing flange measures 2.05 inches in diameter with a flange thickness of 0.05 inches, ensuring a precise fit. The included rubber O-ring gasket provides a secure seal to prevent coolant leaks, and the overall height of 1.43 inches supports proper installation within the cooling housing.

Compatible Vehicles and Common Applications

• Compatible with Suzuki Vitara models requiring a 192°F thermostat
• Helps resolve engine overheating issues caused by faulty thermostats
• Prevents coolant leaks with included rubber O-ring seal
• Addresses inconsistent engine temperature regulation
• Replaces worn or damaged thermostats to restore cooling system efficiency

Installation Notes and Tips

Ensure the cooling system is fully drained before removing the old thermostat. Clean the housing surface thoroughly to provide a smooth sealing area for the new rubber O-ring gasket. Verify the jiggle pin is positioned correctly to allow air to escape during initial engine warm-up. Tighten the thermostat housing bolts to manufacturer torque specifications to avoid leaks. No special installation tools are included with this part.

Quality Assurance and Warranty

The Motorad Standard 445-192 thermostat is manufactured to meet industry standards for durability and performance. It includes a high-quality rubber gasket and O-ring seal to ensure leak-free operation. While specific warranty details are not provided, Motorad products typically adhere to strict quality control processes to support reliable engine cooling system function.
