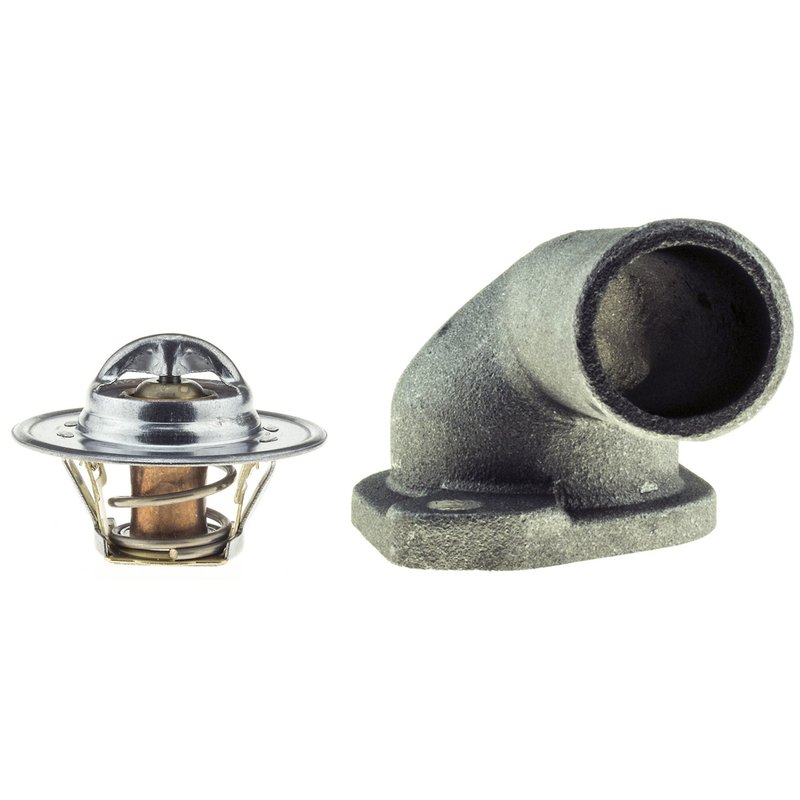

Motorad 4811KTFS Engine Coolant Thermostat Housing Assembly

Motorad 4811KTFS Thermostat Housing Kit

Motorad 4811KTFS is an engine coolant thermostat housing assembly kit built for OE-style cooling system service. It combines a steel, stainless steel, copper, and paper construction with an included paper gasket to support a secure seal and consistent coolant flow control.

Key Features

• Engine coolant thermostat housing assembly with gasket/seal included
• OE supplier manufacturing with OEM quality materials and processes
• Copper case and wax compound for quick response to coolant temperature changes
• Silver finish with 2-bolt housing design
• 1 outlet port, 1.3 in outlet diameter, and 192 Deg. F temperature rating
• Compatible With 1984-1992 Chevrolet Corvette, Camaro, Monte Carlo, and El Camino applications listed below
• Compatible With 1985-1992 Pontiac Firebird applications listed below

Product Details

This Motorad Kit thermostat housing assembly is engineered for cooling system repairs where accurate temperature control matters. The housing uses OEM-specified materials and manufacturing processes, while the copper case and wax compound are built to react quickly as coolant temperature changes. The 192 Deg. F thermostat rating and included gasket make this a focused replacement for service on select Chevrolet and Pontiac applications, including Chevrolet Camaro, Pontiac Firebird, and Chevrolet Corvette.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Coolant temperature that runs higher or lower than expected
• Thermostat housing seepage at the sealing surface
• Erratic engine warm-up behavior after cooling system service
• Corrosion or wear at the original housing assembly
• Cooling system service needs on select Chevrolet Camaro, Corvette, Monte Carlo, El Camino, and Pontiac Firebird models

Installation Notes

Verify the 2-bolt pattern, 1.3 in outlet diameter, and 192 Deg. F temperature rating before installation. Clean the mating surfaces thoroughly and replace the gasket seal during service to help maintain a proper seal. Bolts are not included.

Quality Assurance

Manufactured by an OE supplier using OEM quality materials and safety standards, this thermostat housing assembly is built to meet OEM specifications and processes for cooling system service.
