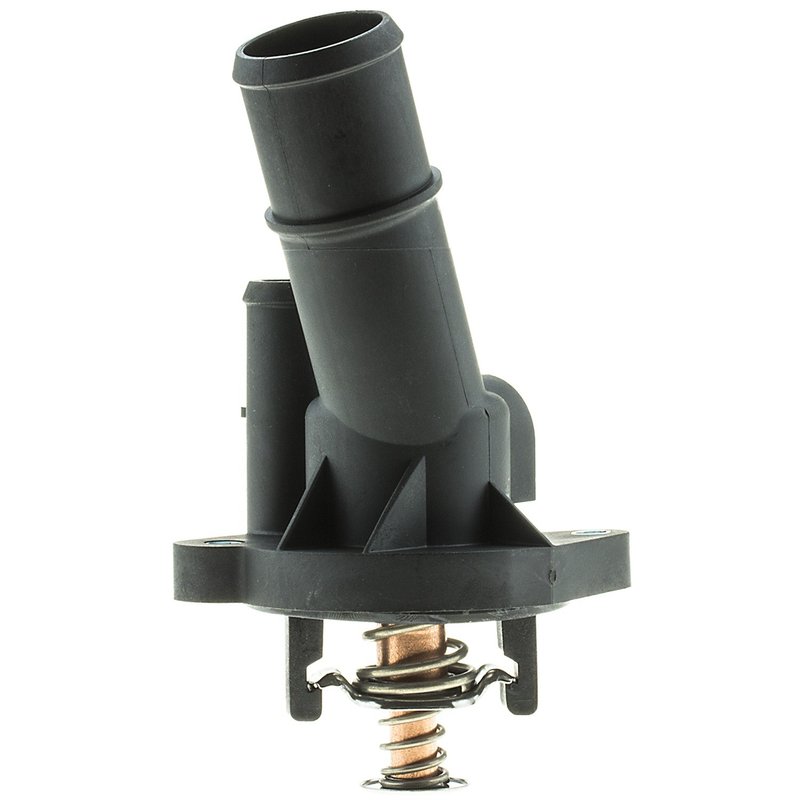

Motorad 514-195 Engine Coolant Thermostat Housing Assembly
| Brand | Motorad 514-195 |
|---|---|
| Bleeder Hole | Yes |
| Bolts Included | No |
| Color | Black |
| Gasket or Seal included | Yes |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Hardware included | No |
| Installation Tool Included | No |
| Jiggle Pin Included | Yes |
| Material | Plastic, Stainless Steel, Copper |
| Mounting Hardware Included | No |
| Number Of Bolt Holes | 3 |
| Number Of Outlet Ports | 2 |
| Number Of Seals | 1 |
| Opening Temperature | 195 |
| Outlet Diameter | 1.29 in, 0.73 in |
| Start to Open Temperature | 195 Deg. F |
| Temperature | 195 Deg. F |
| Temperature (Degree) | 195 |
| Product line | Integrated Housing Thermostat |
| Fits | Ford · 9 vehicles |
OE supplier quality. Built with OEM materials and processes for dependable cooling performance.
Rapid temperature response. Copper case and wax compound react quickly to coolant changes.
Complete sealing design. Includes a rubber seal, air relief valve, and jiggle pin where applicable.
Cross-references Dorman - OE Solutions 902-1071, Four Seasons 85981 and Motorad 514-195 for the same application. See all 9.
Integrated Housing Thermostat for Ford Cooling Systems
Motorad 514-195 is an integrated housing thermostat assembly built for Ford cooling system service where a 195 degree opening temperature is specified. It combines the thermostat, housing, and seal in one OE-style replacement for select Ford Focus and Ford Fiesta applications.
The Motorad Integrated Housing Thermostat line focuses on direct-fit cooling system service with OEM-style materials and sealing details. This 514-195 assembly uses a plastic housing with stainless steel and copper components, plus a rubber seal, to support consistent coolant flow control in the specified applications.
Key Features
- 195 degree opening temperature for OE-specified cooling control
- Integrated thermostat housing assembly for simplified replacement
- Bleeder hole and jiggle pin included for air management during service
- 3 bolt-hole housing design with 2 outlet ports
- Rubber gasket/seal included
- Black housing finish
- Plastic, stainless steel, and copper construction
- Motorad part number 514-195
Detailed Description
Motorad 514-195 is an engine coolant thermostat housing assembly engineered for Ford vehicles that require a 195F thermostat and integrated housing design. It is listed for 2011-2018 Ford Focus and 2008 Ford Fiesta, with fitment notes calling out the thermostat, housing, and seal configuration. The assembly uses a copper case and wax compound for responsive temperature control, along with OEM-style seals and an offset design where applicable. This part cross-references Dorman OE Solutions 902-1071 for the same application.
What This Part Helps Address
- Coolant temperature staying below the specified operating range
- Delayed engine warm-up after cold starts
- Thermostat housing leaks at the seal or mating surface
- Air trapped in the cooling system after service
- Cooling system service on Ford Focus and Ford Fiesta models with integrated housing design
Installation Notes and Tips
Verify the engine application and thermostat temperature before installation. Inspect the mating surfaces, replace worn hoses or clamps as needed, and confirm the rubber seal seats evenly in the housing. Use proper coolant fill and bleed procedures so the bleeder hole and jiggle pin can help purge trapped air from the system.
Compatible With 2011-2018 Ford Focus and 2008 Ford Fiesta, this Motorad 514-195 thermostat housing assembly is a direct-fit service part for the listed applications.
Quality Assurance
Manufactured by an OE supplier using OEM-quality materials and processes, this thermostat housing assembly is built to meet the demands of modern automotive cooling systems. Motorad 514-195 is produced to OEM specifications for the listed Ford applications.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2018 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2017 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2016 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2015 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2014 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2013 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2012 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2011 | Ford | Focus | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; OE Specified Temperature; Integrated Housing Thermostat |
| 2008 | Ford | Fiesta | 2.0L | L4 | N/A | Temperature 195F; Includes thermostat, housing, and seal; Higher Alternate Temperature Replacement; Integrated Housing Thermostat |
