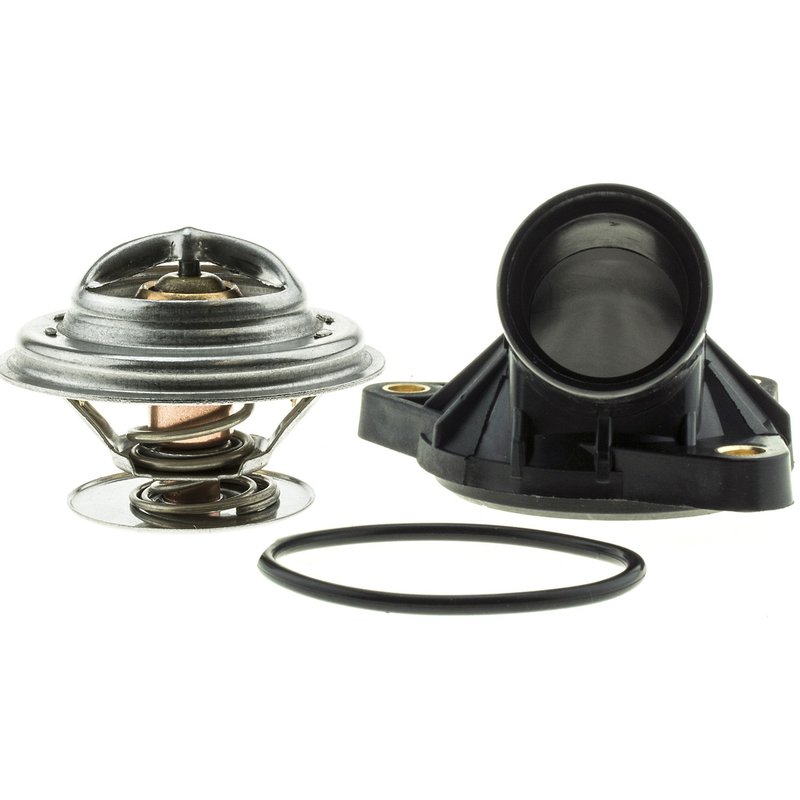

Motorad 5172KTFS Engine Coolant Thermostat Housing Assembly
| Brand | Motorad 5172KTFS |
|---|---|
| Bolt Hole Quantity | 3 |
| Bolts Included | No |
| Color | Black, silver |
| Flange Diameter | 2.64 in |
| Flange Thickness | 0.05 in |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Jiggle Pin Included | No |
| Material | Plastic, stainless steel, copper, rubber |
| Number Of Gaskets | 0 |
| Number Of Outlet Ports | 1 |
| Outlet Diameter | 1.51 in |
| Temperature | 192 deg. f |
| Thermostat Temp (F) | 192 |
| Product line | Kit |
| Fits | Ford and Mercury · 11 vehicles |
OE-spec cooling control. 192°F thermostat temperature matches factory-style coolant regulation.
Fail-Safe thermostat. Built for responsive temperature changes in demanding cooling systems.
OE supplier construction. Made to OEM specifications with copper, stainless steel, plastic, and rubber.
Cross-references Motorad 5172KTFS and 95172KTFS for the same application. See all 2.
Engine Coolant Thermostat Housing Assembly
Motorad 5172KTFS is an engine coolant thermostat housing assembly built for OE-spec cooling system service. It combines a 192°F Fail-Safe thermostat with a water outlet and seal for direct replacement use on select Ford and Mercury applications.
Key Features
- 192°F thermostat temperature for OE-specified coolant control
- Fail-Safe thermostat design for added protection in demanding cooling systems
- Housing constructed from plastic, stainless steel, copper, and rubber
- Three-bolt flange design with one outlet port
- Rubber gasket/seal material for sealing at the housing interface
- Manufactured to OEM specifications and processes by an OE supplier
Product Details
This Motorad Kit product line focuses on thermostat housing assemblies that match factory cooling-system requirements. Part number 5172KTFS uses a copper case and wax compound for responsive temperature control, while the housing materials are selected to meet OEM quality standards. It is a practical replacement for drivers servicing a Ford Explorer, Ford Explorer Sport Trac, Ford Ranger, or Mercury Mountaineer with the specified 192°F application.
This part cross-references Monroe Shocks & Struts (e.g., 95172KTFS) for the same application.
Common Cooling Issues Addressed
- Engine running cooler or hotter than the specified thermostat range
- Cracked or worn thermostat housing on the coolant outlet side
- Coolant seepage at the housing seal surface
- Delayed thermostat response during temperature changes
- Service replacement for OE-style cooling system maintenance
Installation Notes
Verify the 192°F temperature specification and outlet configuration before installation. This assembly uses a three-bolt flange and a rubber seal interface; confirm the mating surface is clean and free of old gasket material. Bolts are not included, and no jiggle pin is provided.
Quality Assurance
Motorad manufactures this thermostat housing assembly with OEM-quality materials and safety standards as an OE supplier. It is produced to OEM specifications and processes for use in demanding automotive cooling systems.
| Year | Make | Model | Liters | Cylinders | Notes |
|---|---|---|---|---|---|
| 2001 | Ford | Explorer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 2001 | Ford | Explorer Sport Trac | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; To 07/24/2000; OE Specified Temperature; Kit |
| 2001 | Ford | Ranger | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 2001 | Mercury | Mountaineer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 2000 | Ford | Explorer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 2000 | Mercury | Mountaineer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 1999 | Ford | Explorer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 1999 | Mercury | Mountaineer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 1998 | Ford | Explorer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 1998 | Mercury | Mountaineer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
| 1997 | Ford | Explorer | 4.0L | V6 | Temperature 192F; Includes water oulet, Fail-Safe thermostat and seal; OE Specified Temperature; Kit |
