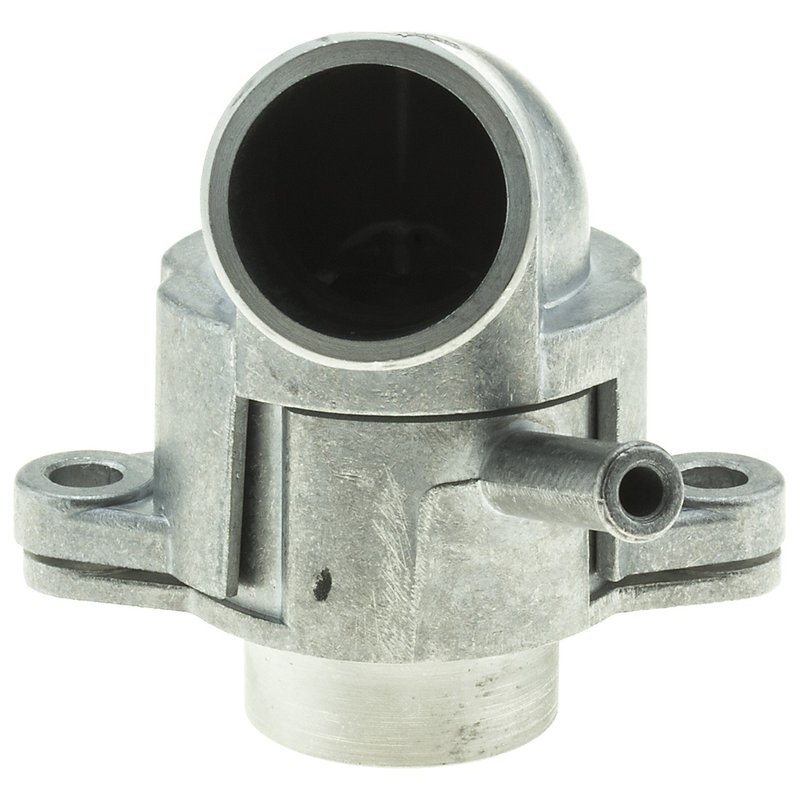

Motorad 582-192 Engine Coolant Thermostat Housing Assembly

Integrated Housing Thermostat for OE Cooling Control

Motorad Integrated Housing Thermostat 582-192 is an engine coolant thermostat housing assembly built for OE-style cooling system service. It combines the thermostat, housing, and seal in one replacement unit for direct service on select Chevrolet Aveo, Aveo5, Pontiac G3, Pontiac Wave, and Suzuki Swift+ applications.

The Integrated Housing Thermostat line is Motorad’s OE-focused thermostat housing solution, using OEM specifications and processes to match factory cooling system requirements. This 192-degree thermostat assembly uses a copper case and wax compound for quick response to coolant temperature changes, along with an offset design and OEM-style sealing where applicable.

• Engine coolant thermostat housing assembly for cooling system repair
• 192 Deg. F opening temperature for OE-specified thermal control
• Includes thermostat, housing, and rubber seal
• Silver housing with aluminum, stainless steel, and copper construction
• 2 bolt holes and 2 outlet ports
• OE supplier manufacturing with OEM quality materials and safety standards
• Motorad 582-192 replacement for select compact GM and Suzuki applications

Detailed Product Overview

Motorad 582-192 is built for vehicles that use an integrated thermostat housing design, where the thermostat and housing are serviced together. The 192-degree calibration supports factory cooling strategy, while the copper wax-element construction helps the thermostat react promptly as coolant temperature rises and falls. This makes it a practical replacement for drivers servicing a Chevrolet Aveo thermostat housing assembly, Chevrolet Aveo5 coolant thermostat housing, Pontiac G3 thermostat housing, Pontiac Wave thermostat housing, or Suzuki Swift+ thermostat housing.

This part cross-references Dorman - OE Solutions 902-109 for the same application.

Common Cooling System Issues It Can Address

• Engine running cooler or warmer than specified by the factory thermostat rating
• Coolant leaks at the thermostat housing or seal interface
• Cracked, warped, or aging integrated housing components
• Temperature fluctuation caused by a worn thermostat element
• Service needs on OE-style cooling systems that use a combined housing assembly

Installation Notes and Fitment

Compatible With 2004-2018 Chevrolet Aveo, N/A; temperature 192F, includes thermostat, housing, and seal, OE specified temperature; Integrated Housing Thermostat. Compatible With 2006-2008 Chevrolet Aveo5, N/A; temperature 192F, includes thermostat, housing, and seal, OE specified temperature; Integrated Housing Thermostat. Compatible With 2007-2008 Pontiac G3, N/A; temperature 192F, includes thermostat, housing, and seal, OE specified temperature; Integrated Housing Thermostat. Compatible With 2005-2008 Pontiac Wave, N/A; temperature 192F, includes thermostat, housing, and seal, OE specified temperature; Integrated Housing Thermostat. Compatible With 2004-2008 Suzuki Swift+, N/A; includes thermostat, housing, and seal; Integrated Housing Thermostat.

Verify the outlet diameters, bolt-hole count, and seal condition before installation. This assembly uses 2 bolt holes, includes 1 rubber seal, and does not include bolts or mounting hardware. Clean the mating surfaces thoroughly and follow the vehicle service procedure for coolant refill and air bleeding after replacement.

Quality Assurance

Motorad manufactures this thermostat housing assembly with OEM-quality materials and OE-supplier production standards. The part is built to OEM specifications and processes for consistent fit and temperature control in demanding automotive cooling systems.
