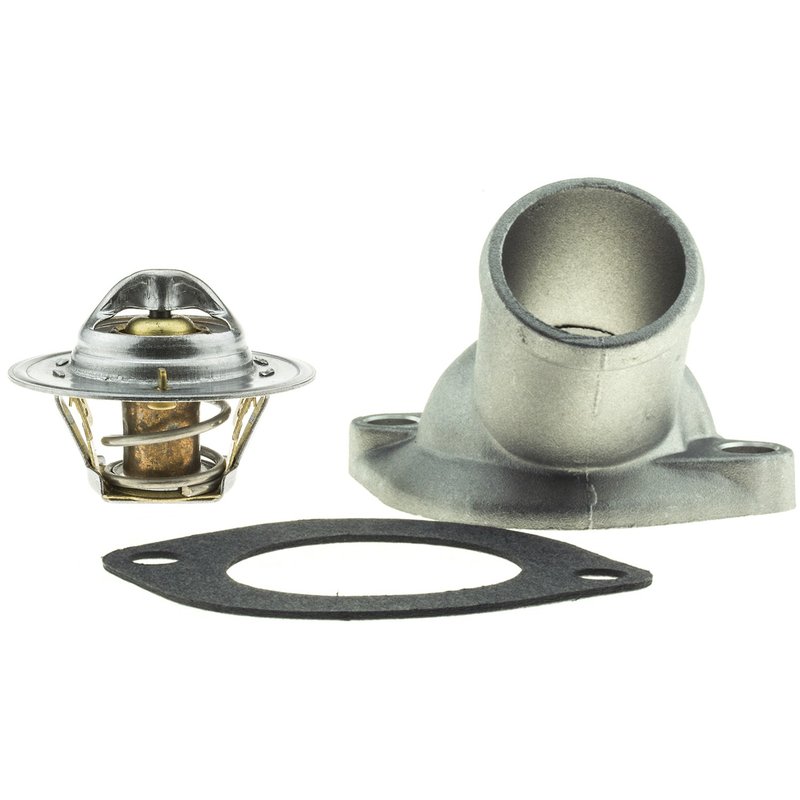

Motorad 6020KTFS Engine Coolant Thermostat Housing Assembly

Motorad 6020KTFS Thermostat Housing Assembly

The Motorad 6020KTFS engine coolant thermostat housing assembly is built for OE-style cooling system service on select Mazda trucks. It combines a steel, stainless steel, and copper housing with a 192°F thermostat, paper gasket material, and a jiggle pin for controlled coolant flow and quicker temperature response.

Compatible with 1986-1987 Mazda B2000 and 1987-1993 Mazda B2200 applications, this Motorad Kit line part is made to OE specifications and processes for direct-fit cooling system repair. The 6020KTFS is a practical choice when servicing a Mazda B2000 thermostat housing assembly or replacing a worn Mazda B2200 coolant thermostat housing.

Key Features

• Engine coolant thermostat housing assembly for select Mazda B2000 and Mazda B2200 models
• 192°F thermostat temperature rating for OE-specified cooling operation
• Housing constructed from steel, stainless steel, copper, and paper materials
• Single outlet port with 1.36 in outlet diameter
• 2.05 in flange diameter and 0.05 in flange thickness
• Jiggle pin included for improved air bleeding during service
• Silver finish
• Motorad part number 6020KTFS

Product Details

Motorad’s Kit line focuses on thermostat housing assemblies built to OE supplier standards, using OEM-quality materials and manufacturing processes. The copper case and wax compound are engineered for fast reaction to coolant temperature changes, helping the thermostat open and close at the specified 192°F operating point. This part cross-references 96020KTFS for the same application.

Common Repair Uses

• Replacing a cracked or corroded thermostat housing
• Restoring proper coolant temperature control
• Addressing overheating caused by a sticking thermostat assembly
• Repairing coolant leaks at the housing flange or outlet
• Servicing a Mazda B2000 or Mazda B2200 cooling system during routine maintenance

Installation Notes

Gasket or seal is not included, and bolts are not included. Verify the flange diameter, outlet diameter, and bolt hole count before installation. Clean the mating surfaces thoroughly and inspect the cooling system for contamination or scale before installing the new housing assembly. Confirm the 192°F temperature specification matches the vehicle’s OE requirement.

Quality Assurance

Manufactured by an OE supplier using OEM-quality materials and OE specifications, the Motorad 6020KTFS is built for dependable cooling system service in demanding operating conditions.
