OE Quality
60-Day Returns
Motorad

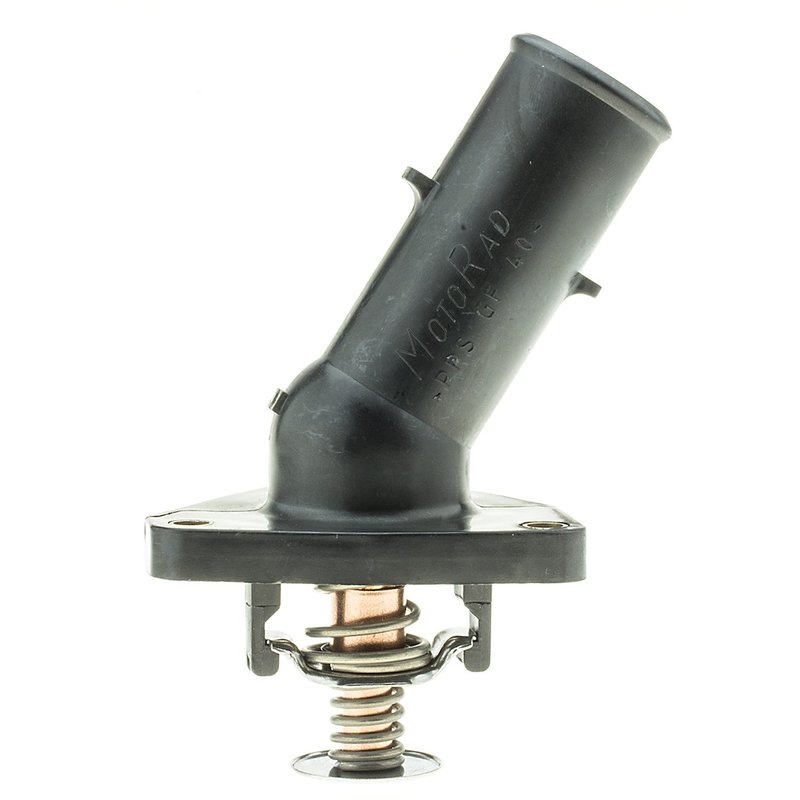

Integrated Housing ThermostatMotorad 634-180 Engine Coolant Thermostat Housing Assembly - Upper
| Brand | Motorad 634-180 |
|---|---|
| Position | Upper |
| Bleeder Hole | No |
| Bolts Included | No |
| Color | Black |
| Gasket or Seal included | Yes |
| Gasket/Seal Material | Rubber |
| Gasket/Seal Material | Rubber |
| Hardware included | No |
| Installation Tool Included | No |
| Jiggle Pin Included | No |
| Material | Plastic, Stainless Steel, Copper |
| Mounting Hardware Included | No |
| Number Of Bolt Holes | 3 |
| Number Of Outlet Ports | 1 |
| Number Of Seals | 1 |
| Opening Temperature | 180 |
| Outlet Diameter | 1.35 in |
| Start to Open Temperature | 180 Deg. F |
| Temperature | 180 Deg. F |
| Temperature (Degree) | 180 |
| Product line | Integrated Housing Thermostat |
| Fits | Toyota · 52 vehicles |
OE supplier quality. Built with OEM materials and processes for dependable cooling performance.
Rapid temperature response. Copper case and wax compound react quickly to coolant changes.
Seal included. Rubber gasket helps provide a secure, leak-resistant fit.
Cross-references Dorman - HELP 56348, Dorman - OE Solutions 902-5148 and Four Seasons 85952 for the same application. See all 15.
$38.36Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat Housing Assembly options
Integrated Thermostat Housing for Toyota Cooling Systems
Motorad 634-180 is an integrated housing thermostat assembly built to OE specifications for Toyota cooling systems. It combines the thermostat, housing, and seal in one service part for direct replacement on select Toyota 4Runner, Tacoma, FJ Cruiser, and Tundra applications.
The Motorad Integrated Housing Thermostat line focuses on OE-style fit and temperature control, using OEM-quality materials and manufacturing processes. This 180 degree thermostat housing assembly is built with a copper case and wax compound for quick response to coolant temperature changes, along with an offset design and OEM-style sealing where applicable.
- 180 degree Fahrenheit opening temperature
- Integrated thermostat, housing, and seal design
- Black housing with plastic, stainless steel, and copper construction
- 3 bolt holes and 1 outlet port
- Rubber gasket/seal included
- 1.35 in outlet diameter
- OE-style replacement for select Toyota cooling system service
Detailed Product Overview
Motorad 634-180 is an engine coolant thermostat housing assembly designed for direct-fit service on select Toyota models. It is engineered to meet OEM specifications and uses an OE supplier manufacturing approach for consistent fit and temperature regulation. The integrated housing format simplifies replacement on vehicles that use a combined thermostat and housing assembly, including Toyota 4Runner, Tacoma, FJ Cruiser, and Tundra applications.
This part cross-references Dorman OE Solutions 902-5148 for the same application. Motorad 634-180 is also referenced by other aftermarket and OE numbers used for the same Toyota cooling system fitment.
What This Part Helps Address
- Engine running too cool or too hot from a worn thermostat
- Coolant leaks at the thermostat housing or seal surface
- Delayed coolant flow control during warm-up
- Temperature fluctuation caused by aging thermostat components
- Service replacement for a cracked or deteriorated housing assembly
Installation Notes and Tips
Verify the vehicle uses an upper thermostat housing configuration before installation. Inspect the mating surface, replace damaged coolant hoses or clamps as needed, and confirm the rubber seal seats evenly before tightening the 3-bolt housing. Follow the vehicle service procedure for coolant refill and air bleeding after installation.
Quality Assurance
Manufactured with OEM-quality materials and safety standards by an OE supplier, this thermostat housing assembly is built to meet OEM specifications and processes for demanding automotive cooling systems. The copper case and wax compound are selected for responsive temperature control in normal service conditions.
This part fits 52 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2025 | Toyota | 4Runner | 2.4L | L4 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2024 | Toyota | 4Runner | 4.0L | V6 | N/A | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2023 | Toyota | 4Runner | 4.0L | V6 | Upper | Includes thermostat, housing, and seal; Integrated Housing Thermostat |
| 2022 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2021 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2020 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2019 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2018 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2017 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2016 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2015 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2015 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2014 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2014 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2014 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2014 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2013 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2013 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2013 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2013 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2012 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2012 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2012 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2012 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2011 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2011 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2011 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2011 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2010 | Toyota | 4Runner | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2010 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2010 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2010 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2009 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2009 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2009 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2009 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2008 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2008 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2008 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2008 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2007 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2007 | Toyota | FJ Cruiser | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2007 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2007 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2006 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2006 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2006 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2005 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2005 | Toyota | Tacoma | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2005 | Toyota | Tundra | 4.0L | V6 | Upper | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2004 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| 2003 | Toyota | 4Runner | 4.0L | V6 | N/A | 180F temperature thermostat housing assembly with seal and OE specifications.; Integrated Housing Thermostat |
| No rows match your filter. | ||||||
Directly replaces or cross-references 15 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Dorman - HELP — 56348Dorman - OE Solutions — 902-5148Four Seasons — 85952Genuine — 160310P010Motorad — 634-180NGK — 487781601-33523863480963418016031310101603131011HT180-436P63480QRT24TI24282
