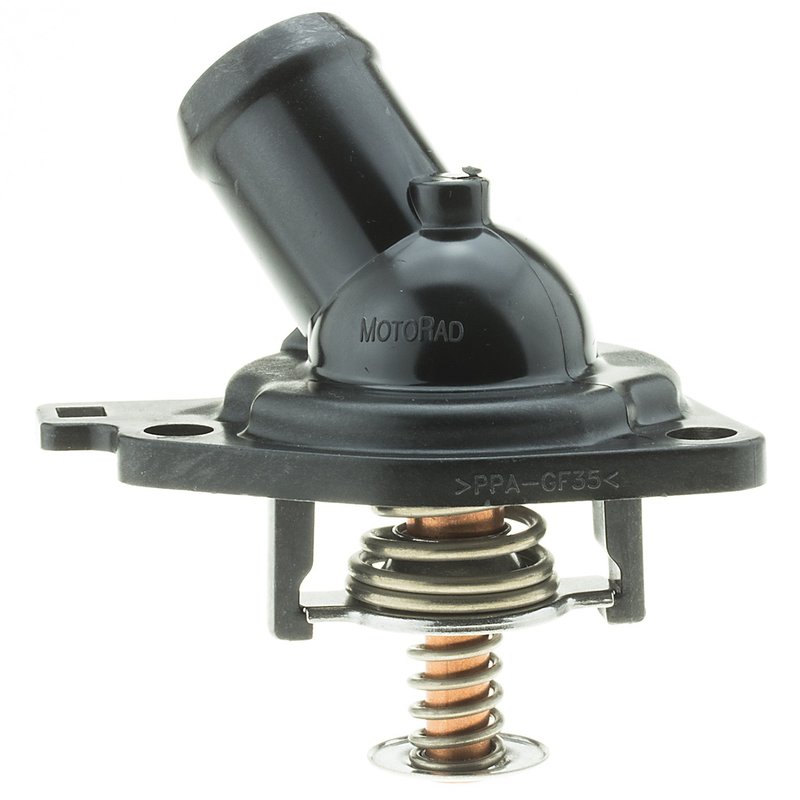

Motorad 636-170 Engine Coolant Thermostat Housing Assembly

Overview of Motorad Integrated Housing Thermostat 636-170

The Motorad Integrated Housing Thermostat 636-170 is designed for reliable engine temperature regulation in select Acura and Honda vehicles. This engine coolant thermostat housing assembly ensures precise temperature control to maintain optimal engine performance and prevent overheating.

• Compatible with Acura and Honda models including Civic, CR-V, CSX, ILX, and TSX
• Thermostat opening temperature at 170°F for accurate coolant flow regulation
• Constructed from durable plastic, stainless steel, and copper materials
• Includes a rubber gasket/seal for secure, leak-free installation
• Features 3 bolt holes and a single outlet port with a 1.26-inch diameter

Details on the Integrated Housing Thermostat Product Line

The Motorad Integrated Housing Thermostat line combines the thermostat and housing into a single assembly, simplifying installation and improving reliability. This design reduces potential leak points and streamlines coolant flow management. The 636-170 part number represents a precise fit for specific Acura and Honda models, ensuring compatibility and consistent engine temperature control.

Technical Description and Features

This engine coolant thermostat housing assembly is engineered with a 170°F opening temperature, activating coolant flow at the optimal point to maintain engine efficiency. The housing is made from a combination of plastic, stainless steel, and copper, providing strength and corrosion resistance. The included rubber gasket ensures a tight seal between the housing and engine block, preventing coolant leaks. The assembly features three bolt holes for secure mounting and a single outlet port with a 1.26-inch diameter to accommodate coolant flow.

Common Applications and Problem Resolution

• Regulates engine temperature to prevent overheating in Acura Civic and Honda CR-V models
• Replaces faulty or leaking thermostat housings in Honda CSX and Acura ILX vehicles
• Restores proper coolant flow in Honda TSX engines experiencing temperature fluctuations
• Eliminates coolant leaks caused by worn or damaged seals
• Improves engine warm-up time and overall thermal management

Installation Notes and Tips

Installation requires removal of the old thermostat housing assembly and cleaning of the mounting surface. The Motorad 636-170 does not include mounting hardware or bolts, so reuse existing bolts or acquire replacements as needed. Ensure the rubber gasket is properly seated to prevent leaks. No bleeder hole or jiggle pin is included, so bleeding the cooling system after installation is recommended to remove air pockets.

Quality Assurance and Warranty

Motorad manufactures the Integrated Housing Thermostat 636-170 to meet OEM specifications for fit and function. The use of durable materials such as stainless steel and copper enhances longevity and corrosion resistance. This part includes a rubber gasket for a reliable seal. Warranty information should be confirmed with the distributor or retailer, as it may vary by source.
